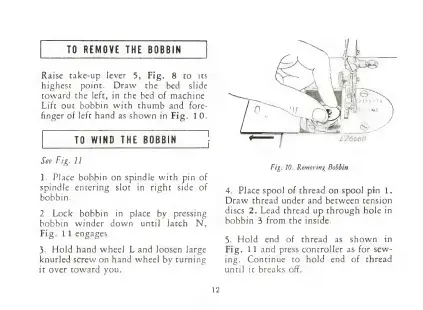

TO
REMOVE
THE
BOBBIN
Raise
take-up
lever
5,
Fig.
8
to
its
highest
point.
Draw
the
bed
slide
toward
the
left,
in
the
bed
of
machine
Lift
out
bobbin
with
thumb
and
fore-
finger
of
left
hand
as
shown
in
Fig.
10.
TO
WIND
THE
BOBBIN
'
See
Fig.
11
1.
Place
bobbin
on
spindle
with
pin
of
spindle
entering
slot
in
right
side
of
bobbin.
2.
Lock
bobbin
in
place
by
pressing
bobbin
winder
down
until
latch
N,
Fig.
11
engages.
3.
Hold
hand
wheel
L
and
loosen
large
knurled
screw
on
hand
wheel
by
turning
it
over
toward
you.
Fig.
10.
Removing
Bobbin
4.
Place
spool
of
thread
on
spool
pin
1.
Draw
thread
under
and
between
tension
discs
2.
Lead
thread
up
through
hole
in
bobbin
3
from
the
inside.
5.
Hold
end
of
thread
as
shown
in
Fig.
11
and
press
controller
as
for
sew-
ing.
Continue
to
hold
end
of
thread
until
it
breaks
off.
