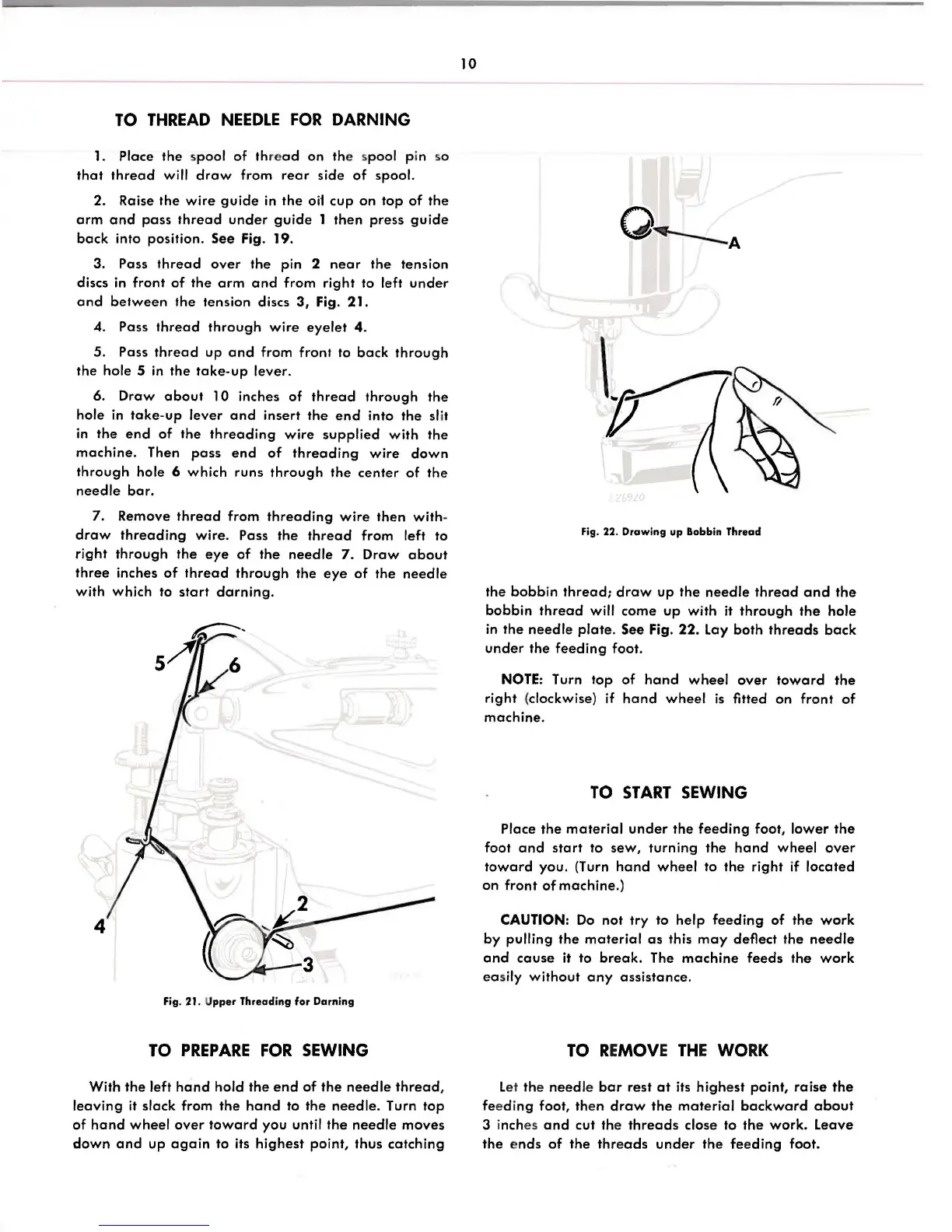

TO THREAD NEEDLE FOR DARNING
1. Place the spool of thr e ad on the spool pin so
that thread will draw from rear side of spool.
2. Raise the wire guide in the oii cup on top of the
arm and pass thread under guide 1 then press guide
back into position. See Fig. 19.
3. Pass
thread over the pin 2 near the tension
discs in front of the arm and from right to left under
and between the tension discs 3, Fig. 21.
4. Pass thread through wire eyelet 4.
5. Pass thread up and from front to back through
the hole 5 in the take-up lever.
6.
Draw about 10 inches of thread through the
hole in take-up lever and insert the end into the sl it
in the end of the threading wire supplied with the
machine. Then pass end of threading wire down
through hole 6 which runs through the center of the
needle bar.
7. Remove thread from threading wire then with -
draw threading wire. Pass the thread from left to
right through the eye of the needle 7. Draw about
three inches of thread through the eye of the needle
with which to start darning.
4
Fig. 21 . Upper Threading for Darning
TO PREPARE FOR SEWING
With the left hand hold the end of the needle thread,
leaving it slack from the hand to the needle. Turn top
of hand wheel over toward you until the needle moves
down and up again to its highest point, thus catching
10
o~A
Fig. 22. Drawing up Bobbin Thread
the bobbin thread; draw up the needle thread and the
bobbin thread will come up with it through the hole
in the needle plate. See Fig. 22. lay both threads back
under the feeding foot.
NOTE: Turn top of hand wheel over toward the
right (clockwise) if hand wheel is fitted on front of
machine.
TO START SEWING
Place the material under the feeding foot, lower the
foot and start to sew, turning the hand wheel over
toward you. (Turn hand wheel to the right if located
on front of machine.)
CAUTION: Do not try to help feeding of the work
by pulling the material as this may deflect the needle
and cause it to break. The machine feeds the work
easily without any assistance.
TO REMOVE THE WORK
le t the needle bar rest at its highest point, raise the
fee ding foot, then draw the material backward about
3 inch es and cut the threads close to the work. leave
the ends of the threads under the feeding foot.
