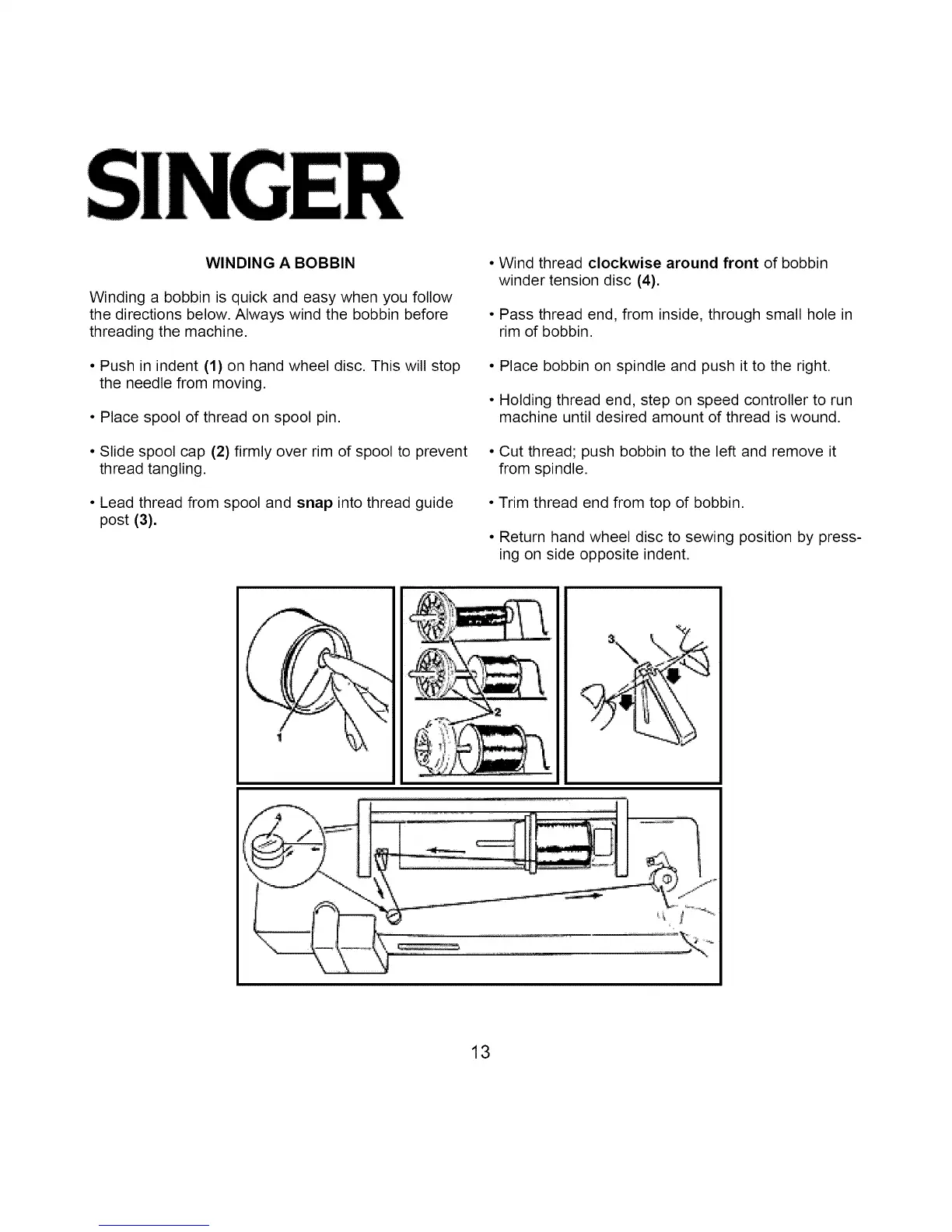

WINDING A BOBBIN
Winding a bobbin is quick and easy when you follow
the directions below. Always wind the bobbin before
threading the machine.
• Push in indent (1) on hand wheel disc. This will stop
the needle from moving.
• Place spool of thread on spool pin.
• Slide spool cap (2) firmly over rim of spool to prevent
thread tangling.
• Lead thread from spool and snap into thread guide
post (3).
• Wind thread clockwise around front of bobbin
winder tension disc (4).
• Pass thread end, from inside, through small hole in
rim of bobbin.
• Place bobbin on spindle and push it to the right.
• Holding thread end, step on speed controller to run
machine until desired amount of thread is wound.
• Cut thread; push bobbin to the left and remove it
from spindle.
• Trim thread end from top of bobbin.
• Return hand wheel disc to sewing position by press-
ing on side opposite indent.
13
