APPENDIX II : SYNSCAN SELF-DIAGNOSIS
The SynScan hand control contains a built-in self-diagnosis program. To run a full test, users
should prepare a “Loop-Test Plug” by referring to Appendix 3 and the following instructions:
• Short the pin-2 (TX_RS232C) and pin-5 (RX_RS232C) of a RJ-12 plug.
Here are the diagnosis steps:
1. Insert the “Loop-Test Plug” to the RJ-12 port of the SynScan hand control.
2. Press “2” and “5” simultaneously and power on the hand control.
3. The hand control will display “SynScan B.I.T.” for a short time.
4. The LCD will display “LCD CONTRAST x-yy“, press ENTER button to continue.
5. The LCD screen will become fully black and then fully clear for a while for the purpose of
checking the LCD display.
6. If there is any problem for the RS-232C function on multi-purpose port (the RJ-12 outlet)
or no Loop-Test Plug connected to the multi-purpose port, the screen will display “COM1
ERROR”. Press ENTER to continue.
7. Ignore “COM2 ERROR” message and press ENTER to continue.
8. If everything is ne, the testing will go to Step 9; Otherwise, the SynScan hand control will
show “EEPROM ERROR” or “Flash ERROR”. Press ENTER to continue in such case.
9. Check keypad and other features:
• The screen will display “Key=” in the top row. If a key is pressed, the name of the key
will be displayed.
• The power voltage will be displayed on the bottom row of the screen.
Supported Mount EQ Mount and Alt-Az Mount
Object Catalog Messier, NGC, IC, SAO, Caldwell,
Double Star, Variable Star,
Named Star, Planets
Pointing Accuracy Up to 5 arc-minutes RMS
Tracking Rate Sidereal Rate, Solar Rate, Lunar Rate
PEC SPEC or PPEC
Database 42000+ Objects
LCD 18 Characters X 2 Lines
Adjustable Contrast and Backlight
Keypad Rubber,
Adjustable backlight
GPS SynScan GPS Modular (Optional)
PC Connection RS-232C,
9600bps, No parity check, 8 data bits,
1 start bit, 1 stop bit
Power Supply DC 7.5 to 12V, 100mA
Power output on Multi-purpose port Power Supply Voltage - 0.7V
Maximum 100mA current output

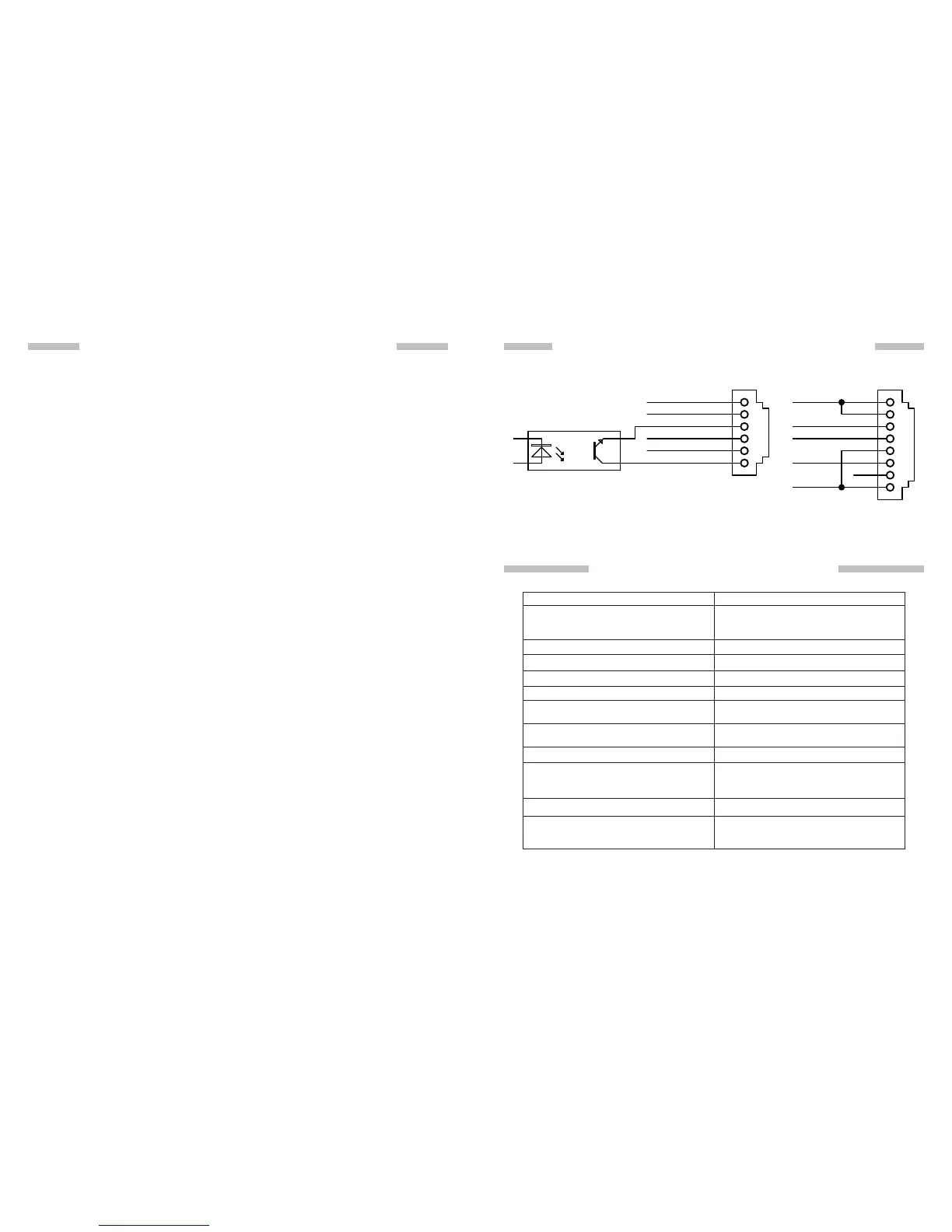

APPENDIX III : SCHEMATIC OF THE PORTS
APPENDIX IV : SPECIFICATIONS
2
3
4
1
5
6
7
8
Telescope Mount Port
GND
Vpp+
TX(TTL)
RX(TTL)
2
3
4
1
5
6
Multi-Purpose Port
GND
Vpp+
Optoisolator
DROP
RX(RS232C)
TX(RS232C)
COMMON
SHUTTER
