Install Faucet with
O-ring into the center hole
i
n deck or lavatory —
1-3/16" (30 mm) min.
hole required.
Note:
If installing the Faucet
on a three (3) hole sink, a
Trim Plate should be
installed at this time.
2
A
R
emove Nut, Faucet Retainer
and Gasket.
Do Not remove the O-ring from
base of Faucet.
B
Tighten the Flex Hose (with Strainer in place)
securely to the Supply.
GASKET
FAUCET RETAINER
NUT
O-RING —
DO NOT REMOVE
FAUCET
CENTER HOLE IN
DECK OR LAVATORY
O-RING
B
GASKET
FAUCET
RETAINER
FAUCET
FLEX HOSE
NUT
O-RING
MODELS POWERED BY
PLUG-IN ADAPTER ONLY
DO NOT pull or crimp AC
Power Line.
SU
PPLY LINE/ STOP
STRAINER
FLEX HOSE
IMPORTANT:
Flush dirt, debris, and sediment from Supply Line(s)
before
Connecting Flex Hoses.
Electrical outlet must be within 24” of faucet unless extensions are used.
Electrical Connection for up to Six (6) Faucets Using One (1) Adapter
SENSOR
LABEL
90-264 VAC/
6.75 VDC
PLUG-IN ADAPTER
ADAPTER
DAISY CHAIN
ELECTRICAL CABLE
DAISY CHAIN
ELECTRICAL
CABLE
DAISY CHAIN
ELECTRICAL
CABLE
TO ADDITIONAL
FAUCETS
(6 MAX.)
A
Install Strainer and Flex Hose
onto Supply Stop.
C
Open Supply Stop(s).

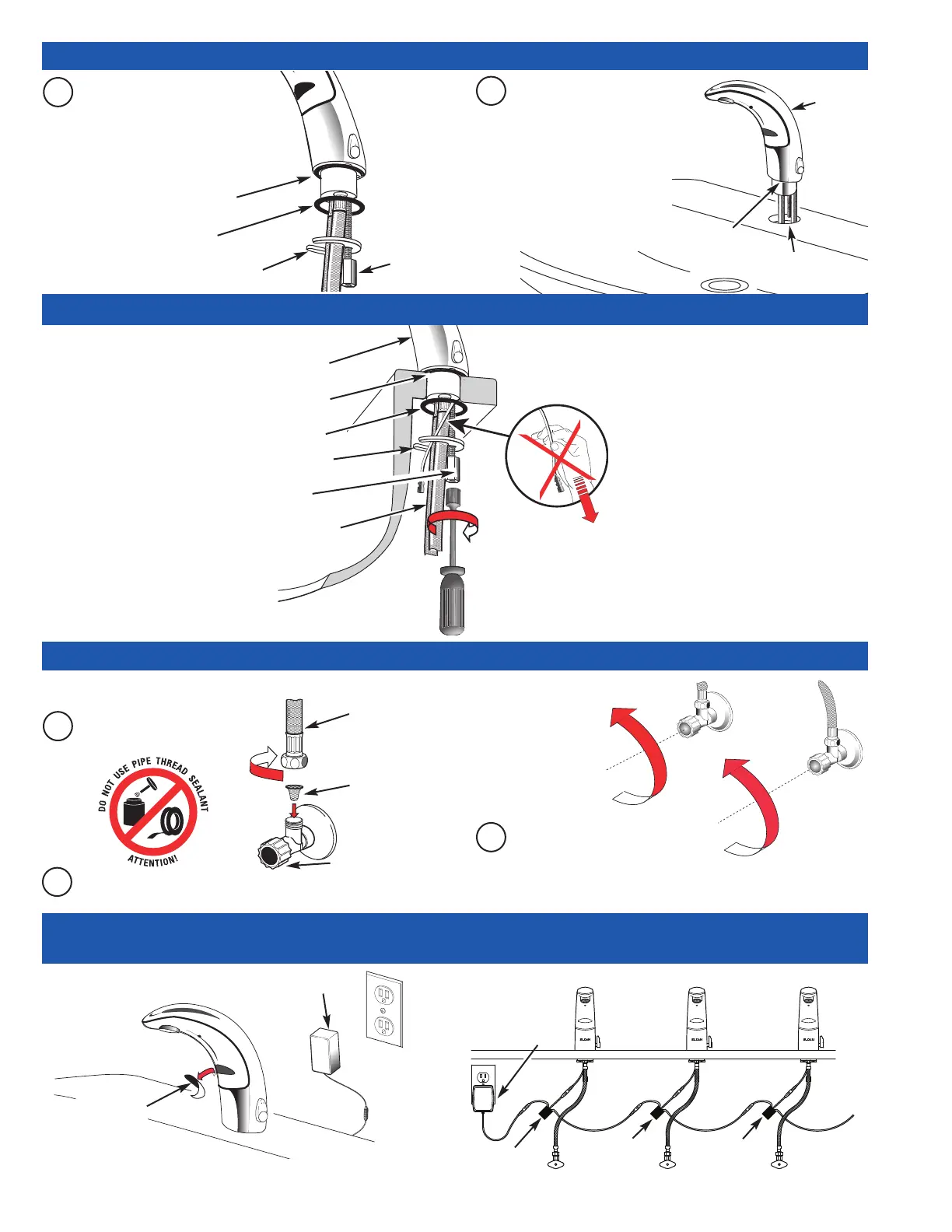

1 - INSTALL FAUCET
2 - SLIDE GASKET OVER FLEX HOSE(S) AND SECURE WITH FAUCET RETAINER AND NUT
3 - INSTALL STRAINER AND FLEX HOSE ONTO SUPPLY STOP AND OPEN SUPPLY STOPS
4 - EAF-100 MODELS: PLUG ADAPTER INTO RECEPTACLE
ALL MODELS: REMOVE LABEL FROM SENSOR
