Place your hand (or card) in front of the sensor at the distance
you desire the Faucet to activate. Leave hand or card at this
location while the sensor range is setting. Remove hand or
card when the sensor light turns off. The sensor range is now
set.
A
Hold the black button in until the sensor flashes (approximately
3 - 6 seconds).
NOTE:
Sensor Range can be adjusted after power is supplied to the
Faucet (battery or hardwire).
A
Hold the black button in for more than six seconds. The water
flow time-out setting will change from 7 seconds to 70 seconds
or from 70 seconds to 7 seconds.
NOTE:
There are two available time-out settings; 7 seconds and 70
seconds.
PLUG-IN GANG ADAPTER KIT SFP-35-A
Plug-in Gang
Adapter
SFP-36
Cable
Splitter
SFP-38
Cable Splitter
SFP-38
To
Additional
Faucets
(6 Max.)
Cable Splitter
SFP-38
A

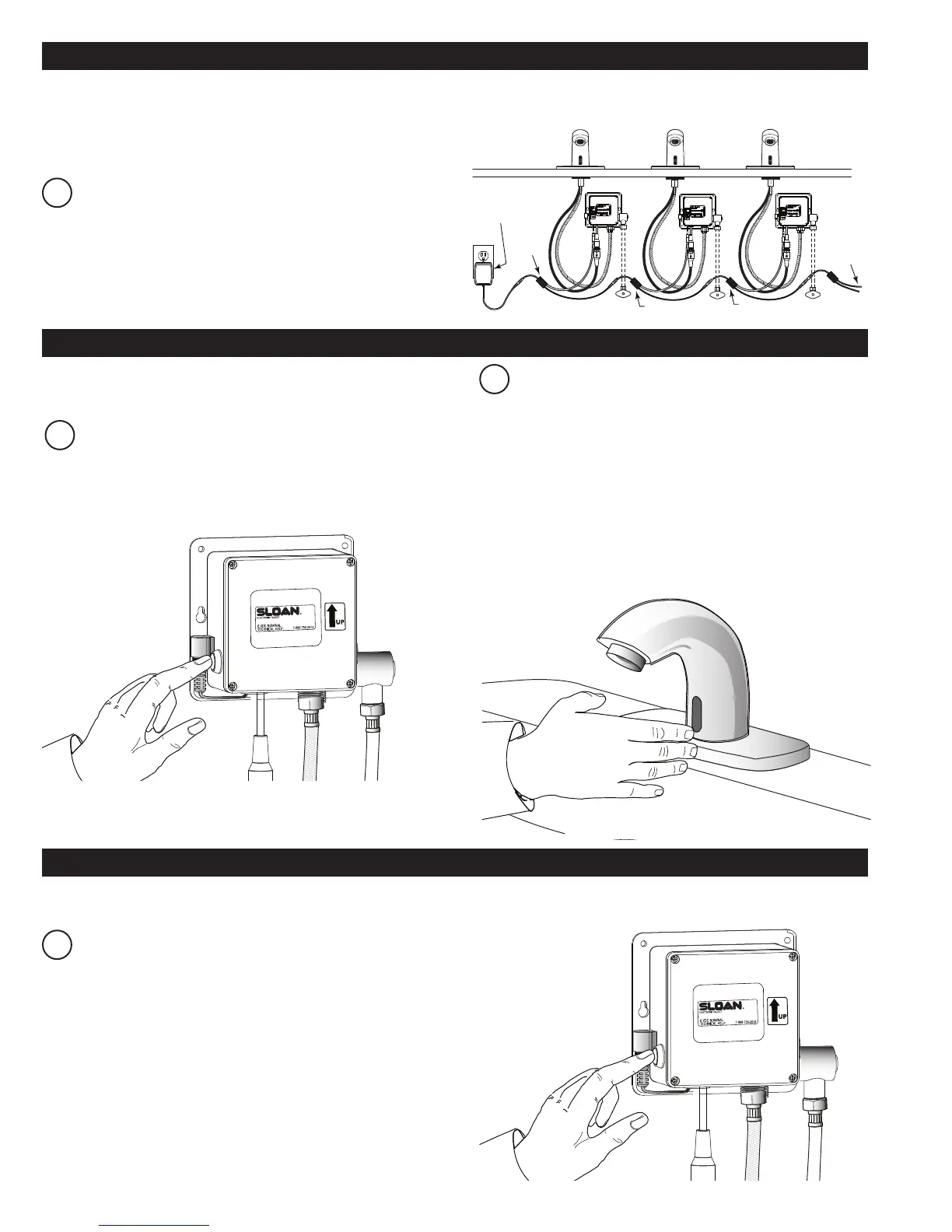

Connect the Adapter and Cables to the Sensor Faucets as
shown below.
!!!!IMPORTANT!!!!
DO NOT PLUG IN THE ADAPTER UNTIL ALL CONNECTIONS ARE MADE
To connect multiple faucets to a single adapter, use the Sloan
SFP-35-A Gang Adapter Kit (Purchase Separately).
The SFP-35-A Gang Adapter Kit is supplied with cables to connect up
to 6 faucets. To connect up to 8 faucets, purchase 2 additional
SFP-38 Cable Splitters separately.
For complete installation, refer to instructions packaged with Gang
Adapter Kit.
SFP-35-A Gang Adapter Kit is available in 120 VAC only.
7B - GANG ADAPTER INSTALLATION
8 - SET RANGE ADJUSTMENT
9 - SET WATER FLOW TIME-OUT
NOTE:
The sensor range is dependent on the distance of your hand or
card while the sensor is in range setting mode.
NOTE:
If no target is placed in front of the sensor, the sensor range
will set to its longest distance.
