FLEXIBLE ASSEMBLY SYSTEM FAS200
User Manual for FAS200 - 36 -
FAS-205 HYDRAULIC PRESSING MODULE

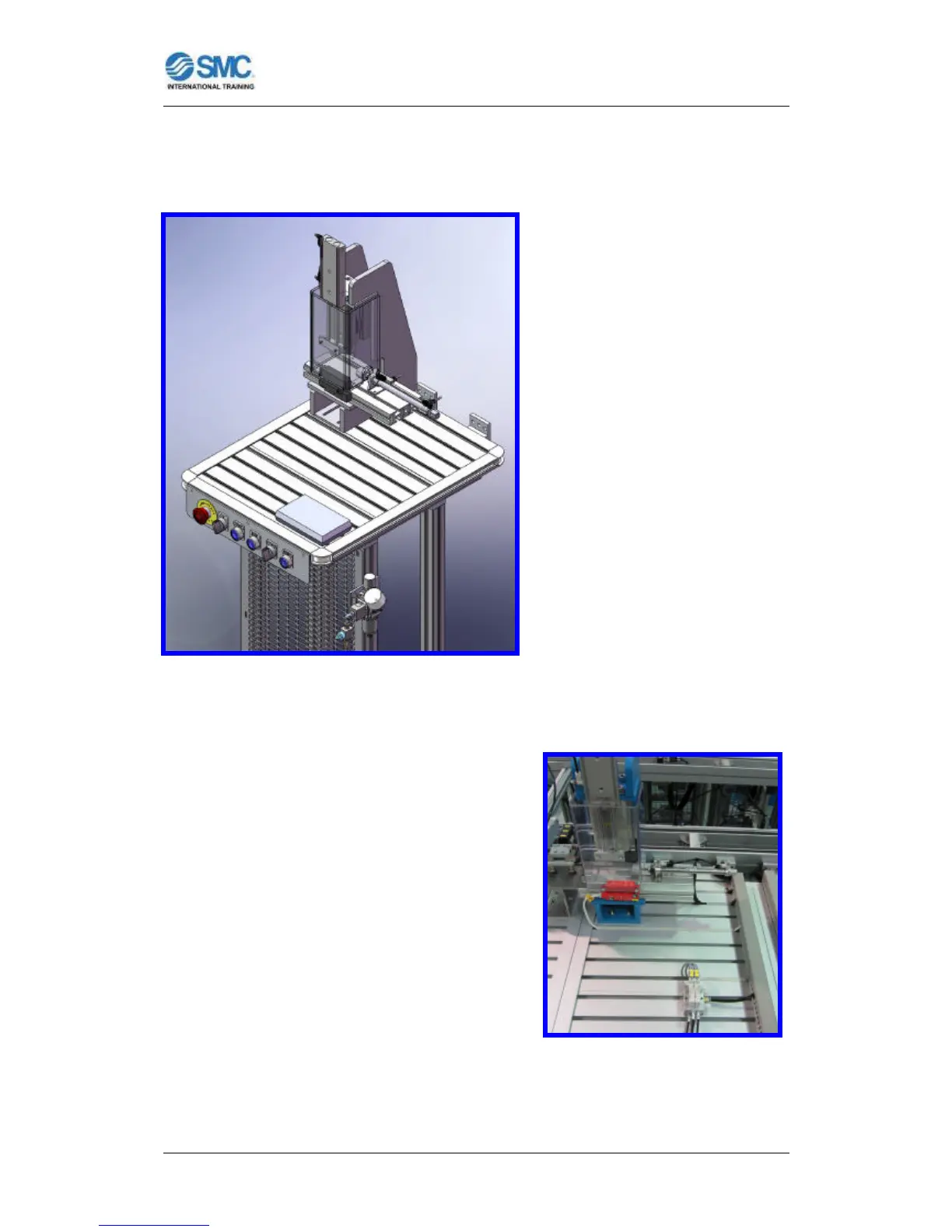

Figure 40: FAS205 Hydraulic Pressing
Module.
FUNCTION OF THE MODULE:
Following the bearing insertion operation
performed by the preceding modules, this fifth
module carries out the task of pressing the
bearing firmly into the body to fix it securely. In
actual fact, this pressing operation is not
actually carried out; instead, it is only
simulated so that the finished assembly may
be dismantled easily and the component parts
reused.
Figure 41: Manipulators of the fifth module.
