-21-
No.PS※※-OMV0006-D

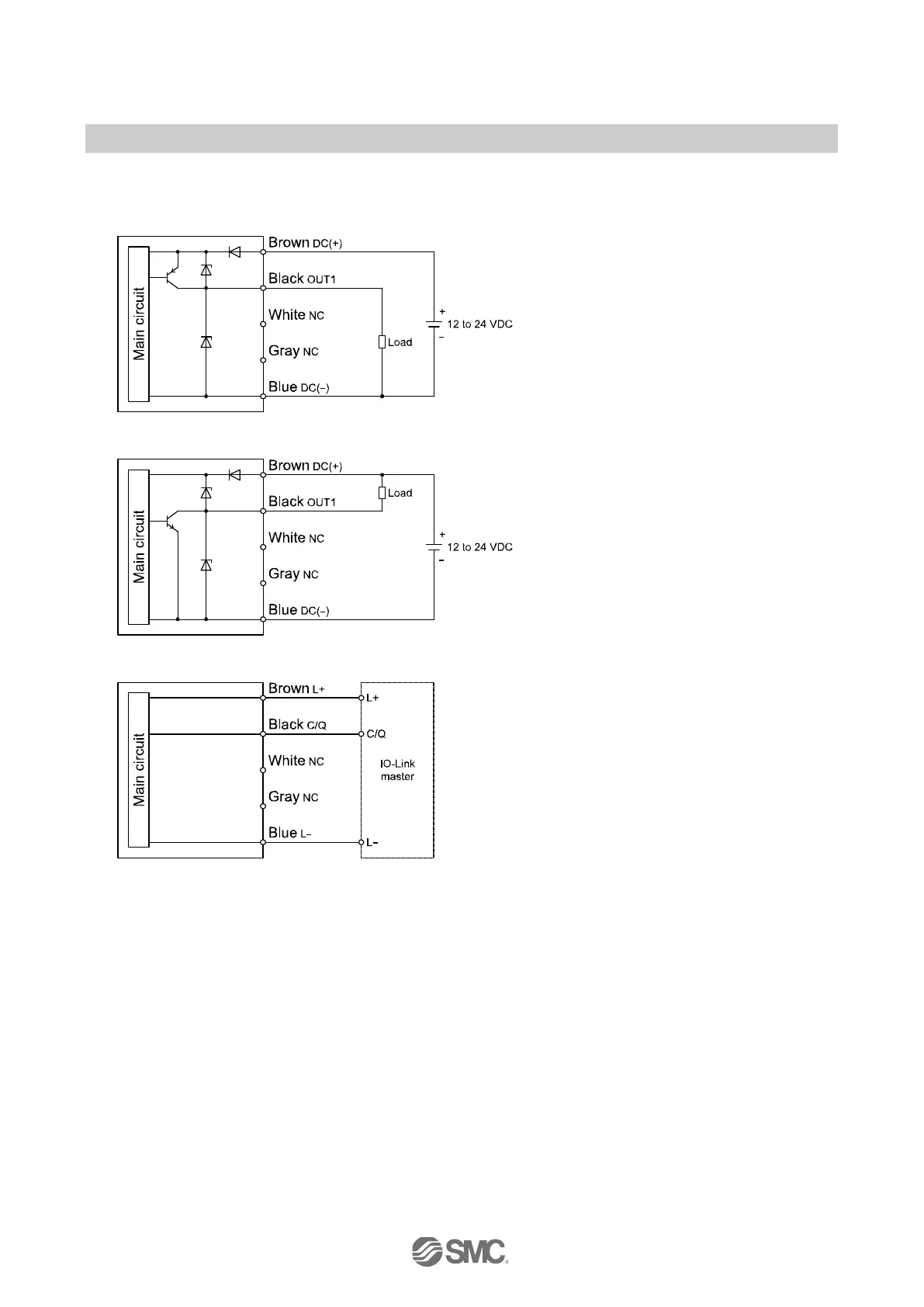

○Internal circuit and wiring examples
•Used as switch output device
Setting of PNP open collector 1 output
Setting of NPN open collector 1 output
•Used as IO-Link device
