ASSEMBLY

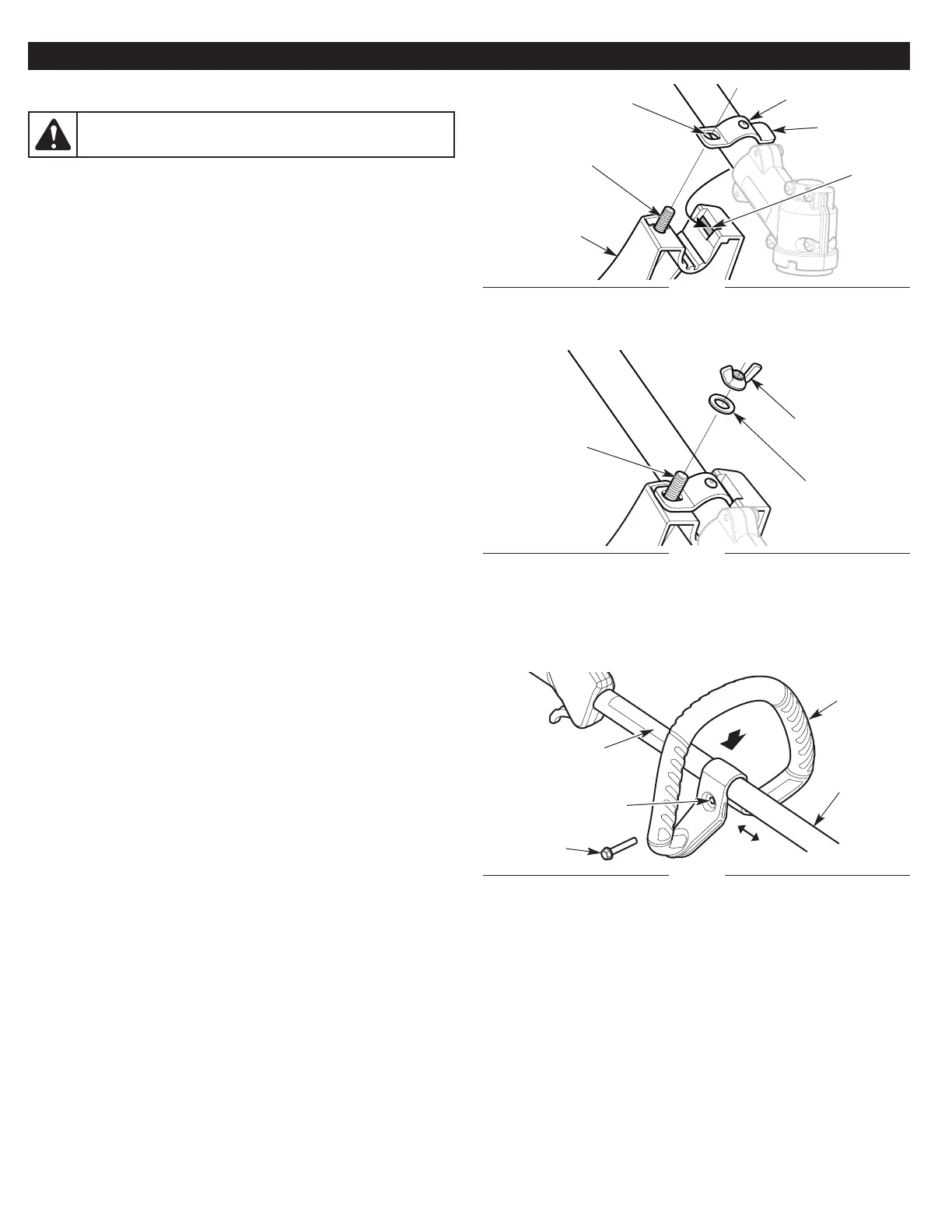

INSTALLING THE CUTTING HEAD SHIELD
1. Remove the wing nut and washer from the cutting head shield.
2. Insert the short tab (the one without a hole) on the mount
bracket into the slot on the cutting head shield (Fig. 1).
3. Rotate the cutting head shield until the bolt on the cutting head
shield protrudes through the hole on the mount bracket (Fig. 1).
4. Place the washer onto the bolt (Fig. 2).
5. Scr
ew the wing nut onto the bolt until the cutting head shield is
f
irmly in place (Fig. 2).
WARNING:
To prevent serious personal injury, never
operate the unit without the cutting head shield in place.
Fig. 1
Mount Bracket
Cutting Head
Shield
Fig. 2
Washer
Bolt
Slot
Wing Nut
Tab
Bolt
Hole
INSTALLING AND ADJUSTING THE HANDLE
Installing the Handle
1. Push the handle down onto the upper shaft housing (Fig. 3).
Make sure the bolt hole faces to the right (Fig. 3).
2. Insert the bolt into the bolt hole and push it through (Fig. 3).
Tighten the bolt with a flat-head screwdriver, but do not tighten
the bolt completely .
3. Hold the unit in the operating position (Fig. 10). Move the handle
up or down
the upper shaft housing to a comfortable location
(
Fig. 3). Make sure the handle is positioned beyond the end of
the safety label (Fig. 3).
4. Tighten the bolt with a flat-head screwdriver until the handle is
secure.
Adjusting the Handle
If the handle requires adjustment:
1. Loosen the bolt with a flat-head screwdriver (Fig. 3).
2. Hold the unit in the operating position (Fig. 10). Move the handle
up or down
the upper shaft housing to a comfortable location
(
Fig. 3). Make sure the handle is positioned beyond the end of
the safety label (Fig. 3).
3. Tighten the bolt with a flat-head screwdriver until the handle is
secure.
Fig. 3
Bolt Hole
Handle
Upper
Shaft
Housing
Bolt
Safety Label
