Control circuits

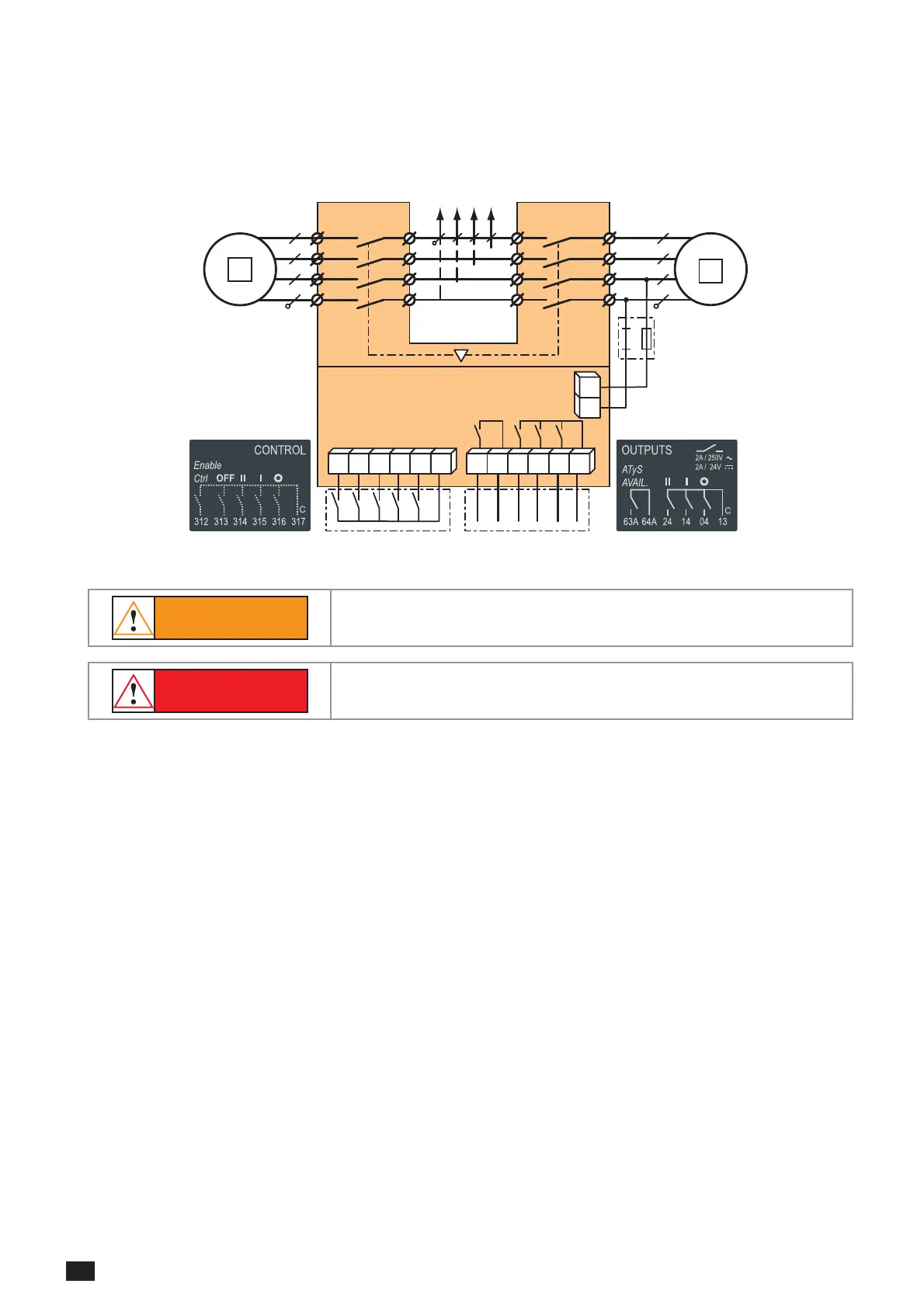

Typical ATYS wiring
Connect the product with a cable of section of 24 to 16 AWG.
Screw M3 - Tightening torque: min.: 5 lb-in - max. 7 lb-in.
1
2
301 3022
312 313 314 315 316 317 63A 64A 24 14 04 13
Class CC
4A fuse
ATS controller
CAUTION
Verify that the nominal auxiliary power supply feeding terminals 301 and 302 are
within the limits of 208VAC -> 277VAC
DANGER
Do not handle any control or power cables connected to the ATYS when voltage
may be present.
