4
US
Safety and Regulatory Booklet
5-012-450-15(1)

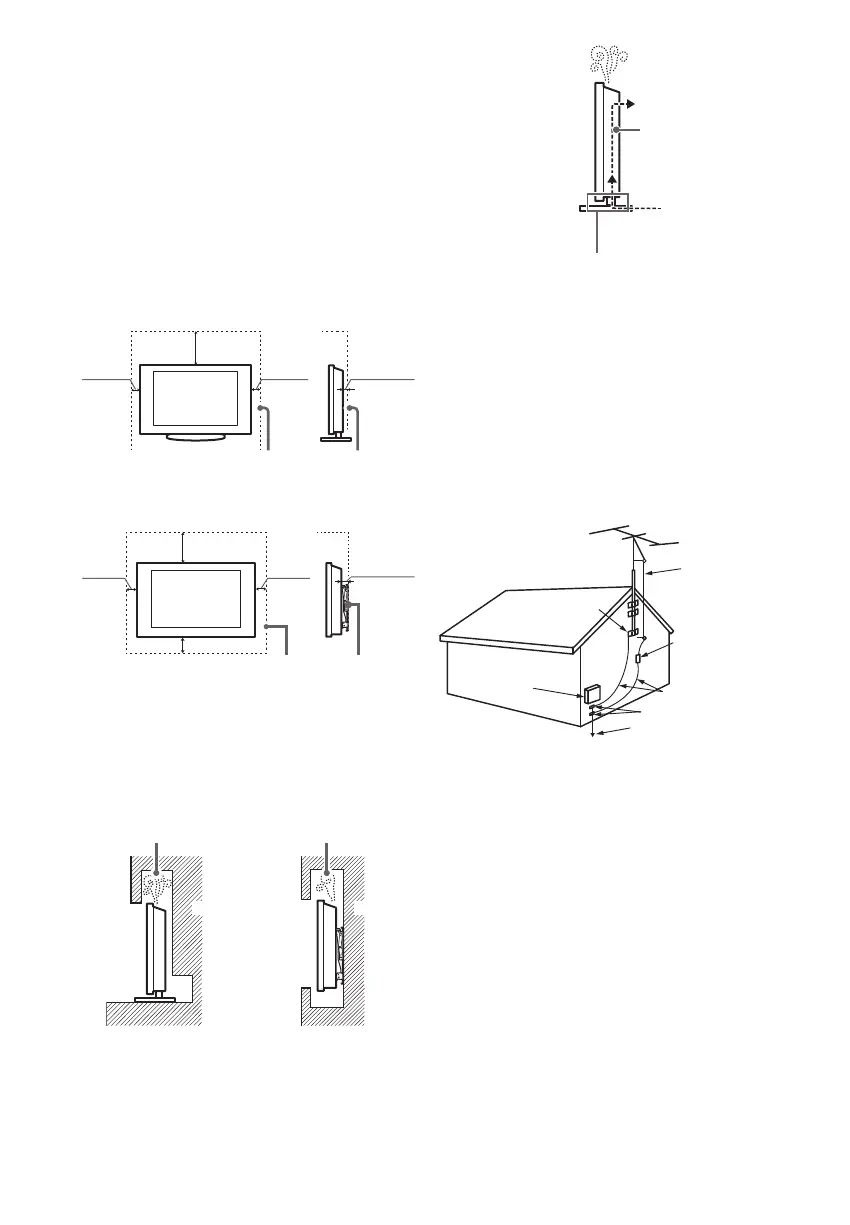

Installing the TV
against a wall or
enclosed area*
Ventilation
☐ Never cover the ventilation holes or
insert anything into the cabinet.
☐ Leave space around the TV set as shown
below.
Installed with stand
4 inches
11
7
/
8
inches
(30 cm)
(10 cm)
4 inches
(10 cm)
2
3
/
8
inches
(6 cm)
Leave at least this much space around the set.
Installed on the wall
4 inches
(10 cm)
4 inches
(10 cm)
11
7
/
8
inches
(30 cm)
13
/
16
inches
(2 cm)
*2
4 inches (10 cm)
Leave at least this much space around the set.
*2
13
/
32
inches (1 cm) for SU-WL8xx only.
Refer Reference Guide to know whether
your TV is compatible with this
Wall-Mount Bracket.
Never install the tv set as follows:
Air circulation is blocked. Air circulation is blocked.
Wall Wall
Air circulation
Do not block the air circulation area.
Note
☐ Inadequate ventilation can lead to
overheating of the TV and may cause
damage to your TV or cause a fire.
* The ventilation condition is depending
on your TV model. If this ventilation
information is described in both
Reference Guide and safety
documentation (Safety Booklet), please
refer to the Reference Guide.
Outdoor Antenna Grounding
Antenna lead-in wire
Antenna discharge
unit
(NEC Section 810-20)
Grounding conductors
(NEC section 810-21)
Ground clamps
Power service grounding
electrode system
(NEC Art 250 Part H)
NEC: National Electrical
Code
Ground clamps
Electrical service
equipment
WARNING
☐ This device complies with part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any
interference received, including
interference that may cause undesired
operation.
To Next Page
