Sony CDP-C245 Service Manual

%
NOTE:
* -XX, -X mean Standardized parts, so they
may have some difference from the
original one.
«Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE)... (RED)
i

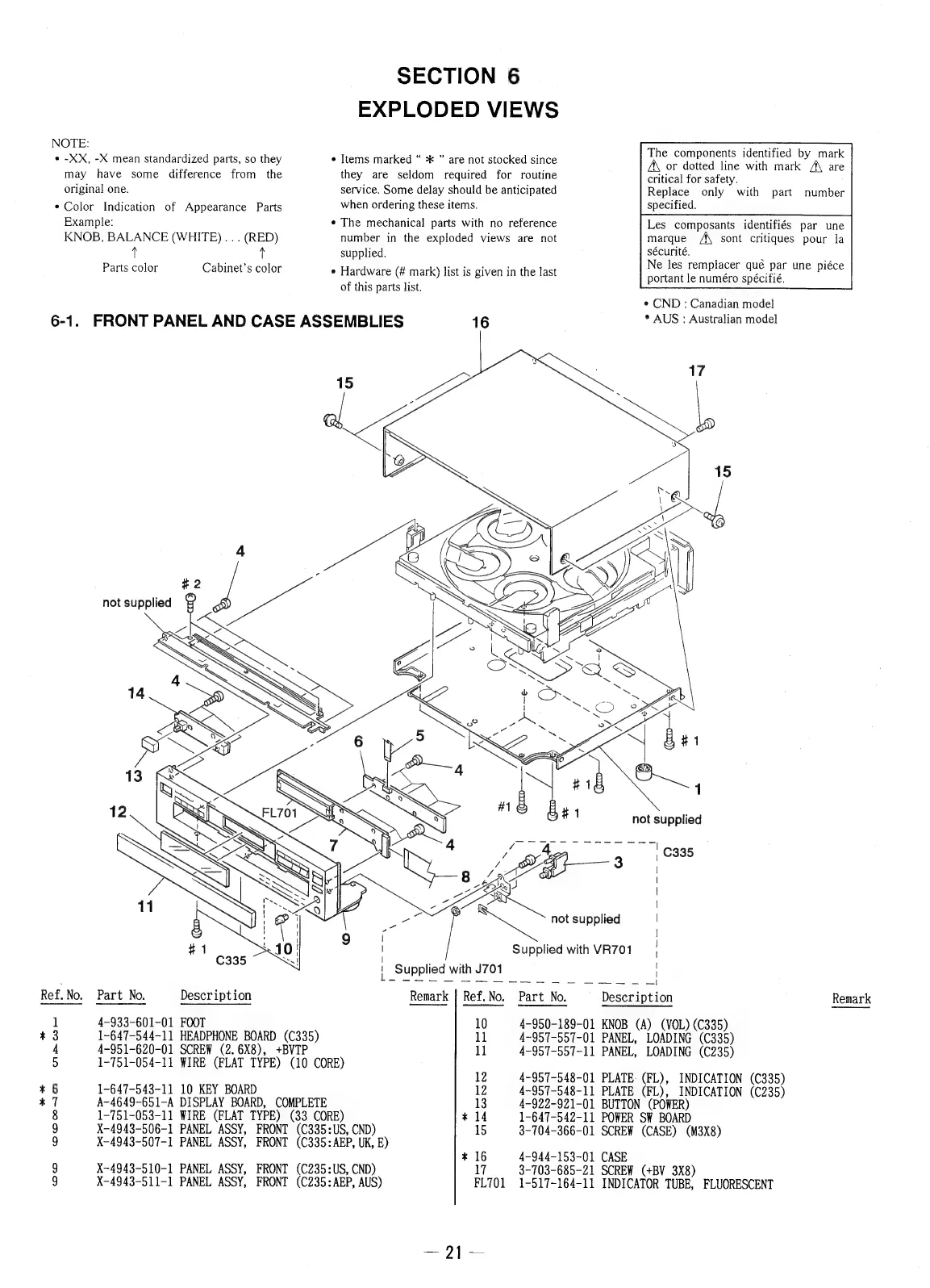

SECTION 6
EXPLODED VIEWS
* Items marked “ * ” are not stocked since
they are seldom required for routine
service. Some delay should be anticipated
when ordering these items.
¢ The mechanical parts with no reference
number in the exploded views are not
t supplied.
Parts color Cabinet's color * Hardware (# mark) list is given in the last
of this parts list.
6-1. FRONT PANEL AND CASE ASSEMBLIES 16
not supplied
|
|
|
| Supplied with J701
not supplied
Supplied with VR701
The components identified by mark
A\ or dotted line with mark /\ are
critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque /\ sont critiques pour la
sécurité.
Ne les remplacer qué par une piéce
portant le numéro spécifié.
e CND: Canadian model
* AUS : Australian model
C335
Ref.No.
Part
No.
Description
Remark
|
Ref.No.
Part
No.
Description
Remark
1
4-933-601-01
FOOT
10
4-950-189-01
KNOB
(A)
(VOL)
(C335)
3
1-647-544-11
HEADPHONE
BOARD
(C335)
11
4-957-557-01
PANEL,
LOADING
(C335)
4
4-951-620-01
SCREW
(2.
6X8),
+BVTP
ll
4-957-557-11
PANEL,
LOADING
(C235)
5
1-751-054-11
WIRE
(FLAT TYPE)
(10
CORE)
12 4-957-548-01 PLATE: (FL), INDICATION (C335)
6 1-647-543-11 10 KEY BOARD 12 4-957-548-11 PLATE (FL), INDICATION (C235)
7 A-4649-651-A DISPLAY BOARD, COMPLETE 13 4-922-921-01 BUTTON (POWER)
8 1-751-053-11 WIRE (FLAT TYPE) (33 CORE) * 14 1-647-542-11 POWER SW BOARD
9 X-4943-506-1 PANEL ASSY, FRONT (C335:US, CND) 15 3-704-366-01 SCREW (CASE) (M3X8)
9 X-4943-507-1 PANEL ASSY, FRONT (C335:AEP, UK, E)
* 16 4-944-153-01 CASE
9 X-4943-510-1 PANEL ASSY, FRONT (C235:US, CND) 17 3-703-685-21 SCREW (+BV 3X8)
9 X-4943-511-1 PANEL ASSY, FRONT (C235:AEP, AUS) FL701 1-517-164-11 INDICATOR TUBE, FLUORESCENT
