Sony CDP-C245 Service Manual

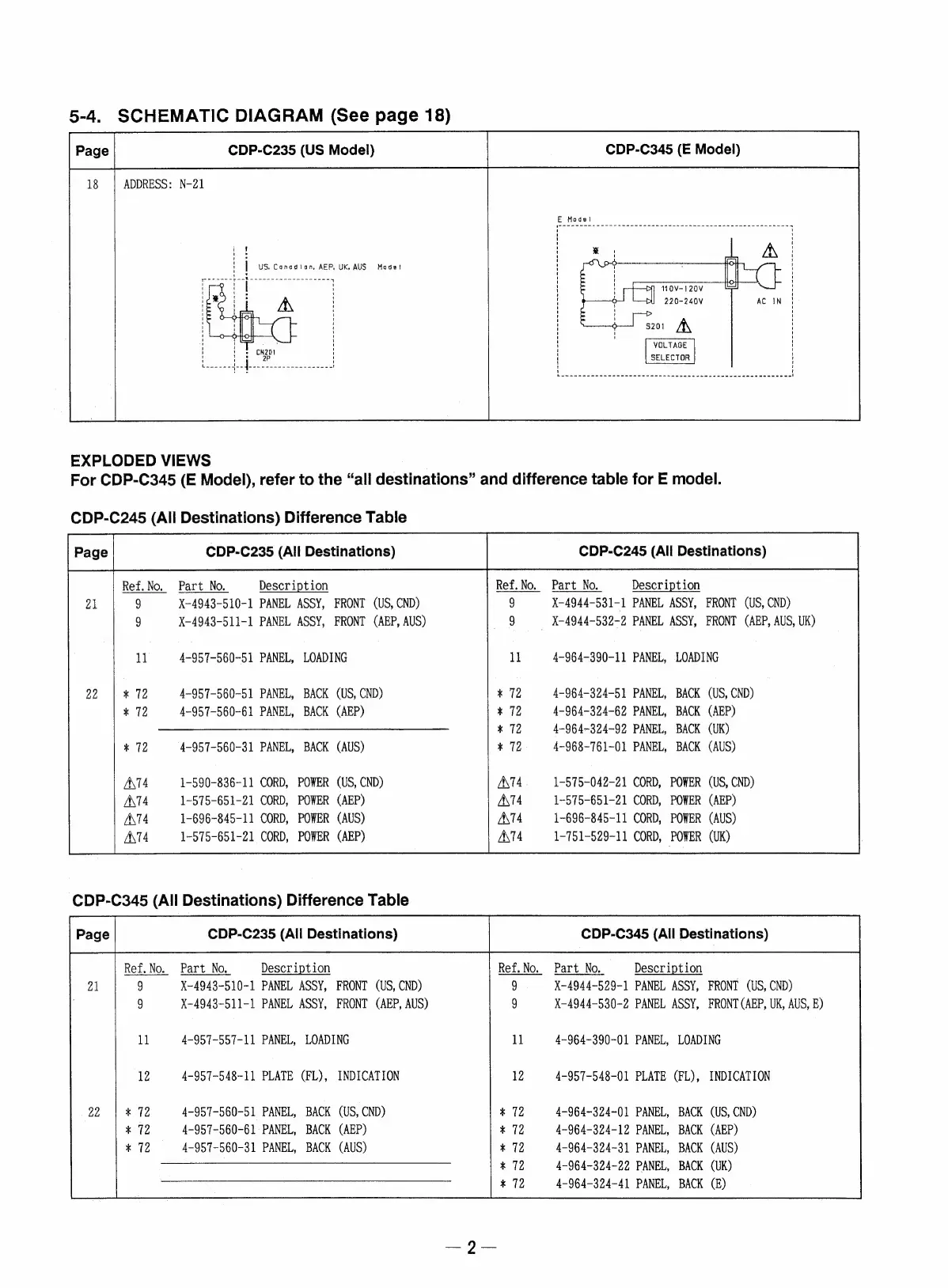

5-4. SCHEMATIC DIAGRAM (See page 18)
CDP-C235 (US Model) CDP-C345 (E Model)
ADDRESS: N-21
Model
if
: o«
| | US. Conagian, AEP, UK, AUS Mode!
tise
0V-120V
220-240V
VOLTAGE
SELECTOR
EXPLODED VIEWS
For CDP-C345 (E Model), refer to the “all destinations” and difference table for E model.
CDP-C245 (All Destinations) Difference Table
Part No. Description Ref.No. Part No. Description
X-4943-510-1 PANEL ASSY, FRONT (US, CND) 9 X-4944-531-1 PANEL ASSY, FRONT (US, CND)
X-4943-511-1 PANEL ASSY, FRONT (AEP, AUS) ee _ -X-4944-532-2 PANEL ASSY, FRONT (AEP, AUS, UK)
4-957-560-51 PANEL, LOADING ll 4-96§4-390-11 PANEL, LOADING
4-957-560-51 PANEL, BACK (US, CND) 4-964-324-51 PANEL, BACK (US, CND)
4~957-560-61 PANEL, BACK (AEP) 4-964-324-62 PANEL, BACK (AEP)
4-964-324-92 PANEL, BACK (UK)
4-957-560-31 PANEL, BACK (AUS) 4-968-761-01 PANEL, BACK (AUS)
1-590-836-11 CORD, POWER (US, CND) 1-575-042-21 CORD, POWER (US, CND)
1-575-651-21 CORD, POWER (AEP) 1-575-651-21 CORD, POWER (AEP)
1-696-845-11 CORD, POWER (AUS) 1-696-845-11 CORD, POWER (AUS)
1-575-651-21 CORD, POWER (AEP) 1-751-529-11 CORD, POWER (UK)
CDP-C345 (All Destinations) Difference Table
Part No. Description Part No. Description
X-4943-510-1 PANEL ASSY, FRONT (US, CND) X-4944-529-1 PANEL ASSY, FRONT (US, CND)
X-4943-511-1 PANEL ASSY, FRONT (AEP, AUS) X-4944-530-2 PANEL ASSY, FRONT (AEP, UK, AUS, E)
4-957-557-11 PANEL, LOADING 4-964-390-01 PANEL, LOADING
4-957-548-11 PLATE (FL), INDICATION 4-957-548-01 PLATE (FL), INDICATION
4-957-560-51 PANEL, BACK (US, CND) 4-964~324~-01 PANEL, BACK (US, CND)
4-957-560-61 PANEL, BACK (AEP) 4-964-324-12 PANEL, BACK (AEP)
4-957-560-31 PANEL, BACK (AUS) 4-9§4-324-31 PANEL, BACK (AUS)
—— 4-964-324-22 PANEL, BACK (UK)
4-964-324-41 PANEL, BACK (E)
