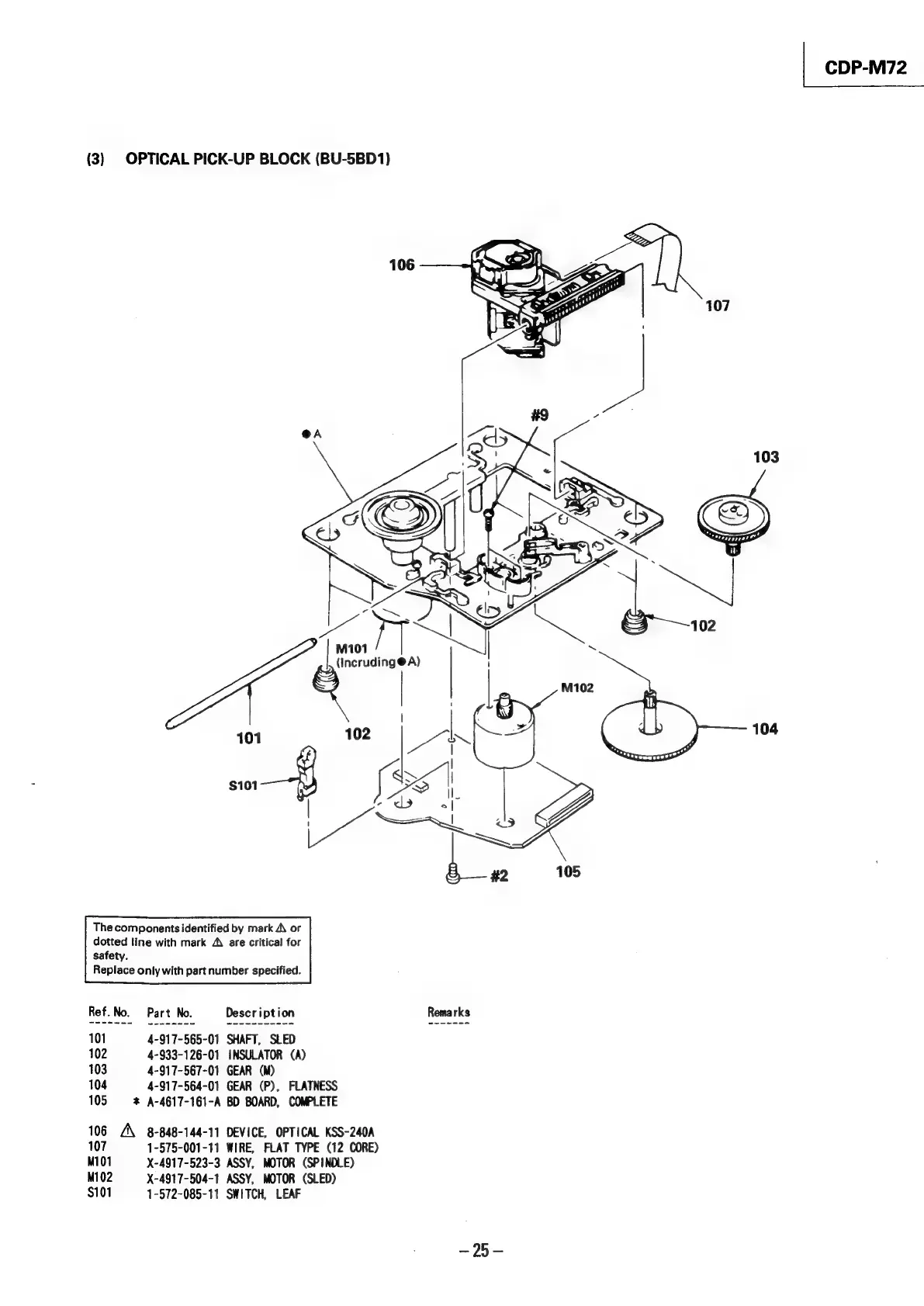

(3) OPTICAL PICK-UP BLOCK (BU-5BD1)
(Incruding @A)
|
01 102 ie .
mh fb
ae
#2 105
The componentsidentified by mark A\ or
dotted line with mark A\ are critical for
Safety.
Replace only with part number specified.
Ref.No. Part No. Description Remarks
101 4-917-565-01 SHAFT, SLED
102 4-933-126-01 INSULATOR (A)
103 4-917-567-01 GEAR (M)
104 4-917-564-01 GEAR (P), FLATNESS
105 = A-4617-161-A BD BOARD, COMPLETE
106 A\ 8-848-144-11 DEVICE, OPTICAL KSS-240A
107 1-575-001-11 WIRE, FLAT TYPE (12 CORE)
M101 X-4917-523-3 ASSY, MOTOR (SPINDLE)
M102 X-4917-504-1 ASSY, MOTOR (SLED)
$101 1-572-085-11 SWITCH, LEAF
