DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2

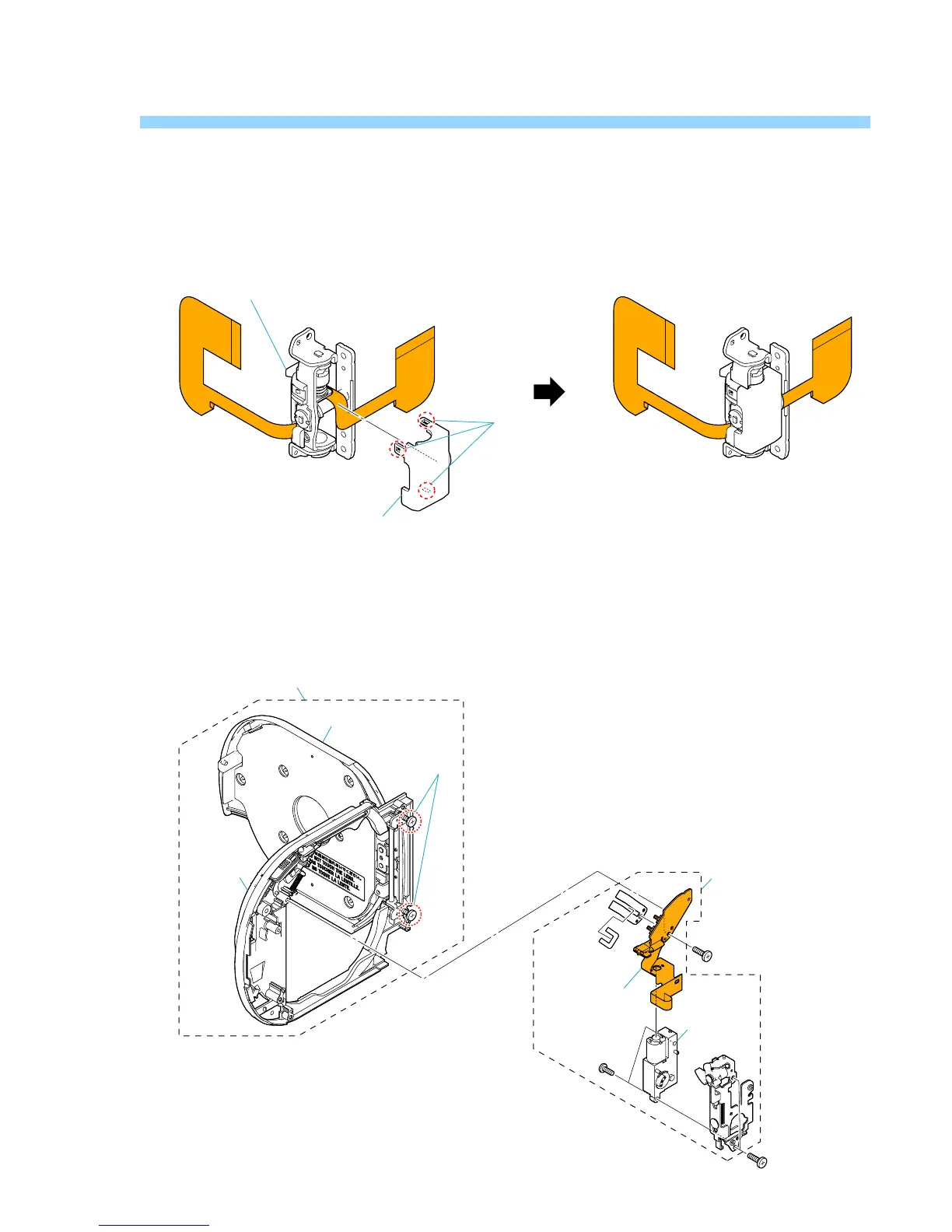

4 Install the hinge cover (C) in the hinge cover (M).
Hinge cover (M)
Hinge cover (C)
Claw
PRECAUTION WHEN INSTALLING THE CABINET L ASSY FOR SERVICE
Cabinet D
block
D lid block
Cabinet L assy for service
When the eject block is installed on the cabinet L assy
for service, a discrepancy could be made between the
cabinet D block and the D lid block, and as a result,
the D lid may not to be closed.
In case of such discrepancy, loosen the screws on the
hinge to eliminate the discrepancy of the D lid block,
and then retighten the screws.
Screws
M903
Eject block
FP-569 flexible
complete board
