5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2
DISASSEMBLY
HARDWARE LIST
Ref. No. Part No. Description Ref. No. Part No. Description
1 2-699-266-01 LIGHT, ACCESS GUIDE
2 2-699-257-01 CABINET (L (UPPER))
3 1-833-677-11 CABLE, FLEXIBLE FLAT (FFC-006)
4 2-699-442-01 COVER, R
5 1-871-289-11 FP-575 FLEXIBLE BOARD
6 2-699-512-01 WINDOW, REMOTE CONTROL
#2 2-635-562-31 SCREW (M1.7) (Black)
#11 3-078-890-11 SCREW, TAPPING (Silver)

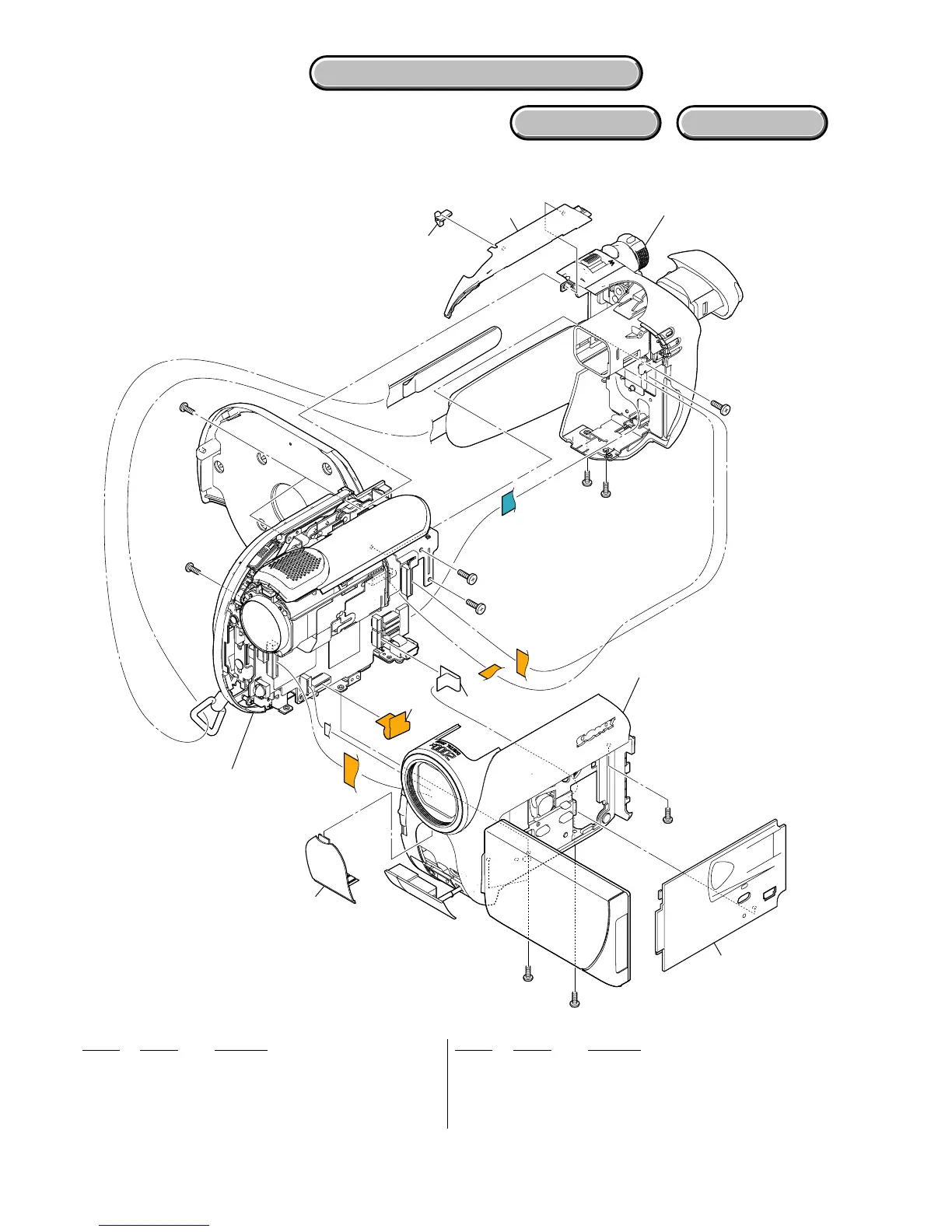

5-1-1. OVERALL SECTION
5-1. EXPLODED VIEWS
5
2
1
4
6
3
Cabinet (L) Section
(See Page 5-3)
Cabinet (R) Section
(See Page 5-6)
BT-EVF Block
(See Page 5-8)
#2
#2
#2
#2
#11
#2
#2
#2
#11
#2
