5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2

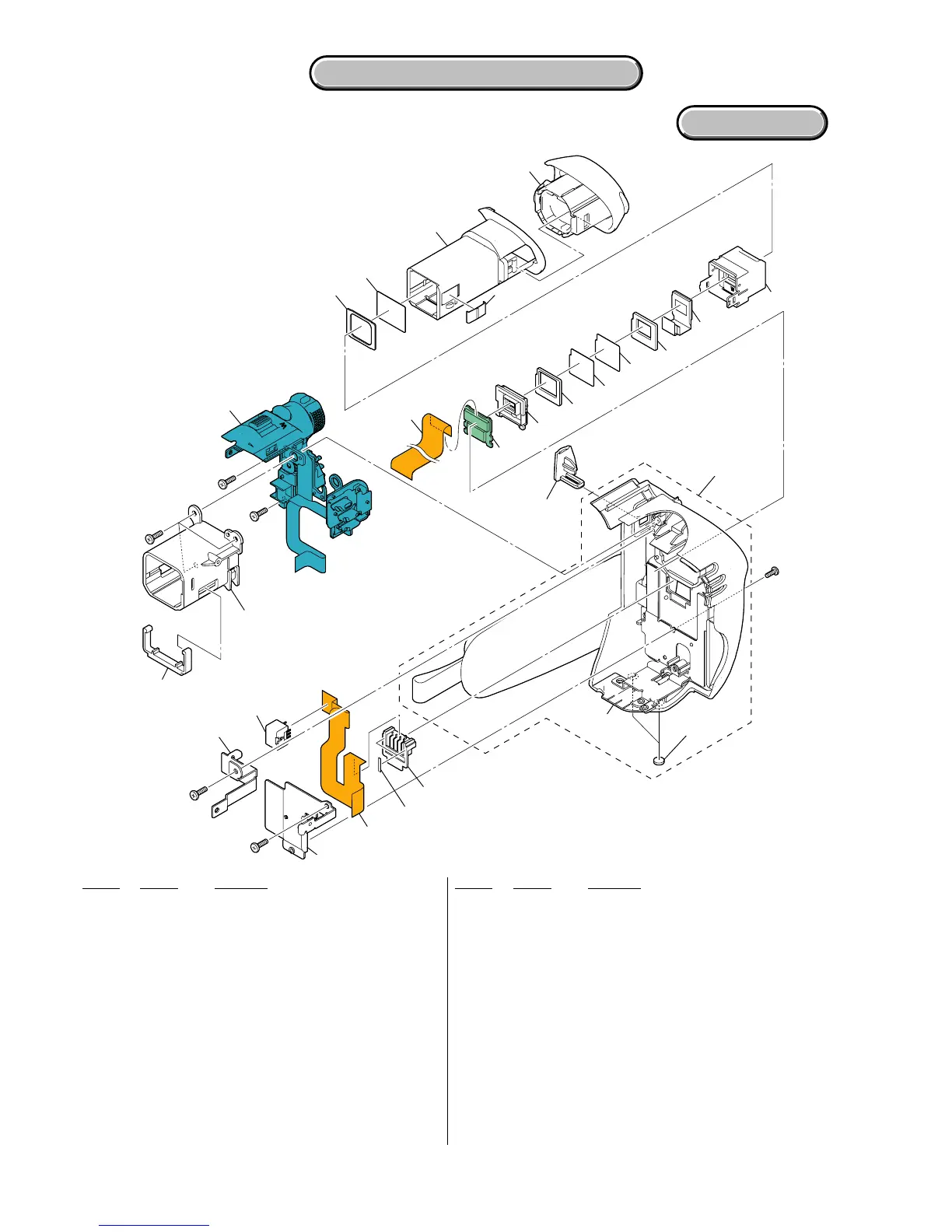

5-1-7. BT-EVF BLOCK
ns: not supplied
Ref. No. Part No. Description Ref. No. Part No. Description
301 2-699-239-01 STOPPER, VF
302 2-699-238-01 CABINET, VF SLIDE
303 1-479-927-11 SWITCH BLOCK, CONTROL (PS22100)
* 304 2-654-871-01 CUSHION (CF)
* 305 2-638-813-01 PLATE (CF), DEFLECTION
306 2-699-226-01 CABINET, VF
307 X-2149-208-1 EYE CUP ASSY (221)
308 2-699-240-01 SPRING, VF SLIDE
309 2-668-133-01 CABINET, INNER
* 310 2-638-815-01 SPACER, LCD
* 311 2-638-816-01 PLATE (TFT), DEFLECTION
* 312 2-638-818-01 ILLUMINATOR
* 313 2-638-819-01 CUSHION, LCD
* 314 2-638-820-01 GUIDE, LAMP
315 A-1228-495-A BL-006 BOARD, COMPLETE
316 1-871-285-11 FP-571 FLEXIBLE BOARD
317 2-699-246-01 COVER, DC (IN)
318 A-1246-110-A BT PANEL ASSY (E) (SERVICE)
319 2-589-376-01 FOOT (395), RUBBER
320 1-871-284-11 FP-570 FLEXIBLE BOARD
* 321 2-699-244-01 PLATE (UPPER), BT PANEL
* 322 2-699-279-01 SHEET METAL, DC (IN)
* 323 3-208-237-01 SHEET (BT)
BH001 1-780-064-21 BATTERY TERMINAL BOARD
J001 1-815-792-11 CONNECTOR, DC-IN (7.2V)
LCD902 8-753-245-09 LCX059CKK-1
#1 2-635-562-11 SCREW (M1.7) (Black)
#11 3-078-890-11 SCREW, TAPPING (Silver)
#11
#11
#11
#11
#11
#1
BH001
LCD902
319
320
318
317
ns
323
321
J001
301
302
303
322
316
304
305
306
307
308
309
310
311
312
313
314
315
HARDWARE LIST
Ver. 1.2 2007.05
