9
DR-BT10CX
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

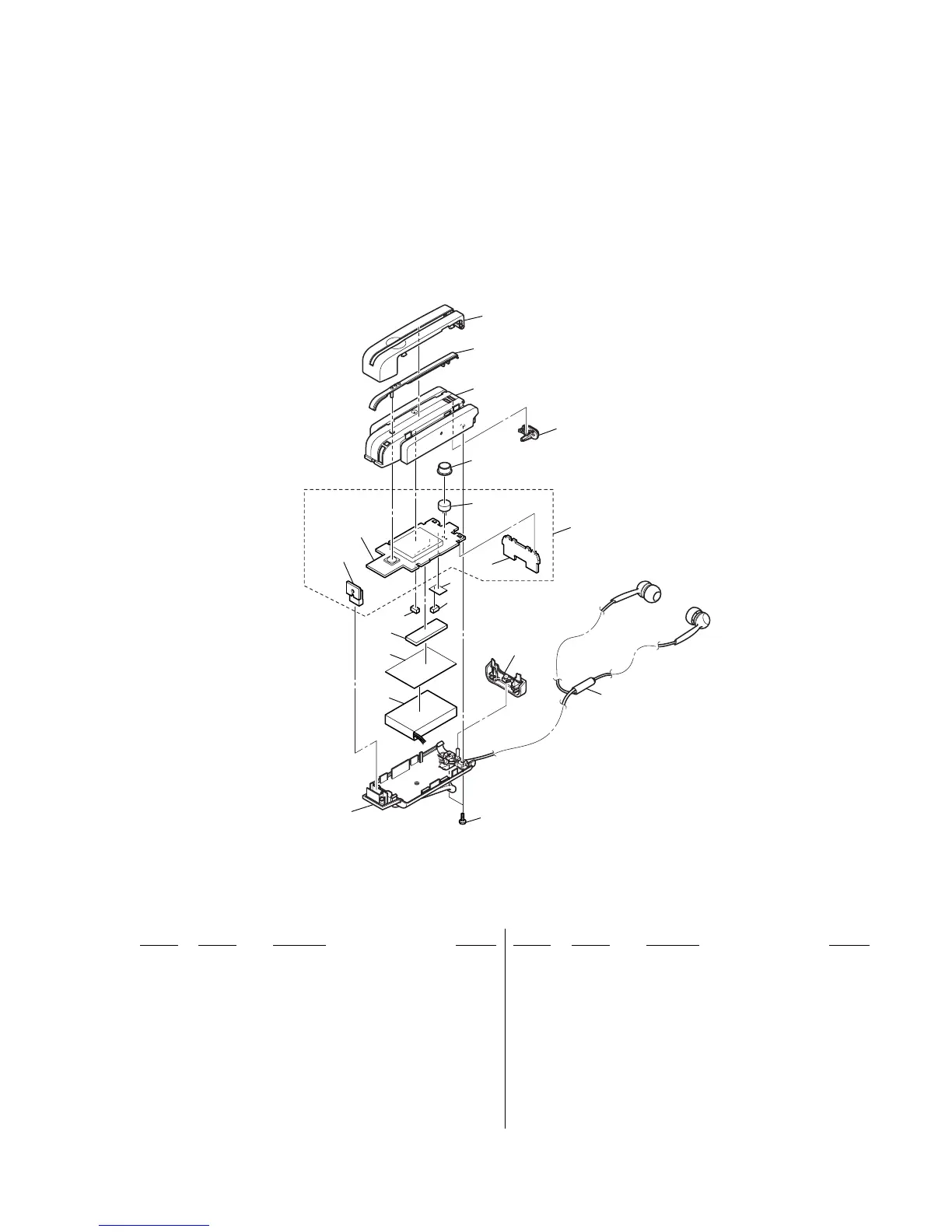

SECTION 3
EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Abbreviation
CND: Canadian model
KR: Korean model
1 3-254-136-11 SCREW (B1.4)
2 X-2159-957-1 CABINET LOWER SUB ASSY
3 8-912-760-90 HEADPHONE DR-EX51PT SET
4 2-688-503-01 BUTTON, VOLUME
5 X-2159-958-1 LITHIUM (ION) BATTERY SUB ASSY
(AEP, UK, E, KR)
5 X-2178-102-1 LITHIUM (ION) BATTERY SUB ASSY (US, CND)
6 2-683-433-01 SHEET, PROTECTION
7 2-693-055-01 SHEET, BATTERY
8 2-890-550-01 SHEET, COIL B
9 2-890-005-01 SHEET, COIL
10 A-1197-623-A MAIN PC BOARD ASSY
11 A-1197-716-A SWITCH BOARD, COMPLETE
12 A-1216-556-A JACK BOARD, COMPLETE
13 A-1197-626-A MAIN BOARD, COMPLETE
14 2-683-435-01 CUSHION, MICROPHONE
15 2-688-502-01 BUTTON, POWER
16 2-688-498-01 CABINET, UPPER
17 2-688-501-01 BUTTON, MULTIFUNCTION
18 2-688-500-01 LID, UPPER
MIC301 1-542-707-11 ELECTRET CONDENSER MICROPHONE
16
17
18
15
14
13
12
11
10
9
8
8
7
6
5
2
1
4
3
MIC301
Ver. 1.4
