Sony DSR-1500A - Page 88

88

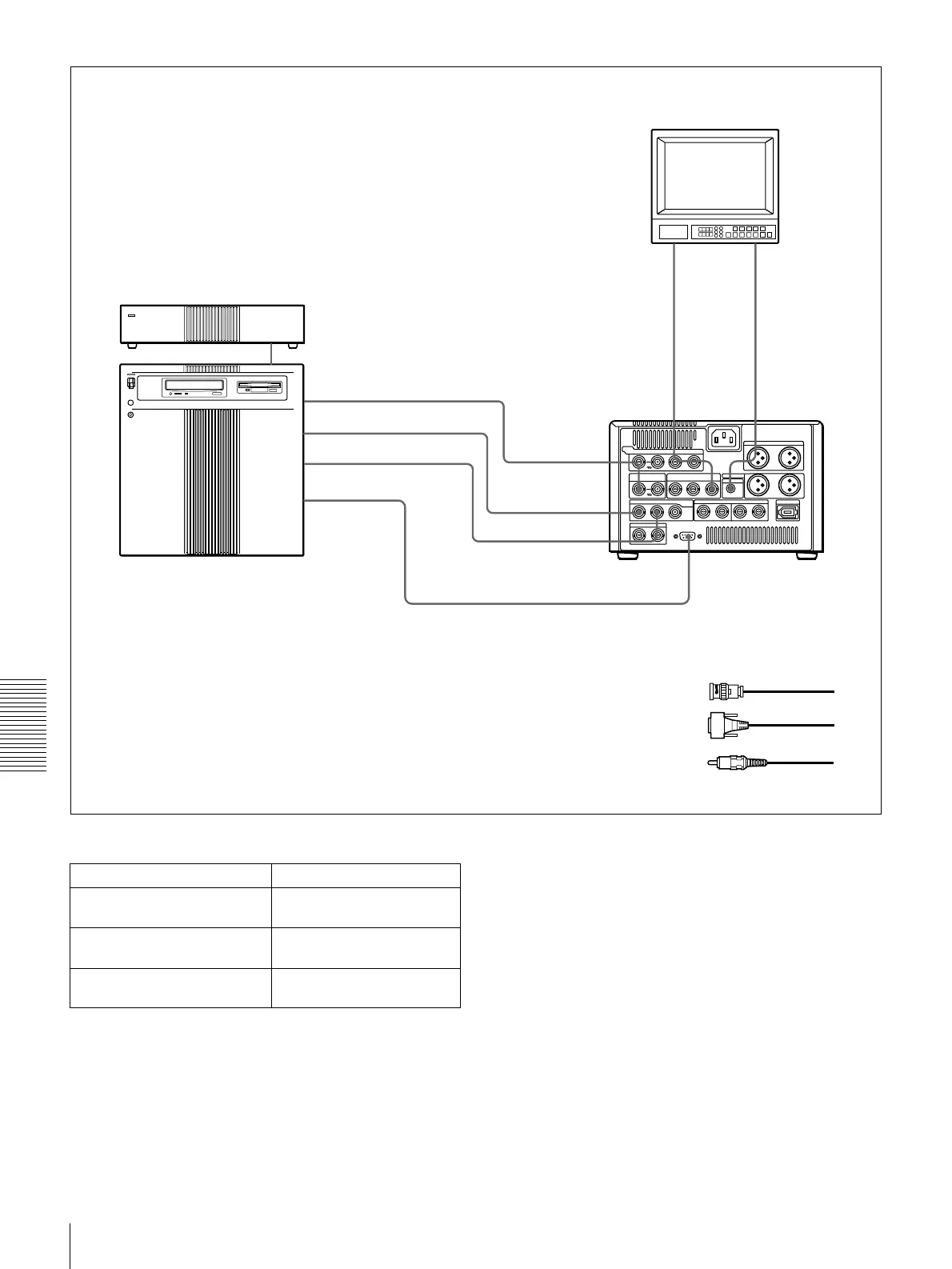

Connections for a Digital Non-Linear Editing System
Chapter 5 Connections and Settings
Settings on the DSR-1500A/1500AP
For details of video/audio input and audio mode settings,
see “Settings for Recording” on page 34.
REF.
VIDEO
IN
SDI/SDTI(QSDI)
OUT
SDI/SDTI(QSDI)
IN
MONITOR
VIDEO OUT
B-Y/CPST
(SUPER)
B B OUT(1/2/3/4)
QSDI OUTPUT
QSDI INPUT
REMOTE
RECORDER
1
1
1
2
1
3
DSR-1500A/1500AP
(recorder)
ES-7 EditStation
Audio input
Composite
video input
A 75 Ω coaxial cable (not supplied)
B 9-pin remote control cable
(not supplied)
C Cable with RCA phono plugs
(not supplied)
Video monitor
Switch/menu item Setting
LOCAL/REMOTE switch REMOTE
(REMOTE indicator lights.)
DIGITAL OUTPUT menu item
(see page 75)
SDTI
(SDTI indicator lights.)
REMOTE I/F menu item
(see
page 75)
9PIN
(9P indicator lights.)
