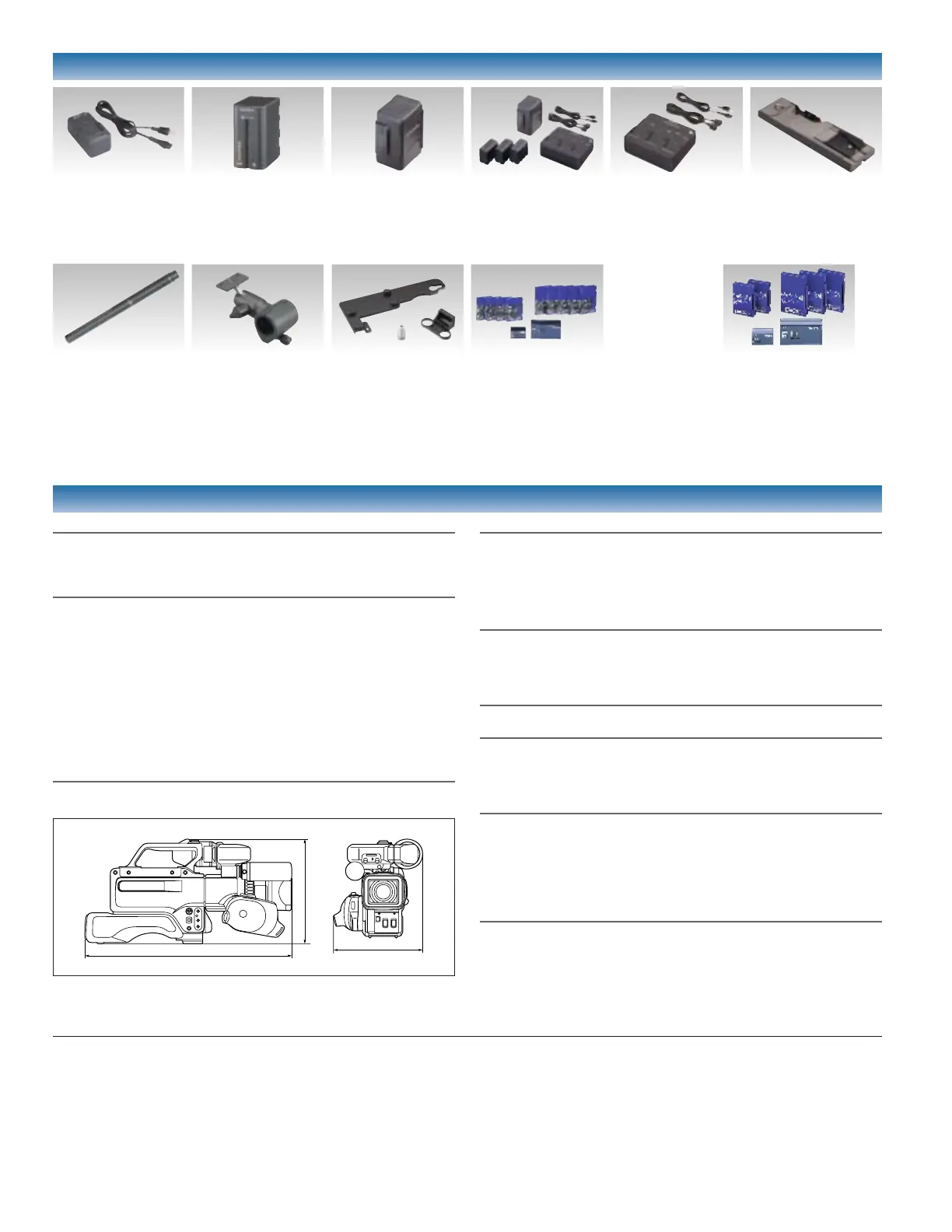

Optional Accessories
Optional Accessories
AC-V615/B
One-battery AC
Adaptor/Charger
NP-F950
Rechargeable Battery
Pack
NPA-10000/B
Three-battery Holder
ACC KIT-201
Consisting of three
NP-F950,
one NPA-10000/B and
one AC-V900/B
AC-V900/B
Three-battery Charger/AC
Adaptor
VCT-U14
Tripod Adaptor
ECM-672
Electret Condenser
Microphone
CAC-12
Microphone Holder
DSBK-201
Adaptor for WRR-810A
Wireless Microphone
Receiver
Specifications
Specifications
LENS
Zoom: 10 x Zoom (f = 5.9 to 59 mm)
(20 x Digital Zoom)
Filter diameter: 52 mm
Iris: Auto/Manual (F1.6 to 11) and Close
CAMERA
Image device: 3 CCD 1/3-inch, Interline-Transfer Sensor
Picture elements: 768 (h) x 494 (v) (effective), 811 (h) x 508 (v) (total)
Signal system: EIA standard, NTSC Color system
Scanning system: 2:1 interlaced, 525 lines, 60 fields/sec.
Scanning size: 4:3/16:9 switchable
Gain: Auto/ Manual(-3, 0, 3, 6, 9, 12, 15, 18 dB)
Shutter control: Auto/Manual(1/4, 1/8, 1/15, 1/30, 1/60, 1/100, 1/250, 1/500,
1/1000, 1/2000, 1/4000, 1/10000 sec.)
White balance: ATW/One-push auto/5800 K/3200 K
Minimum illumination: 3 lx
Recommended illumination: More than 100 lx
Viewfinder: 1-inch black and white CRT
Built-in microphone: One-point stereo-type electret condenser microphone,
directivity selectable (0˚/90˚/120˚)
Built-in speaker: Dynamic speaker
VTR
Tape speed: Approx. 28.193 mm/s.(DVCAM mode)
Maximum recording time: 184 minutes (with PDV-184ME)
VIDEO:
Video signal: EIA standard, NTSC Color system
Output: Composite: BNC x 1, Pin jack x 1, 1.0Vp-p, 75 Ω,
Sync negative
S-Video: 4-pin mini-DIN connector x 1
Y: 1.0 Vp-p, 75 Ω, unbalanced
C: 0.286 Vp-p (subcarrier burst), 75 Ω,
unbalanced
AUDIO
Audio signal: REC: 48 kHz/16-bit, 32 kHz/12-bit,
PB: 48 kHz/16-bit, 32 kHz/12-bit,
32 kHz/16-bit, 44.1 kHz/16-bit
Input: XLR 3-pin x 2 (MIC/LINE selectable) Stereo mini jack x 1
Output: Phono jack x 1 (L&R x 1)
DIGITAL IN/OUT:
i.LINK (DV IN/OUT), 4-pin jack x 1 (IEEE1394-based)
OTHER CONNECTORS
LANC: Stereo mini-mini jack x 1
Headphone jack: Stereo mini jack x 1
RFU DC output: Special mini jack x 1 (DC 5 V)
External DC input: 4-pin for DK-715 cable
Viewfinder interface: 8-pin connector
GENERAL
Operating temperature: 0 C˚ to 40 C˚ (32 F˚ to 104 F˚)
Storage temperature: -20 C˚ to 60 C˚ (-4 F˚ to 140 F˚)
Power requirement: DC 7.2 V (Battery operation), DC 8.4 V (AC adaptor)
Power consumption: 11.6 W (during camera recording)
Dimensions (w x h x d): 216 x 237 x 474 mm (8 5/8 x 9 3/8 x 18 3/4 inches)
Mass: Approx. 3.6 kg (7 lb 15 oz) (without a tape and batteries)
Approx. 4.7 kg (10 lb 8 oz)
(with a tape and three NP-F950 in NPA-10000/B)
SUPPLIED ACCESSORIES:
RMT-806 Wireless Remote Controller
AV stereo cable
S cable
R6 batteries (2)
Lens cap
Shoulder pad
Side pad
Operation manual
Features and specifications subject to change without notice.
Sony, Steady Shot, i.LINK and DVCAM are trademarks of Sony Corporation.
All rights reserved. Reproduction in whole or in part without written
permission from Sony is prohibited.
PDVM-12ME/22ME/32ME/40ME
Digital Video Cassette (Mini size)
PDV-34ME/64ME/94ME/124ME/184ME
Digital Video Cassette (Standard size)
PDVM-32N/40N
Digital Video Cassette
(Non IC type) (Mini size)
PDV-64N/124N/184N
Digital Video Cassette
(Non IC type) (Standard size)
Dimensions
Unit: mm
