Cautions
Run all ground (earth) leads to a common
ground (earth) point.
Do not get the leads trapped under a screw, or
caught in moving parts (e.g., seat railing).
Before making connections, turn the car ignition
off to avoid short circuits.
Connect the yellow and red power supply leads
only after all other leads have been connected.
Be sure to insulate any loose unconnected leads
with electrical tape for safety.
Choose the installation location carefully so that
the unit will not interfere with normal driving
operations.
Avoid installing the unit in areas subject to dust,
dirt, excessive vibration, or high temperature,
such as in direct sunlight or near heater ducts.
Use only the supplied mounting hardware for a
safe and secure installation.
Note on the power supply lead (yellow)
When connecting this unit in combination with other
stereo components, the amperage rating of the car
circuit to which the unit is connected must be higher
than the sum of each component’s fuse amperage
rating.
Note on installing in cars with a start-stop system
The unit may restart when starting the engine from
start-stop. In this case, turn off the start-stop system of
your car.
Mounting angle adjustment
Adjust the mounting angle to less than 30°.

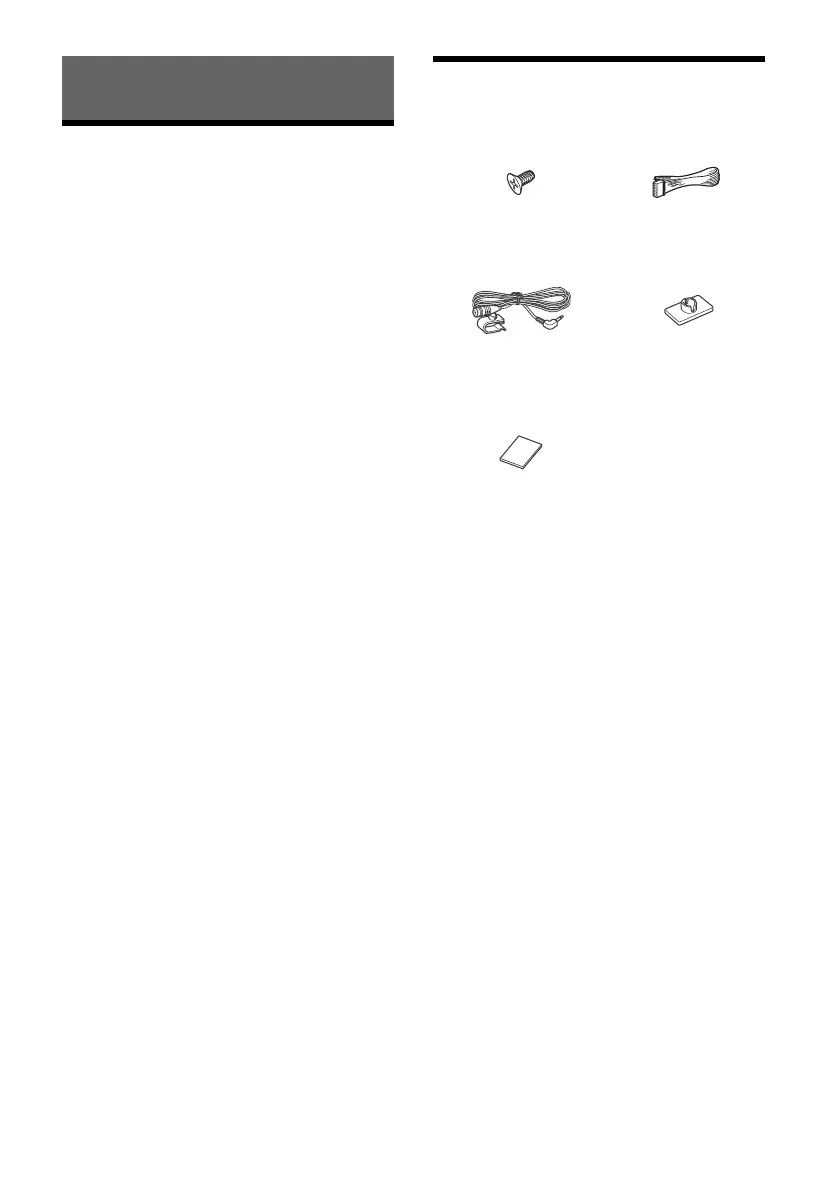

Parts List for Installation
This parts list does not include all the package
contents.
Connection/Installation
Mounting screws
(5 × max. 8 mm
(
7
/32 × max.
5
/16 in)) (4)
Power supply leads (1)
Microphone (1)
Flat-mount base (1)
Double-sided tape (1)
