DVP-K80P/K82P
4-304-29
There are a few cases that the part printed on
this diagram isn’t mounted in this model.
For printed wiring board
• : Uses unleaded solder.

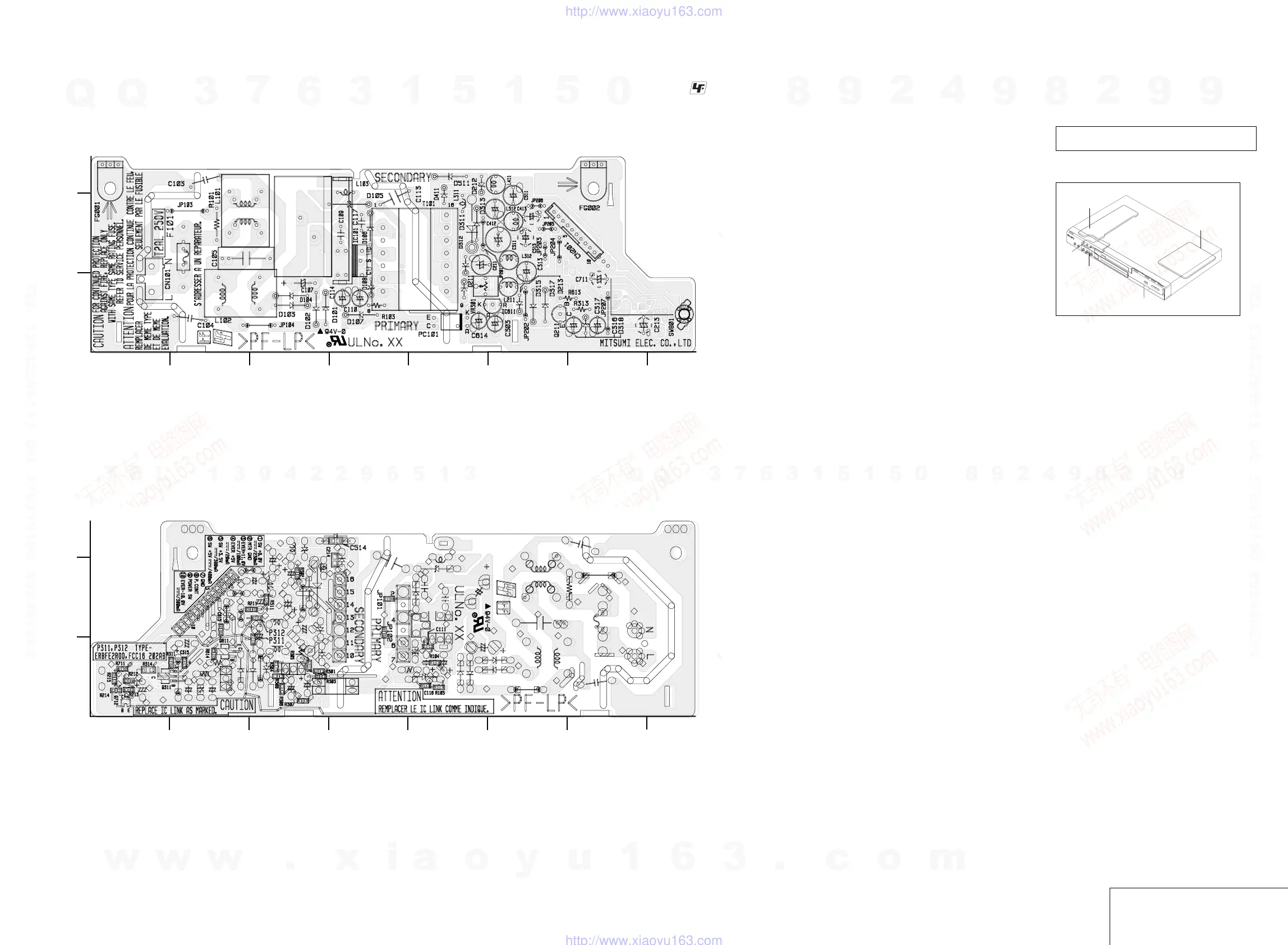

POWER BLOCK (SRV1501WW) PRINTED WIRING BOARD
POWER BOARD (SRV1501WW) (SIDE A)
POWER BOARD (SRV1501WW) (SIDE B)
POWER BOARD
(SRV1501WW)
SIDE A
IC101 B-4
IC611 A-6
Q211 A-6
D101 A-4
D102 A-3
D103 A-3
D104 A-3
D105 B-4
D106 B-4
D107 A-4
D108 A-4
D211 A-5
D212 C-5
D213 A-6
D311 B-5
D312 B-5
D313 B-5
D315 A-6
D317 A-6
D318 A-7
D411 B-5
D511 C-5
SIDE B
Q311 A-1
Q611 A-2
Q712 A-1
POWER BOARD
POWER BLOCK (SRV1501WW)
CK-151 Board
(KEY CONTROL)
MC-155 Board
(MIC-ECHO)
IF-131 Board
(IF)
MV-045 Board
(CPU, Servo-DSP, AVDEC,
DRIVE, VIDEO, AUDIO, POWER)
Power Board
