2-3
DVP-K88P/K88PM

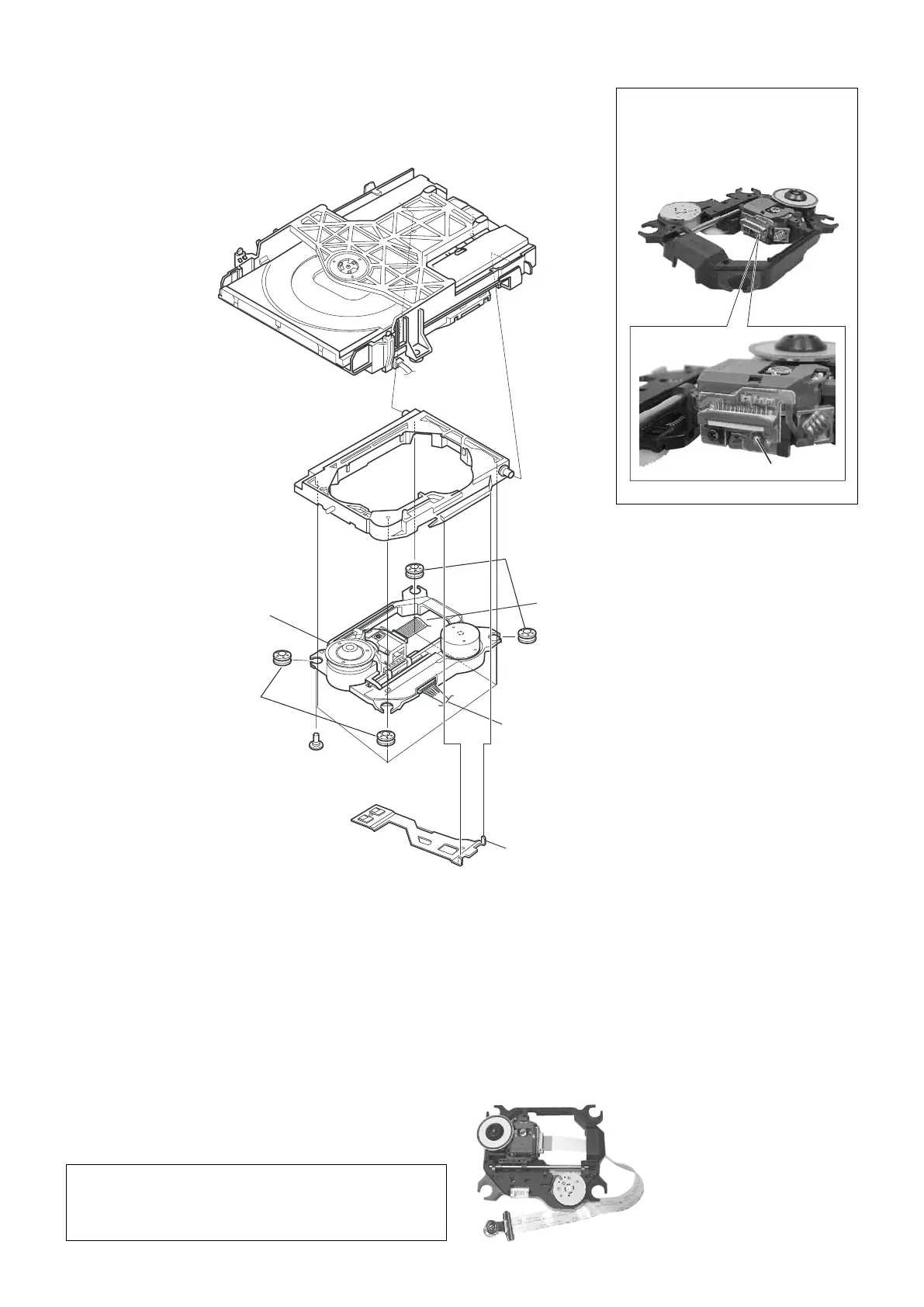

2-4. OPTICAL PICK-UP
(DEVICE, OPTICAL KHM-313CAA/C2RP)
Caution Point on the Laser Diode:
Laser Diode in the optical Device is very sensitive to Surge Current or
ElectroStatic Discharge (ESD):
After take-out FMO-008 Flat Flexible Cable from CN101 of
MV-52 board immediately ground FMO-008 Flat Flexible Cable
pattern using short clip. Metal paper clip can be used as short
clip.
5 FMO-008 Flat Flexible Cable (CN101, 24P)
4 MD-111 Harness (CN201, 6P)
1 Four Insulator Screws
6 Two Insulator
6 Two Insulator
3 Optical Device
(KHM-313CAA/C2RP)
2 FFC Holder
Shortland Position
Note:
Solder shortland before remove the
FMO-008 Flat Flaxible Cable from
24 pin BU connector.
To Next Page
