Sony DVP-K88P - Page 42

DVP-K88P/K88PM
4-6

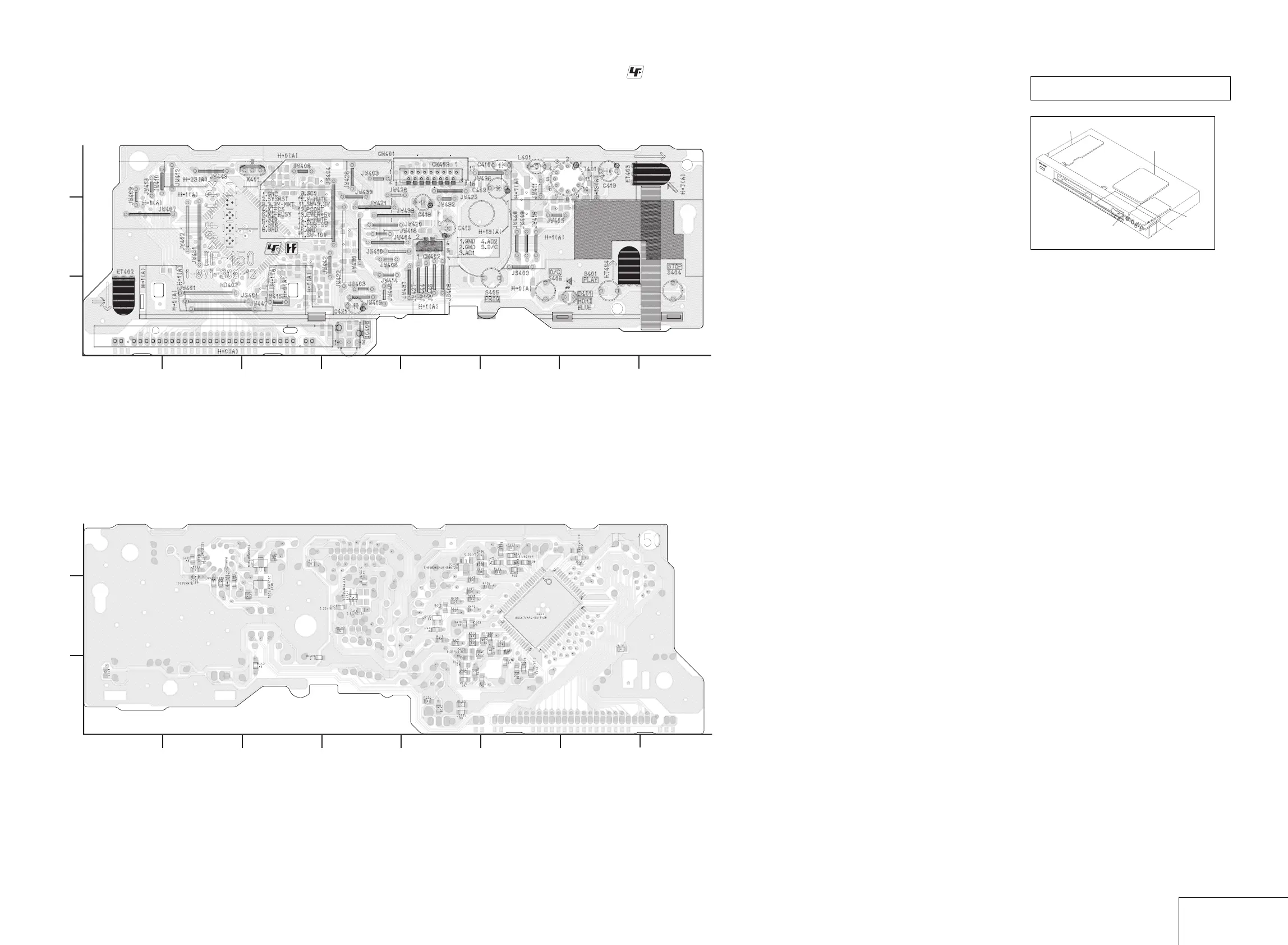

IF-150 (INTERFACE) PRINTED WIRING BOARD
4-5
INTERFACE
IF-150
IF-150 BOARD (SIDE A)
• : Uses unleaded solder.
IF-150 BOARD (SIDE B)
There are a few cases that the part printed on
this diagram isn’t mounted in this model.
For printed wiring board
IF-150 Board
(INTERFACE)
MC-174 Boar
d
(MIC-ECHO)
SW-493 Board
(SWITCH BOARD)
Power Board
MV-52 Board
(SYSTEM, DRIVE, VIDEO, AUDIO, POWER)
IF-150 BOARD
SIDE A
IC406 A-4
D401 A-7
SIDE B
IC404 B-6
IC407 B-4
IC408 C-5
Q401 B-3
Q402 C-3
Q403 B-5
D402 B-2
D403 C-2
D406 B-2
A
B
C
1
2
7685
43
A
B
C
1
2
7685
43
