DVP-K88P/K88PM
A
B
C
D
E
F
G
H
I
12 543 876 11109 141312
4-10
MC-174 (MIC-ECHO) PRINTED WIRING BOARD
4-9
MIC-ECHO
MC-174

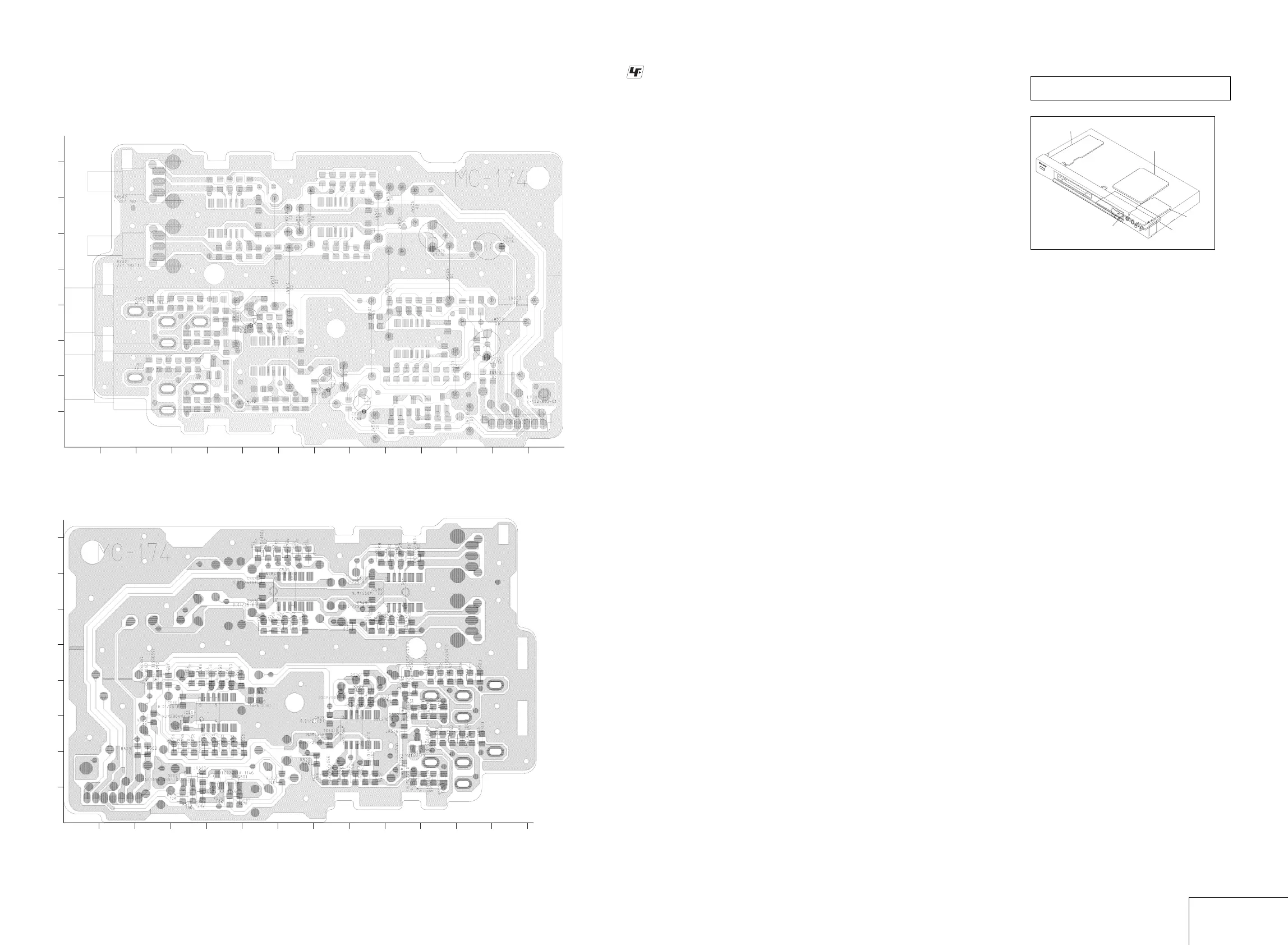

MC-174 BOARD (SIDE A)
• : Uses unleaded solder.
MC-174 BOARD (SIDE B)
There are a few cases that the part printed on
this diagram isn’t mounted in this model.
For printed wiring board
MC-174 BOARD
SIDE B
IC501 C-9
IC502 G-10
IC503 G-7
IC504 C-4
D501 B-10
D502 D-10
D503 C-10
D505 D-3
D506 D-3
Q501 B-5
Q502 B-4
Q503 B-5
IF-150 Board
(INTERFACE)
MC-174 Boar
d
(MIC-ECHO)
SW-493 Board
(SWITCH BOARD)
Power Board
MV-52 Board
(SYSTEM, DRIVE, VIDEO, AUDIO, POWER)
