Hookups
Step 4: Connecting the Audio Cords
Refer to the chart below to select the connection that best suits your system. Be sure to also read
the instructions for the components you wish to connect.
Select a connection
Select one of the following connections, through .

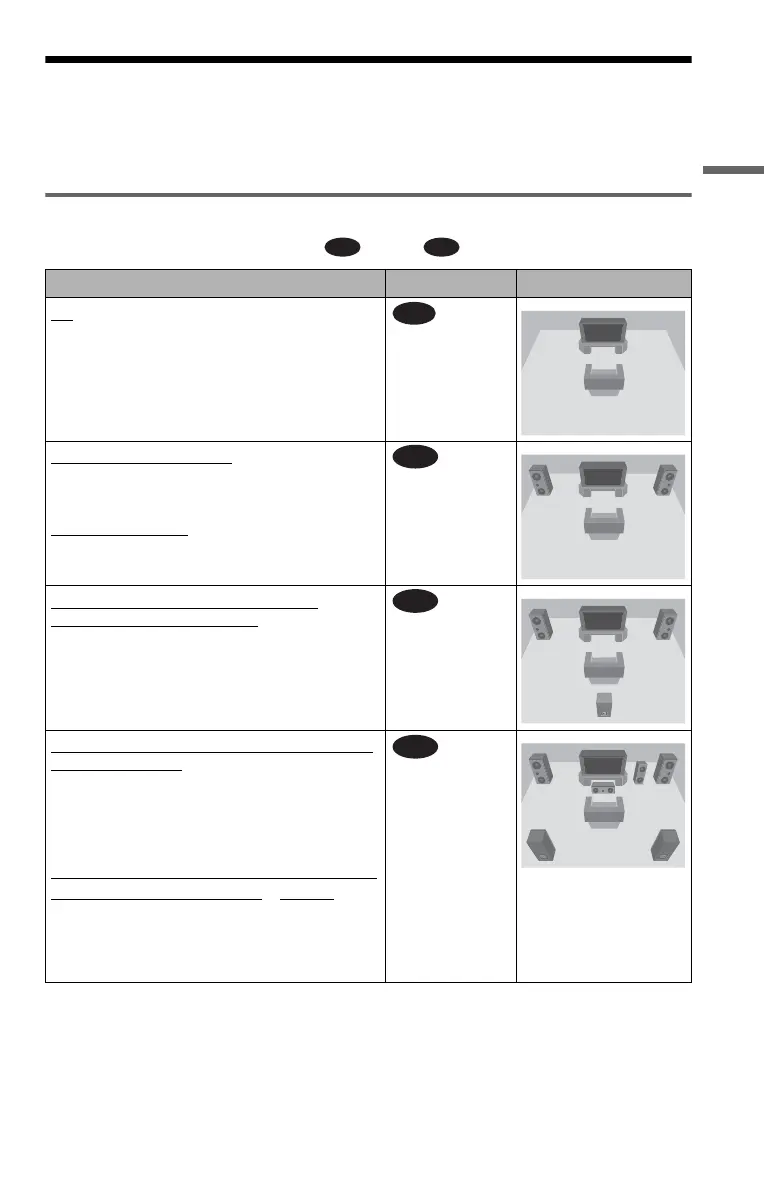

Components to be connected Connection Your setup (example)
TV
• Surround effects:
– TVS DYNAMIC (page 54)
– TVS WIDE (page 54)
(page 25)
Stereo amplifier (receiver)
and two speakers
• Surround effects:
– TVS STANDARD (page 54)
or
MD deck/DAT deck
• Surround effects:
– TVS STANDARD (page 54)
(page 26)
AV amplifier (receiver) having a Dolby
*
1
Surround (Pro Logic) decoder
and 3 to 6
speakers
• Surround effects:
– Dolby Surround (Pro Logic) (page 89)
(page 27)
AV amplifier (receiver) with 5.1 ch input jacks
and 4 to 6 speakers
• Surround effects:
– Dolby Digital (5.1 ch) (page 89)
– DTS (5.1 ch) (page 89)
– Super Audio CD Multi channel (page 89)
or
AV amplifier (receiver) with digital input jacks
having a Dolby Digital, or DTS*
2
decoder and 6
speakers
• Surround effects:
– Dolby Digital (5.1 ch) (page 89)
– DTS (5.1 ch) (page 89)
(page 28)
A D
A
B
C
D
,continued
To Next Page
