HCD-EX6/EX6T/EX8/EX8T/EX9/EX9T
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
251 1-840-387-11 MECHANICAL, CD
252 2-632-062-11 BELT (DLM3A)
253 4-227-549-31 INSULATOR
254 4-227-045-31 SPRING (INSULATOR), COIL
255 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING
256 1-834-268-21 WIRE (FLAT TYPE) (16 CORE)
257 A-1748-699-A BD74 BOARD, COMPLETE
258 3-080-204-31 SCREW, TAPPING, P2
0 259 A-1780-028-A OPTICAL PICK-UP (DA11MMVGP)
S001 1-771-853-11 SWITCH, DETECTION (LIMIT)

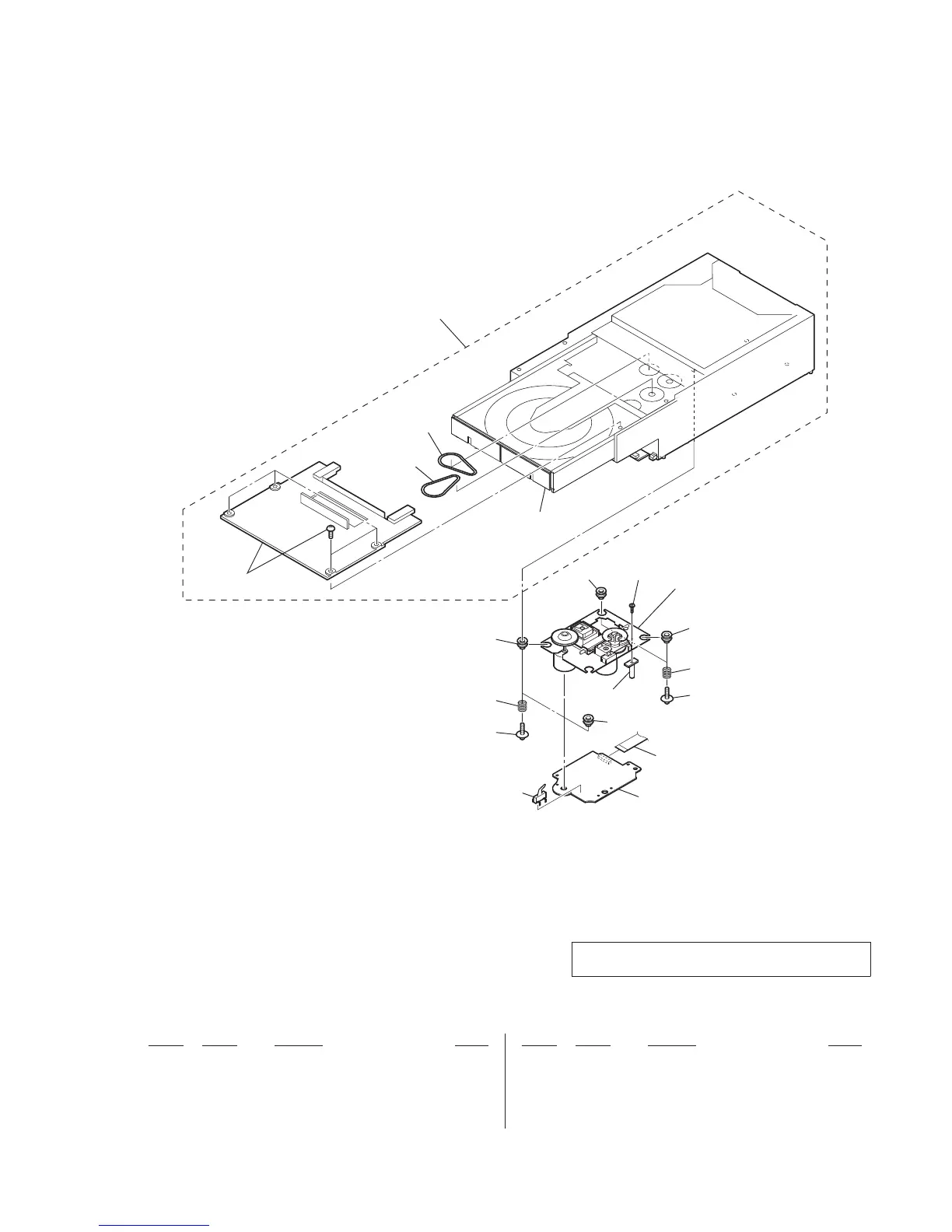

7-6. CD MECHANISM SECTION (CDM88CL-D1BD74UR)
not supplied
S001
not supplied
not supplied
251
252
252
253
253
254
255
258
253
253
254
255
256
257
259
Note: If the wire (fl at type) was replaced, fold it some as the
wire (fl at type) before replacement.
