Note: Follow the disassembly procedure in the numerical order given.

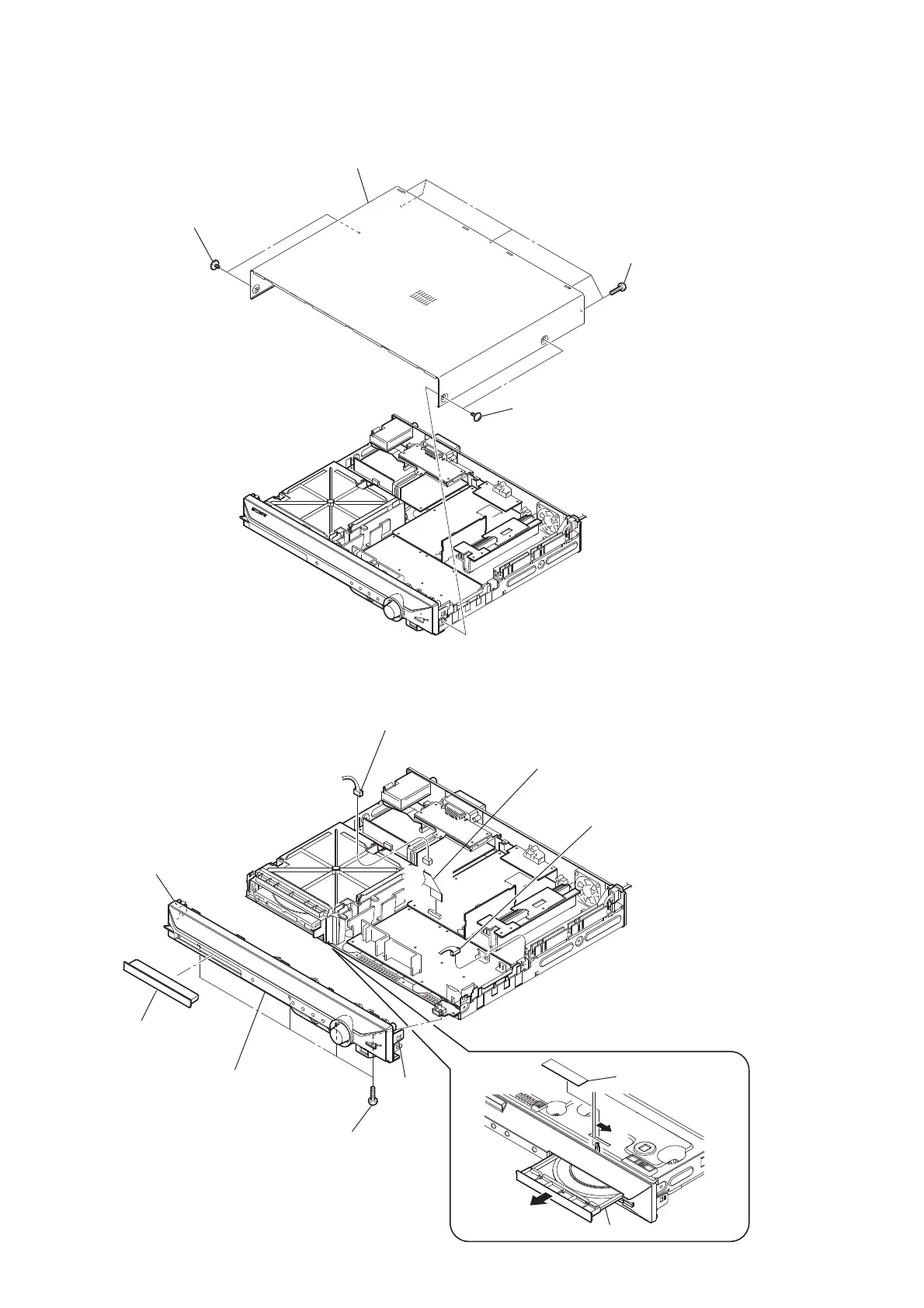

2-1. CASE
2-2. FRONT PANEL SECTION
 two screws
(case 3 TP2)
 two screws
(case 3 TP2)
 five screws
(BV/ring)
 case
 four screws
(+BV3 (3-CR))
 front panel section
 claw
 claw
 loading panel
 CN4014 (4P) (FZ900KW)
CN4013 (5P) (FZ900M)
 CN3001 (3P) (FZ900KW)
 wire (flat type)(19 core)
(CN507)
 label
tray


