HCD-LX5/LX6/LX30/LX50

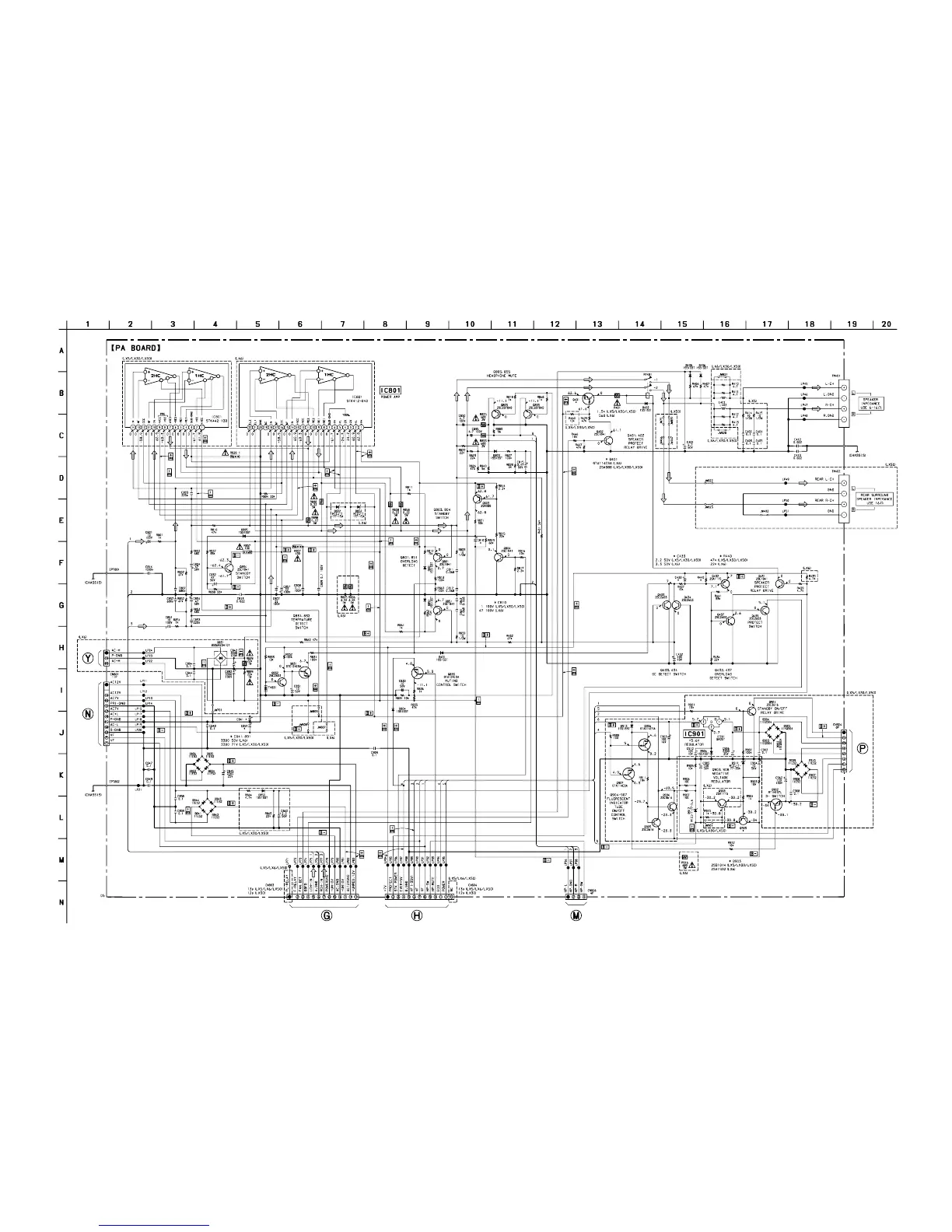

4-23. SCHEMATIC DIAGRAM – PA Board –
• Voltages are dc with respect to ground under no-signal
(detuned) conditions.
no mark : FM
(Page 22) (Page 22) (Page 31)
(Page 35)
