HCD-MX700Ni/MX750Ni
5

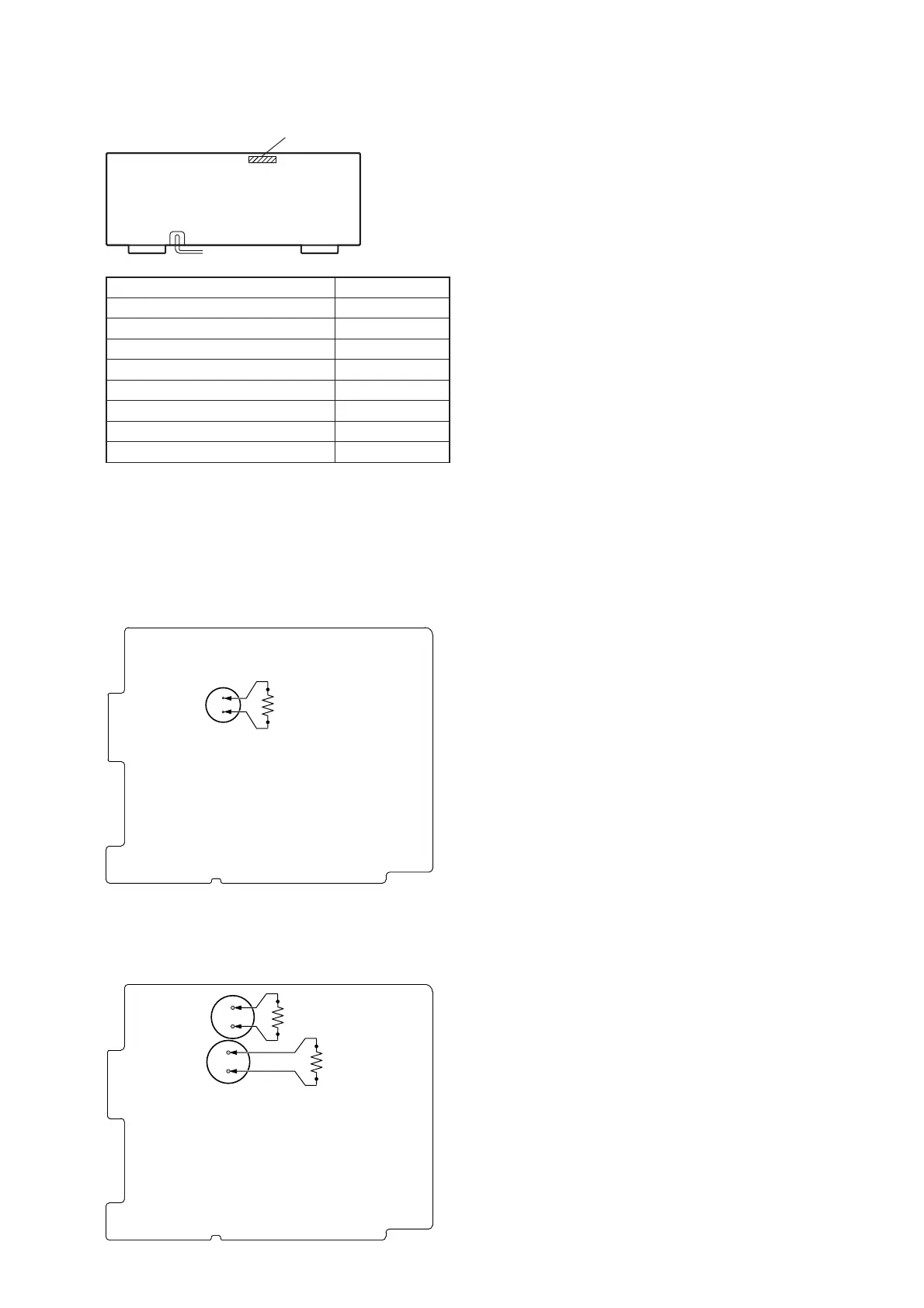

CAPACITOR ELECTRICAL DISCHARGE PROCESSING
When checking the board, the electrical discharge is necessary for the electric shock prevention.
Connect the resistors referring to the fi gure below.
• POWER board (C10) (AEP and UK models)
Both ends of respective capacitors.
• POWER board (C11, C12) (Except AEP and UK models)
Both ends of respective capacitors.
MODEL IDENTIFICATION
PART No.
– Back Panel –
Model Part No.
HCD-MX700Ni: AEP model
4-189-496-0[]
HCD-MX700Ni: US model
4-189-496-1[]
HCD-MX700Ni: Canadian model
4-189-496-2[]
HCD-MX700Ni: Taiwan model
4-189-496-4[]
HCD-MX700Ni: Latin American model
4-189-496-5[]
HCD-MX700Ni: Brazilian model
4-189-496-6[]
HCD-MX750Ni: AEP, UK models
4-189-496-7[]
HCD-MX750Ni: Australian model
4-189-496-8[]
800 :/2 W
800 :/2 W
C12
C11
– POWER Board (Conductor Side) –
800 :/2 W
C10
– POWER Board (Conductor Side) –
To Next Page
