5-2
5. REPAIR PARTS LIST
HDR-HC1/HC1E/HC1K/HC1EK_L2
5-1-1. OVERALL ASSEMBLY
Ref. No. Part No. Description Ref. No. Part No. Description
1 2-635-562-11 SCREW (M1.7) (for BLACK)
1 3-989-735-01 SCREW (M1.7), LOCK ACE, P2 (for SILVER)
2 2-633-526-01 FRAME, SHOE
3 1-865-400-11 FP-253 FLEXIBLE BOARD
4 2-633-525-01 COVER, SHOE (BLACK)
4 2-633-525-11 COVER, SHOE (SILVER)
5 X-2059-610-1 CABINET (UPPER) ASSY (BLACK)
5 X-2059-614-1 CABINET (UPPER) ASSY (SILVER)
6 2-633-531-01 LID, CPC
7 2-633-544-01 SHEET (DD)
8 3-989-735-01 SCREW (M1.7), LOCK ACE, P2
9 2-635-562-31 SCREW (M1.7)
10 2-635-562-11 SCREW (M1.7)
11 2-635-562-31 SCREW (M1.7) (for BLACK)
11 2-599-475-31 SCREW (M1.7) (for SILVER)
12 2-636-395-01 SHEET (HS)
CN9001 1-818-890-11 CONNECTOR, EXTERNAL (HOT SHOE)

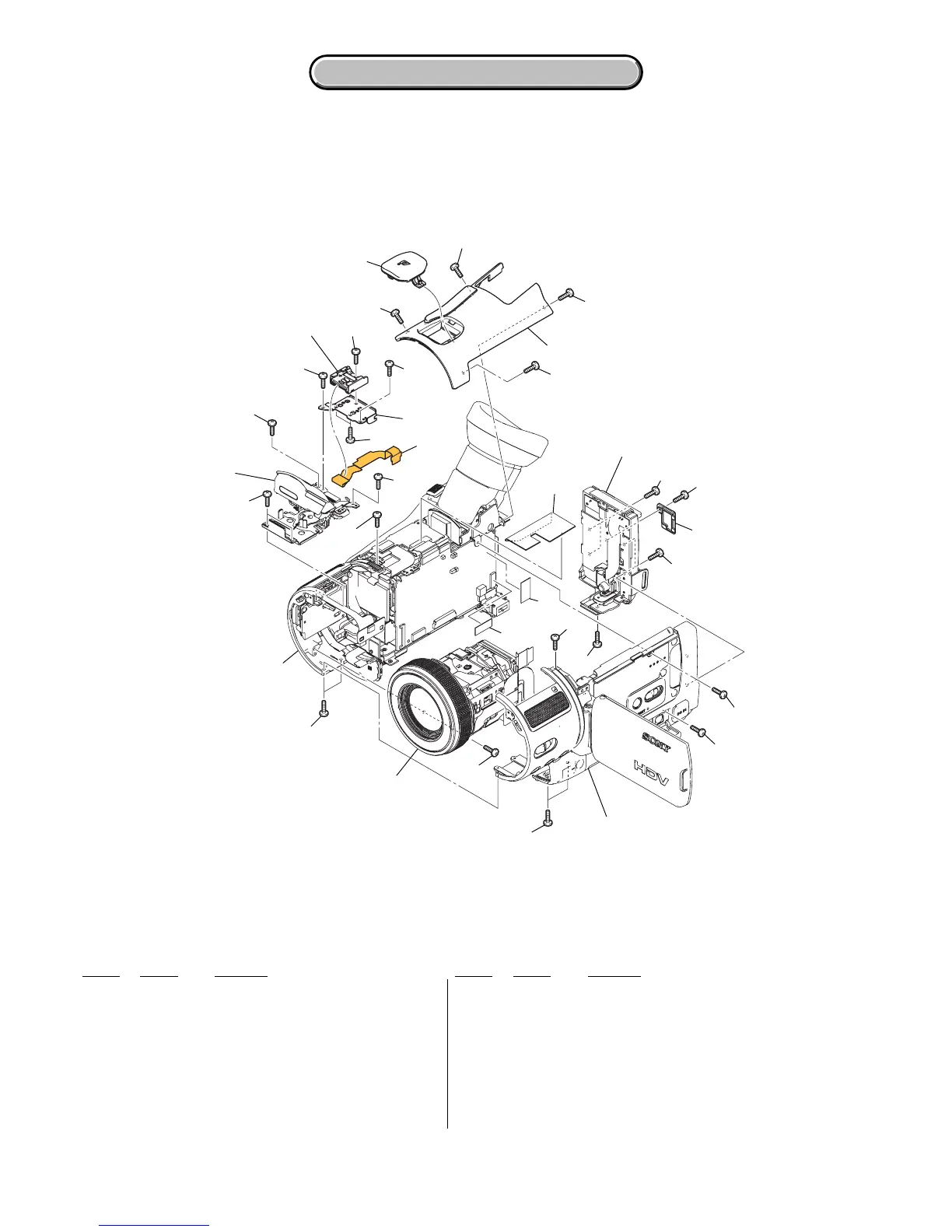

5-1. EXPLODED VIEWS
1
10
10
9
8
10
10
10
11
9
11
11
9
9
9
10
12
9
10
9
11
2
3
4
5
6
7
8
Battery panel block assembly
(See page 5-14.)
MD frame block
(See page 5-3.)
Lens block assembly
(See page 5-4.)
Stroboscope block
assembly
(See page 5-12.)
Cabinet (R) block-1
(See page 5-5.)
ns
CN9001
11
