Sony HDR-HC3 Service Manual

2-8E
HDR-HC3/HC3E/HC3K/HC3EK_L2
EXPLODED VIEW
HARDWARE LIST

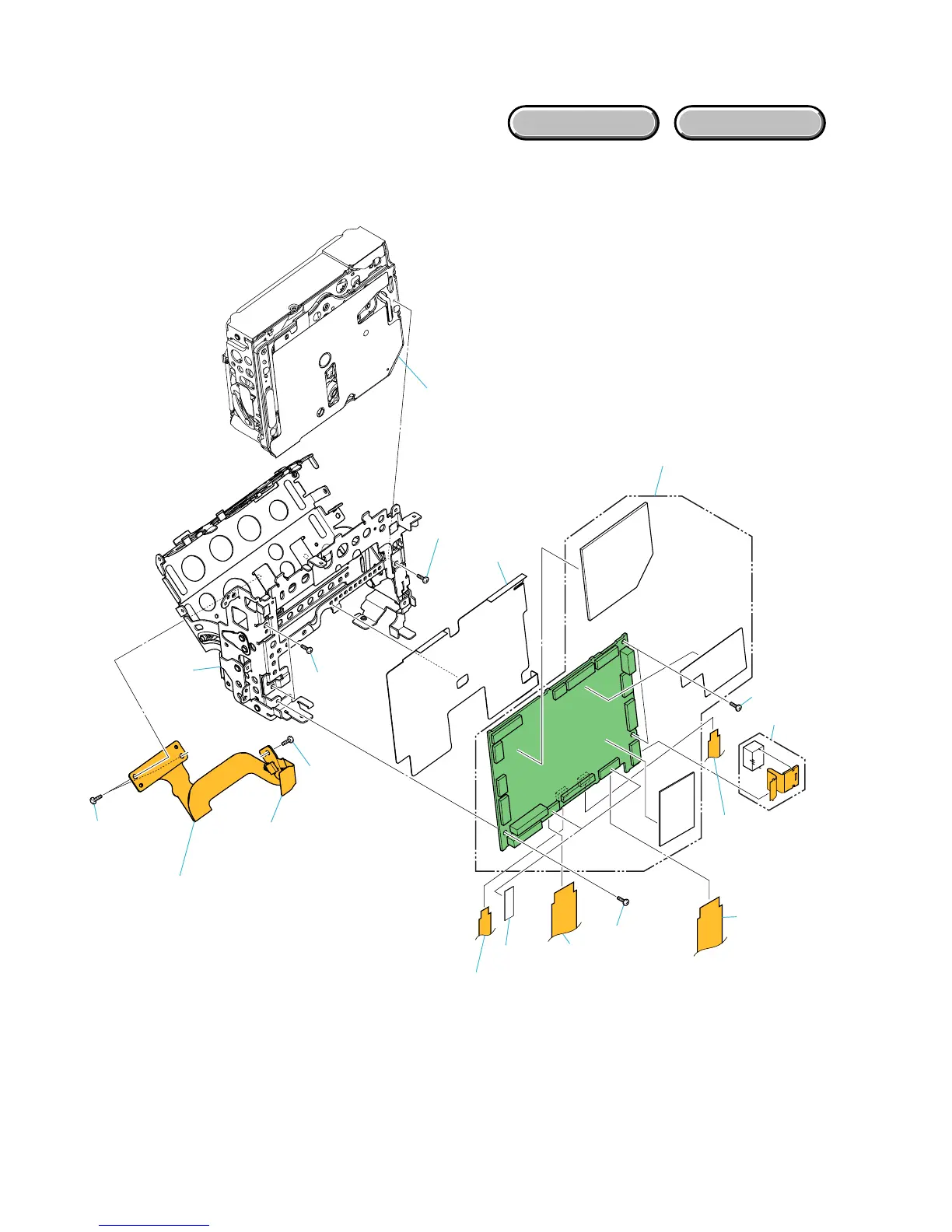

2-1-7. MD FRAME BLOCK
VC-441
2 VC-441 Board
1 FP-418 Flexible Board
1-3 (#3)
1-1
2-1
2-2
2-3
2-4
2-7
2-5 (#3)
2-6 (#3)
3 Mechanism Deck
3-1
3-4
3-2 (#15)
3-3 (#15)
1-2 (#3)
2-8
Follow the disassembly in the numerical order given.
1 FP-418 flexible board (1-1 to 1-3)
2 VC-441 board (2-1 to 2-8)
3 Mechanism deck (3-1 to 3-4)
