Unit: mm (inches)

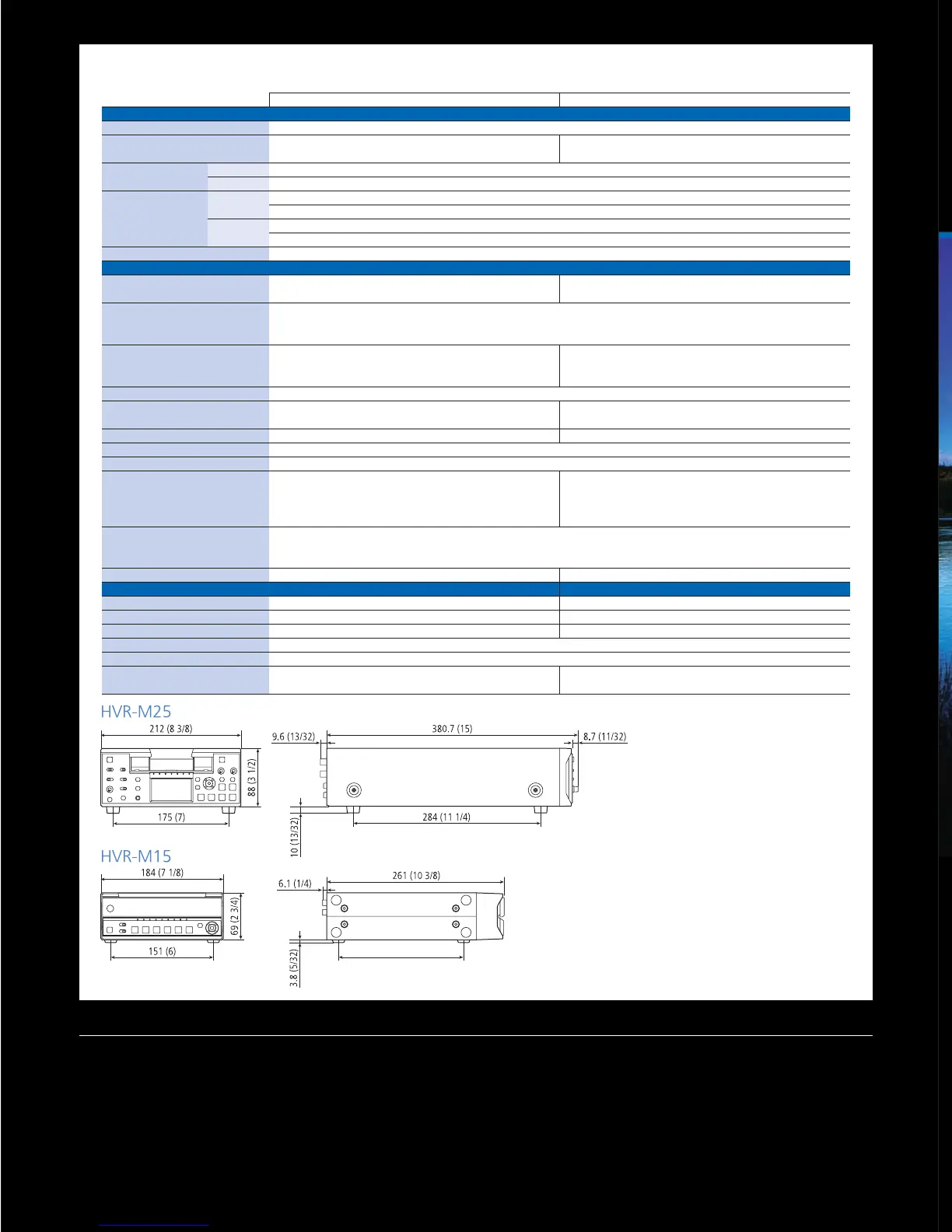

SPECIFICATIONS
HVR-M25 HVR-M15
Recording/playback performance
Recording format 1080/60i, 1080/50i, 480/60i (NTSC), 576/50i (PAL)
Playout/down conversion format 1080/60i, 1080/50i, 480/60i (NTSC), 576/50i (PAL), 480/60P, 576/50P,
1080/60i, 1080/50i, 480/60i (NTSC), 576/50i (PAL), 480/60P, 576/50P
720/60P, 720/50P
Tape speed HDV/DV SP Max. 18.812 mm/s
DVCAM Max. 28.218 mm/s
Playback/recording time HDV/DV SP Max. 276 min with PHDV-276DM cassette
Max. 63 min with PHDVM-63DM cassette
DVCAM Max. 184 min with PHDV-276DM cassette
Max. 41 min with PHDVM-63DM cassette
Fast forward/rewind time Approx. 2 min with PHDV-276DM cassette
Input/output connectors/devices
Video input/output BNC x 2 RCA pin x 2
Video signal: 1 Vp-p, 75 Ω unbalanced, sync negative Video signal: 1 Vp-p, 75 Ω unbalanced, sync negative
S-video input/output Mini-DIN 4-pin x 2
Y: 1 Vp-p, 75 Ω unbalanced, sync negative
C: 0.286 Vp-p (NTSC), 0.3 Vp-p (PAL), 75 Ω unbalanced,
Component video output BNC x 3 RCA pin x 3
Y: 1 Vp-p (0.3 V, sync negative) Y: 1 Vp-p (0.3 V, sync negative)
Pr/Pb (Cr/Cb): 700 mVp-p (100% color bar), input impedance 75 Ω Pr/Pb (Cr/Cb): 700 mVp-p (100% color bar), input impedance 75 Ω
i.LINK 4-pin
HDMI output
19-pin (type A), video: 1080/60i, 1080/50i, 480/60i (NTSC), 576/50i (PAL),
—
720/60P, 720/50P, 480/60P, 576/50P, audio: PCM 48 kHz/16-bit
Phones Stereo minijack (
φ
3.5 mm), 8 Ω loading —
LANC Stereo mini-minijack (
φ
2.5 mm)
Control S Stereo minijack (
φ
3.5 mm)
Audio input RCA pin x 2 RCA pin x 2
Input level: -10/-2/+4 dBu, input impedance: min. 47 kΩ unbalanced, Input level: -10 dBu, input impedance: min. 10 kΩ unbalanced,
max. input level: -10: +18 dBu (approx. 6 Vrms), max input level: +16 dBu (approx. 5 Vrms) in 60i mode,
-2: +24 dBu (approx. 12.5 Vrms), +4: +30 dBu (approx. 25 Vrms) +14 dBu (approx. 4 Vrms) in 50i mode
Audio output RCA pin x 2
Output level: -10 dBu (full bit -20 dB), impedance 47 kΩ, unbalanced in 60i mode, -10 dBu (full bit -18 dB), impedance 47 kΩ, unbalanced in 50i mode
Impedance: max. 1 kΩ unbalanced
LCD monitor 2.7-inch type, approx. 211,200 dots (960 x 220), Clear Photo LCD Plus —
General
Mass Approx. 4.3 kg (9 lb 8 oz) Approx. 2.3 kg (5 lb 1 oz)
Powere requirements AC 120 V, 60 Hz DC 8.4 V
Power consumption 12 W (playback mode with LCD monitor on) 8 W (playback mode)
Operating temperature 5 to 40°C (41 to 104°K)
Storage temperature -20 to +60°C (-4 to 140°K)
Supplied accessories Remote commander (1), power cord (1), size AA batteries (2), Remote commander (1), AC adaptor (1), power cord (1), stand (1),
cleaning cassette (1), operating instructions (1) size AA batteries (2), cleaning cassette (1), operating instructions (1)
