Connect the supplied AM loop antenna and FM wire antenna.
* The shape of connector varies depending on the area code.
Notes
• To prevent noise pickup, keep the AM loop antenna away from the receiver and other components.
• Be sure to fully extend the FM wire antenna.
• After connecting the FM wire antenna, keep it as horizontal as possible.
2: Connecting the antennas
AM
U
OPT IN
TV/SAT
DVDVIDEO
AUDIO IN
DIGITAL
ANTENNA
DVD
RL
VIDEO
IN
SUB
WOOFER
OUT
MONITOR
OUT
OPT IN COAX IN
*

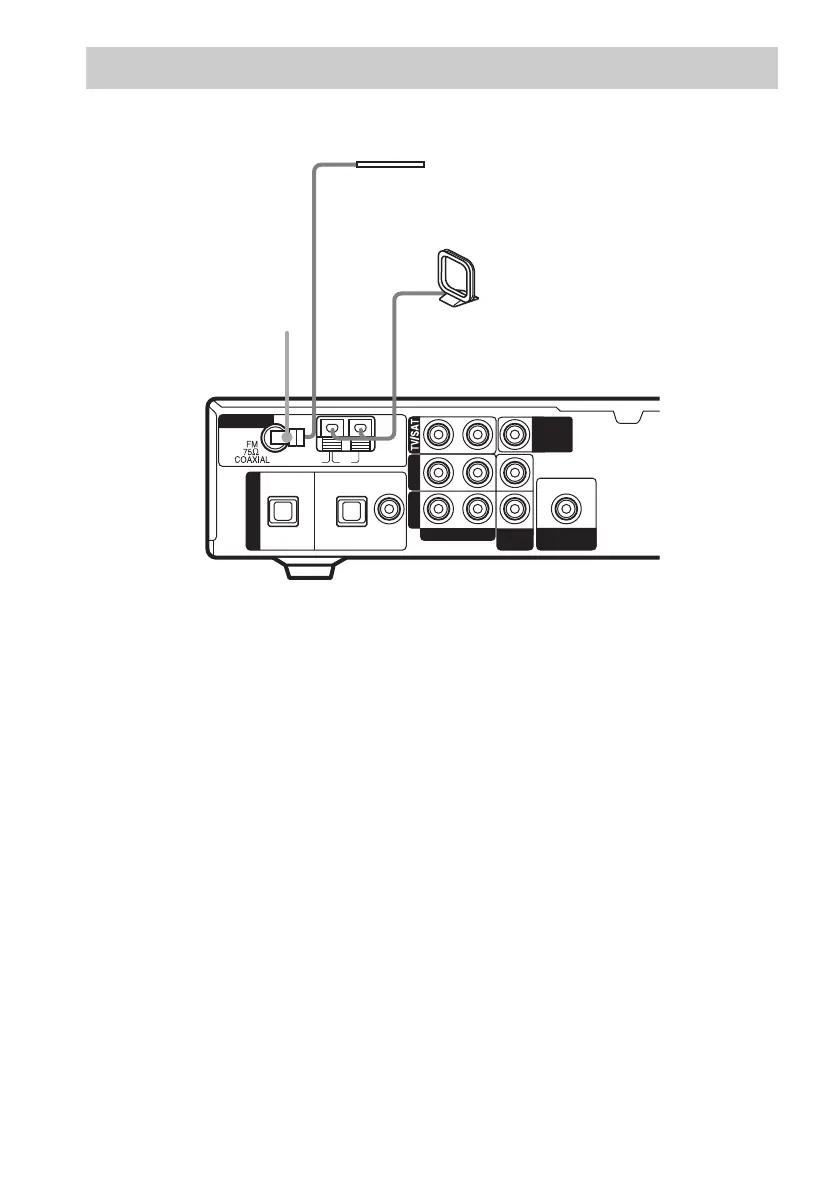

AM loop antenna
(supplied)
FM wire antenna
(supplied)
