Sony HXR-MC1 Operating Guide Service Manual

2-9E
HXR-MC1/MC1P
EXPLODED VIEW
HARDWARE LIST

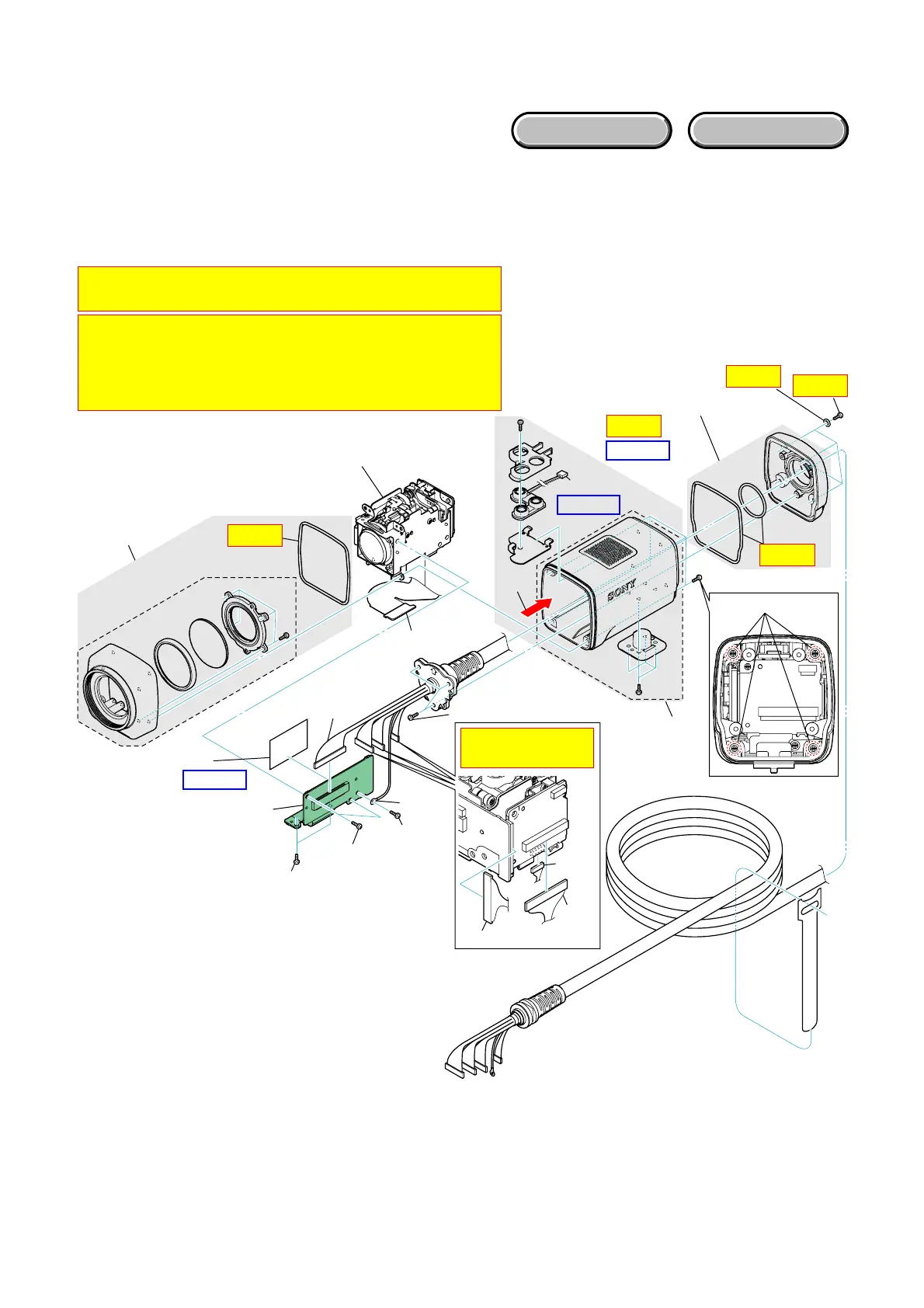

2-2-7. CAMERA BLOCK SECTION
Follow the disassembly in the numerical order given.
1 Cabinet (RE) (1-1 to 1-3)
2 Lens Block (2-1 to 2-13)
3 CC-109 Board (3-1 to 3-2)
C
C
-109
2 Lens Block
3-1
3-2E
3 CC-109 Board
1-1
(#157)
1-3E(#11)
1-2
1 Cabinet (RE)
Note 1:
Replace it for new parts when there is damage in the O ring.
Note 2:
The screw that stops the Cabinet (RE) is not removed easily
because there is O ring.
Note that the harness might be cut when it strongly pulls it
enough when detaching the Cabinet (RE).
Caution:
Don't cut harness.
HELP11
HELP11
HELP10
2-1
2-2 (#11)
2-10
(#3)
2-13E
(#3)
2-11
(#69)
2-12
2-3
2-5
2-4
2-6
2-7
2-8
2-9
Note 1
Note 1
Note 1
Note 2
Note 2
Ver. 1.1 2009.01

Sony HXR-MC1 Operating Guide Specifications

General

Category	Camcorder
Lens	Carl Zeiss Vario-Sonnar T*
Optical Zoom	10x
Microphone	Built-in stereo microphone
Product Name	Sony HXR-MC1
Recording Media	Memory Stick PRO Duo
Maximum Aperture	F1.8 to F2.9
Focus	Auto, Manual
Exposure Control	Auto, Manual
White Balance	Auto, Indoor, Outdoor, One Push
Audio Recording	Dolby Digital 2ch
USB Interface	Yes
HDMI Output	Yes
