AM loop antenna
Extend the FM lead antenna
horizontally
FM antenna
AM loop antenna
Left speaker

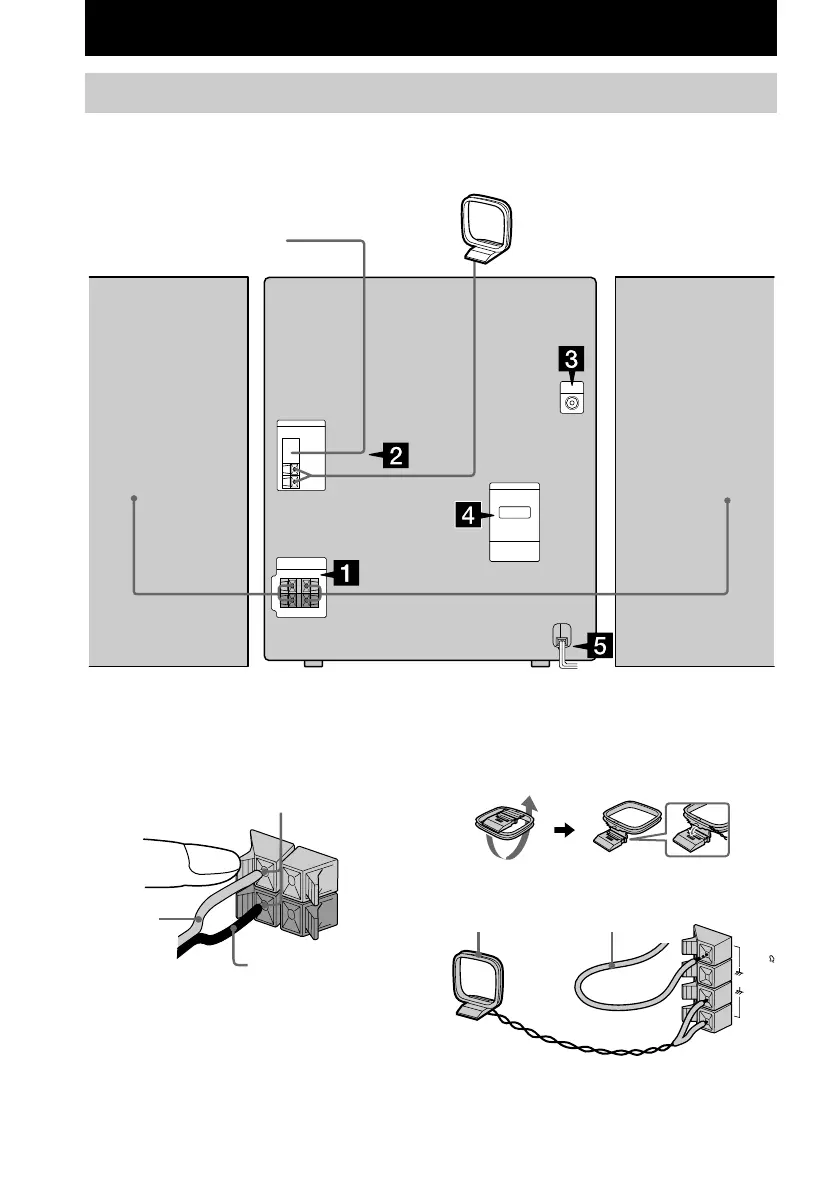

1 Connect the speakers.
Connect the speaker cords to the SPEAKER
jacks as shown below.
R
+
L
+
–
Insert only the stripped portion
Red/Solid
(3)
Black/Stripe (#)
Getting Started
Right speaker
2 Connect the FM/AM antennas.
Set up the AM loop antenna, then connect
it.
Jack type A
F
M
7
5
A
M
Hooking up the system
Perform the following procedure 1 to 6 to hook up your system using the supplied cords and
accessories.
4
To Next Page
