6-1
SECTION 6
DIFFERENT PARTS LIST

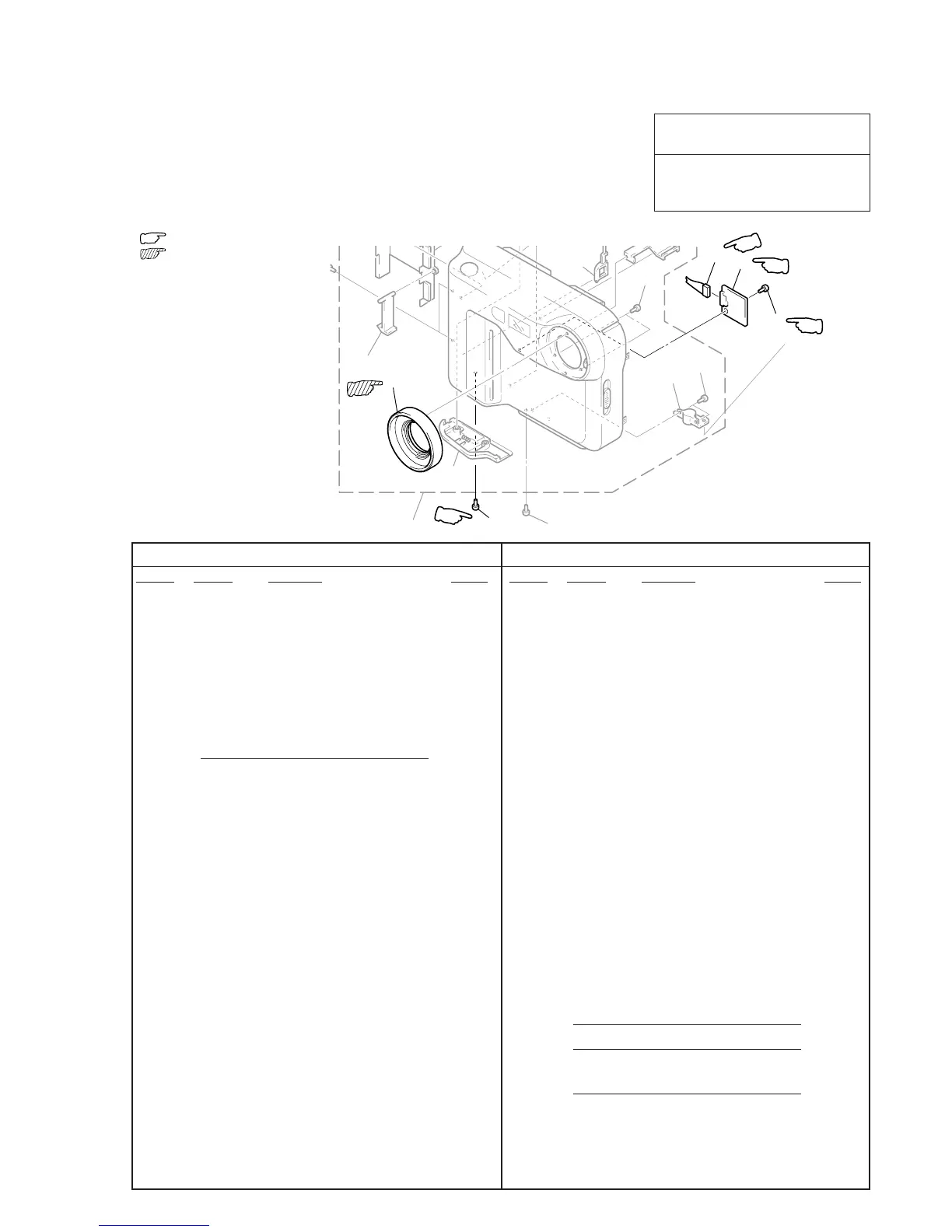

6-1. EXPLODED VIEWS
MVC-FD73
Note:
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
The components identified by mark ! or
dotted line with mark ! are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
! sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
• The mechanical parts with no reference number
in the exploded views are not supplied.
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
6-1-1. CABINET (FRONT) SECTION
1 X-3949-574-1 CABINET (FRONT) ASSY
2 X-3949-829-1 RING ASSY, LENS
9 3-713-791-31 SCREW (M1.7x6), TAPPING, P2
11 1-694-297-21 TERMINAL BOARD, BATTERY
12 A-7073-966-A RL-53 BOARD, COMPLETE
14 1-959-715-11 HARNESS (FF-195)
17 X-3949-587-1 LID ASSY BATTERY
18 A-7073-965-A FU-134 BOARD, COMPLETE
51 A-7094-350-A FC-69 BOARD, COMPLETE (SERVICE)
54 X-3948-765-2 FRAME ASSY, MAIN
58 X-3949-575-2 CABINET (REAR) ASSY
60 3-054-882-02 CABINET, SIDE
62 3-050-500-11 KNOB, EJECT
63 3-050-906-11 BUTTON, EJECT LOCK
67 3-050-488-11 LID, LITHIUM
71 A-7094-351-A PK-46 (C) BOARD, COMPLETE
LCD901 1-803-036-21 INDICATOR MODULE, LIQUID CRYSTAL
! ND801 1-517-817-21 TUBE, FLUORESCENT, COLD CATHODE (2.5)
108 A-7073-962-A CD-227 BOARD, COMPLETE
1 X-3948-761-1 CABINET (FRONT) ASSY
2 X-3948-906-1 RING ASSY, LENS
9 3-051-435-01 SCREW (M1.7)
11 1-694-297-11 TERMINAL BOARD, BATTERY
12 A-7073-591-A RL-50 BOARD, COMPLETE
14 1-475-842-11 MF BLOCK
17 X-3948-918-1 LID ASSY, BATTERY
18
6-1-2. CABINET (REAR) SECTION
51 A-7093-879-A FC-66 BOARD, COMPLETE (SERVICE)
54 X-3948-765-1 FRAME ASSY, MAIN
58 X-3948-762-1 CABINET (REAR) ASSY
60 3-050-456-01 CABINET, SIDE
62 3-050-500-01 KNOB, EJECT
63 3-050-906-01 BUTTON, EJECT LOCK
67 3-050-488-01 LID, LITHIUM
71 A-7093-880-A PK-43 (CASIO) BOARD, COMPLETE (SERVICE)
71 A-7093-881-A PK-43 (SHARP) BOARD, COMPLETE (SERVICE)
73 3-051-700-02 SHEET, BLIND
LCD901 1-803-036-21 INDICATOR MODULE, LIQUID CRYSTAL (SHARP)
LCD901 1-803-184-21 INDICATOR MODULE, LIQUID CRYSTAL (CASIO)
! ND801 1-517-787-11 TUBE, FLUORESCENT, COLD CATHODE
6-1-2. CABINET (REAR) SECTION
108 A-7073-962-A CD-227 BOARD, COMPLETE
MVC-FD71 MVC-FD73
: Points added parts.
: Point changed parts.
(See original service manual pages 6-1 to 6-3)
FU-134
board
15
15
2
4
4
10
18
14
9
1
3
To Next Page
