SLT-A33/A33L/A33Y/A55/A55V/A55L/A55VL/A55VY_L3

4-8E

5.5V (IS_5.5V)

POWER (4/5)

(PAGE 4-7)

POWER (1/5)

(PAGE 4-4)

D_1.8V_SLVDS

4.5V REG: SLT-A33/A33L/A33Y

5.0V REG: SLT-A55/A55V/A55L

/A55VL/A55VY

(14/22)

IC2402

IS_PWR_ON6

4.5V REG:

SLT-A33/A33L/A33Y

5.0V REG: SLT-A55/A55V/A55L

/A55VL/A55VY

(14/22)

IC2401

VDDSUB(A4.5V)

IS_PWR_ON1

IS_2.5V/1.8V

D_1.8V

IS_PWR_ON2

3.15V (A_3.15V)

VDDDA_ON

VREF_ON

VDDCP/SV/CM_A4.5V

VDDSUB(A4.5V)

VDDVREF(A4.5V)

L4201

L4202

4.5V REG

IC4203 , Q4210

2.5V REG

IC4201 , Q4209

14M CMOS IMAGER

CP001

CN2401 CN4203

CN2402

CN4202

4, 58, 915 - 18 21, 22

2, 36, 713 - 16 19, 20

25, 26

23, 24

ISP-001 FLEXIBLE

BOARD

ISL-001 FLEXIBLE

BOARD

IS-077 BOARD

VDDCP/SV/CM_A4.5V

VDDVREF(A4.5V)

VDDDA(2.5V)

VDDCB/CN/SN/SC/PL/PVLM(2.5V)

VDDIO/LV(D1.8V)

VDDREF_ON

VDDDA_ON

VDDDA(A2.5V)

VDDCB(A2.5V)

VDD_1.8

R2407

X4201

27MHz

VDDSUB(A5.0V)

VREF/DA_ON

VDDCP/SV/CM(A5.0V)

VDDSUB(A5.0V)

VDDVREF/DA(A5.0V)

L4701

L4702

5.0V REG

IC4701 , Q4709

16M CMOS IMAGER

IC4501

CN2401 CN4703

CN2402 CN4702

4, 58, 9

2, 36, 7

25, 26

23, 24

ISP-001 FLEXIBLE

BOARD

ISL-001 FLEXIBLE

BOARD

IS-073 BOARD

VDDCP/SV/CM(5.0V)

VDDREF/DA(5.0V)

VDDLV(1.8V)

VDDREF_ON/DA_ON

VDD(1.8V)

X4701

33MHz

AM-022 BOARD (5/5)

D5003

(SELF-TIMER)

R5017

REMOTE

SENSOR

IC5002

UNREG_OUT_FL

11 - 13

POWER (1/5)

(PAGE 4-4)

D_3.15V

4 - 6

STC-002 FLEXIBLE

BOARD

UNREG_OUT_FL

T5001

XE_A

L5001

D5001 D5002

1310

D_3.15V

7 IGBT_IN

6 START

CHARGE CONTROL,

FLASH CONTROL

IC5001

2IGBT_OUT

INT_FLASH_FULL

INT_FLASH_TRIG

INT_FLASH_CHARGE

IGBT_C

138

139

138

137

INT_FLASH_CHARGE

INT_FLASH_TRIG

INT_FLASH_FULL

POWER (2/5)

(PAGE 4-5)

D_3.15V

ST-233 BOARD FLASH UNIT

(FL86300)

INVERTER

(21/22)

IC3605

EVER_3.15V

R2425

R2429

R2421

POWER (4/5)

(PAGE 4-7)

UNREG_OUT_FL

INT_FLASH_CHARGE

INT_FLASH_TRIG

INT_FLASH_FULL

B+ SWITCH

Q2406, Q2408

B+ SWITCH

Q2407, Q2409

CN5003

CN3804

FLASH

DRIVE

Q5001

Q2403

DISCHARGE

CN5001

SLT-A33/A33L/A33Y

SLT-A55/A55V/A55L/A55VL/A55VY

15 - 18

13 - 16

VDDCB/CN/SN/SC/PL/PVLM(1.8V)

VDDCB(A1.8V)

R2426

3.15V (D_3.15V)

INVERTER

(21/22)

IC3604

C901

CHARGING

CAPACITOR

Q2401

B+ SWITCH

Q2402

B+ SWITCH

R2416R2404

R2419R2403

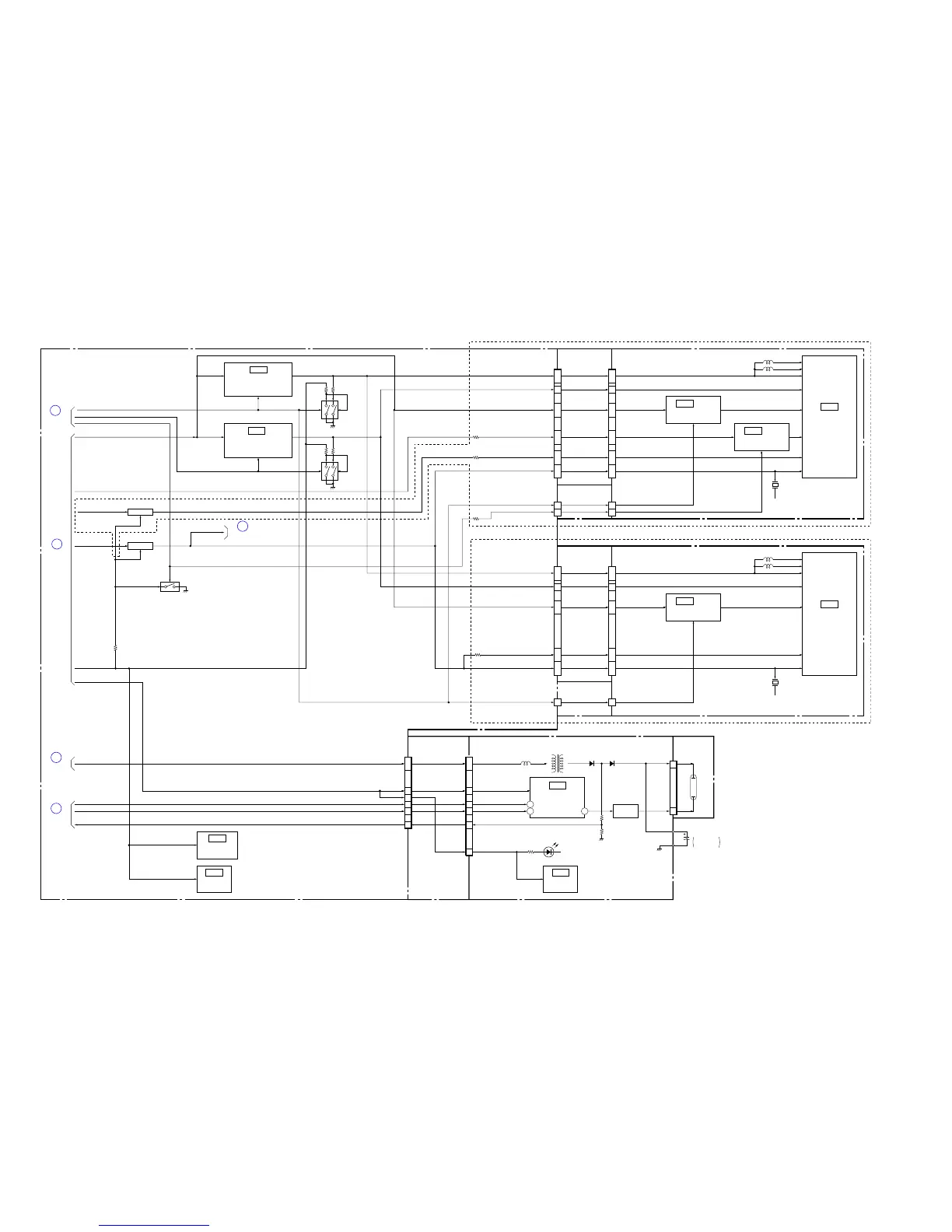

4-8. POWER BLOCK DIAGRAM (5/5) ( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located.
