Sony SLT-A55 User Manual

SLT-A33/A33L/A33Y/A55/A55V/A55L/A55VL/A55VY_L3
6-28
A
D
CC
D
B
E
A
B
F F
E
29
1 2 3 4 5 6 7 8
(22/22)
(PAGE 6-24)
CN3809
AM-022
LN8301
FLEXIBLE
(PAGE 6-27)
BL-035
HOLDER
BATTERY
BATTERY
LITHIUM
( )
BT900
LENS POWER CONTROL
B+ SWITCH
PITCH SENSOR
YAW SENSOR
D7303
CMG03(T2L,SONY,Q)
D7305
1SS420(TL3SONY.F)
D7301
D7302
R7303
1k
Q7301
MCH6305-TL-E-S
1
3
4
2 5 6
Q7302
MCH6305-TL-E-S
1
3
4
2 5 6
CN7302
14P
1 PGND
2 PGND
3 PGND
4 PGND
5 LVDD0
6 LVDD0
7 LVDD0
8 LVDD0
9 LENS_SO
10 REG_GND
11 XCS_LENS_MOUNT
12 LENS_SCK
13 LVDD1
14 LENS_SI
C7303
0.1u
C7304
10u
SE7301
4
1 2
3
C7302
XX
C7301
0.1u
SE7302
4
1 2
3
BH7301
1
2 3
LN7301
26P
1BACKUP_VDD
2REG_GND_BT
3LENS_PWR_ON_LOW
4LENS_SI
5LVDD1
6LENS_SCK
7XCS_LENS_MOUNT_CN
8REG_GND_LE
9LENS_SO_CN
10PGND
11PGND
12PGND
13PGND
14LVDD0
15LVDD0
16LVDD0
17LVDD0
18XLVDD0_PWR_ON
19XLENS_PWR_ON_SSM
20REG_GND
21GINA
22REG_GND
23GYROREG
24REG_GND
25GINB
26REG_GND
R7304
10k
R7305
10k
Note: All mounted parts are not supplied, but they are included in GY-024 flexible board.
Note: BT900 (lithium battery) is not included in GY-024 flexible board.
( )
VCC
Vref
GND
OUT VCC
GNDVref
OUT
XX MARK:NO MOUNT

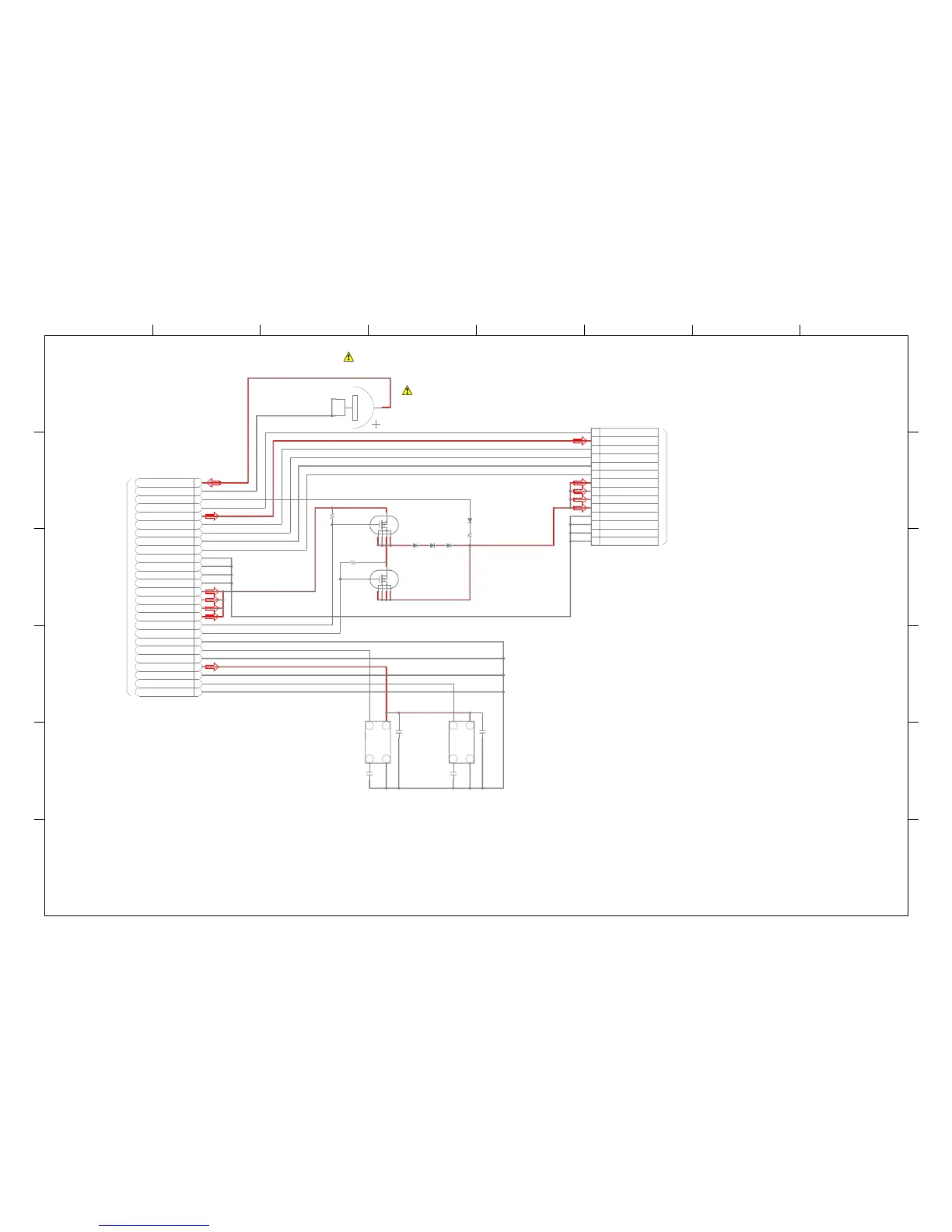

GYRO SENSOR
GY-024 FLEXIBLE BOARD

Sony SLT-A55 Specifications

General

Sensor	CMOS
Megapixels	16.2 MP
Autofocus Points	15
Continuous Shooting Speed	10 fps
LCD Screen Size	3.0 inches
Viewfinder	Electronic
Battery Life	330 shots
Max Resolution	4912 x 3264
Image Ratio w:h	3:2, 16:9
Sensor Size	APS-C (23.5 x 15.6 mm)
Focal Length Multiplier	1.5x
Articulated LCD	Tilting
Screen Dots	921, 600
Max Shutter Speed	1/4000 sec
Storage Types	SD/SDHC/SDXC, Memory Stick Pro Duo/Pro-HG Duo
USB	USB 2.0
Dimensions	124 x 92 x 85 mm
Battery	NP-FW50
ISO Range	100-12800
Video Resolution	1920 x 1080
Camera Type	SLT
Lens Mount	Sony A mount
Format	AVCHD
