Sony STR-DE845 Service Manual

3838
STR-DE845/DE945

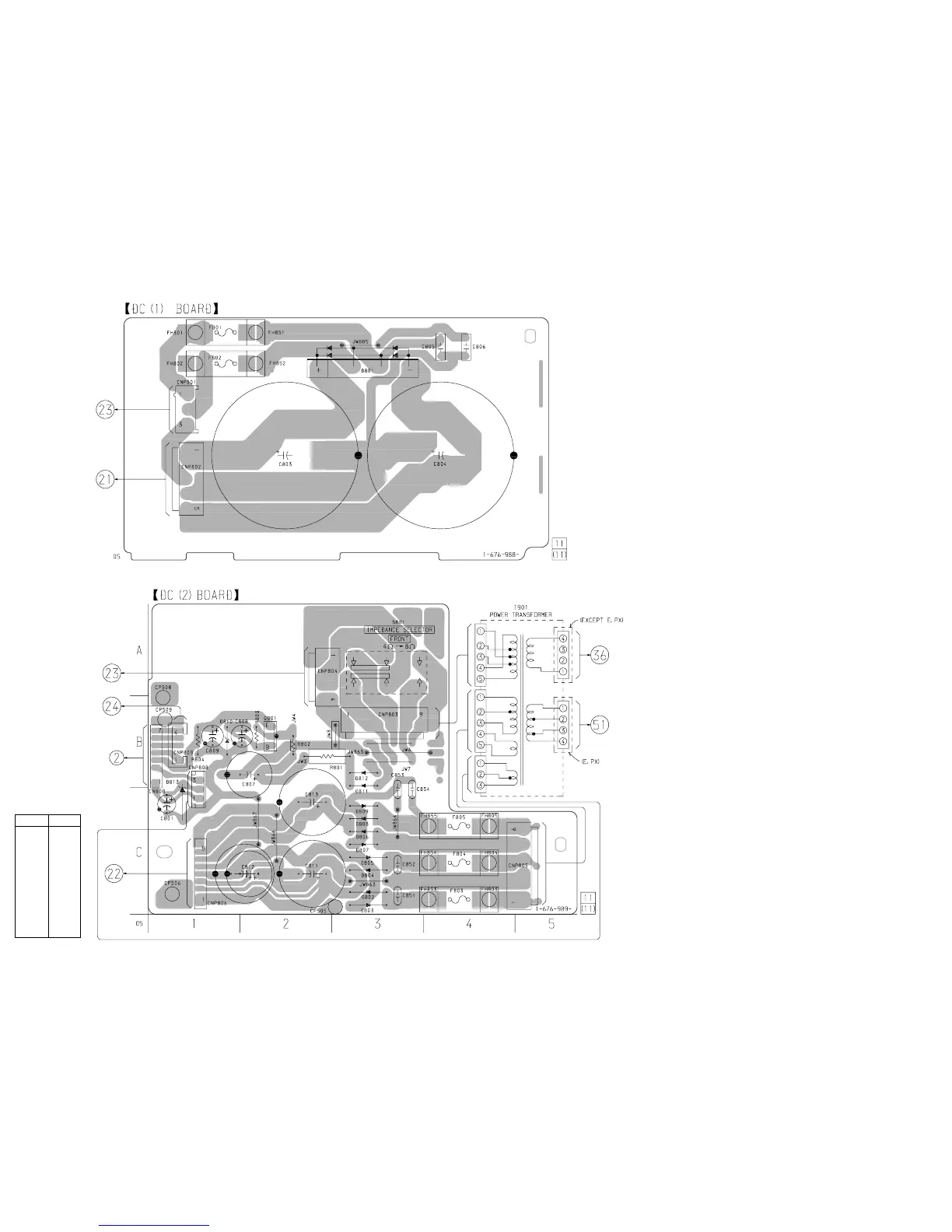

4-28. PRINTED WIRING BOARDS – DC (1)/DC (2) Boards –• See page 14 for Circuit Boards Location.
• Semiconductor
Location
Ref. No. Location
D802 C-3
D803 C-3
D804 C-3
D805 C-3
D806 C-3
D807 C-3
D808 C-3
D809 C-3
D810 B-1
D811 B-3
D812 B-3
D813 C-1
Q801 B-2
TO
DC (2)
BOARD
(Page 30)
TO
DC (1) BOARD
(Page 40)
(Page 19)
(Page 30)
(Page 40)
(Page 34)
