Getting Started

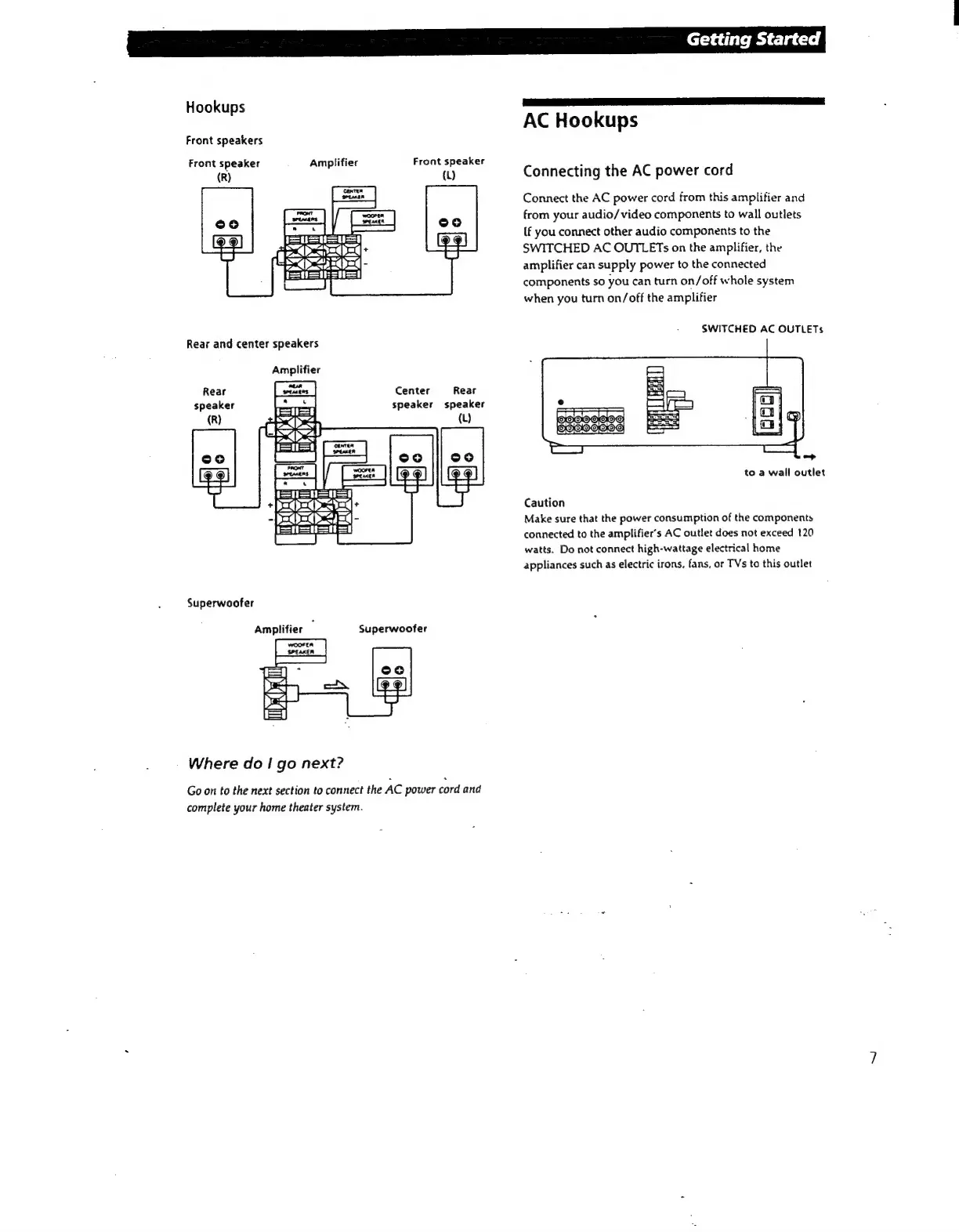

Hookups
AC Hookups
Front speakers
Front
k
Amplifi
Front
speake
.
a“
oo
i
eee
=
(L)
‘
Connecting
the
AC
power
cord
Connect the AC power cord from this amplifier and
from your audio/video components to wall outlets
(f you connect other audio components to the
SWITCHED AC OUTLETs on the amplifier, the
amplifier can supply power to the connected
components so you can turn on/off whole system
when you turn on/off the amplifier
SWITCHED AC OUTLETs
Rear and center speakers
Amplifier
Center Rear
Rear
speaker STEN speaker speaker
(R) =O c)
LKR
CNIS
T i
to a wall outlet
Caution
Make sure that the power consumption of the components
connected to the amplifier’s AC outlet does not exceed 120
watts. Do not connect high-wattage electrical home
appliances such as electric irons, fans, or TVs to this outlet
Superwoofer
Amplifier ; Superwoofer
Where do | go next?
Go on to the next section to connect the AC power cord and
complete your home theater system.
