Sony TA-D505 Service Manual

NOTE:
@ -—-xXX, —X mean standardized parts,
so they may have some differences from
the original one.
The mechanical parts with no reference
number in the exploded views are not
supp | ied.
j tems marked “ * ” are not stocked
since they are seldom required for
routine service. Some delay should be
anticipated when ordering these items.
@ Color [| ndication of Appearance Parts

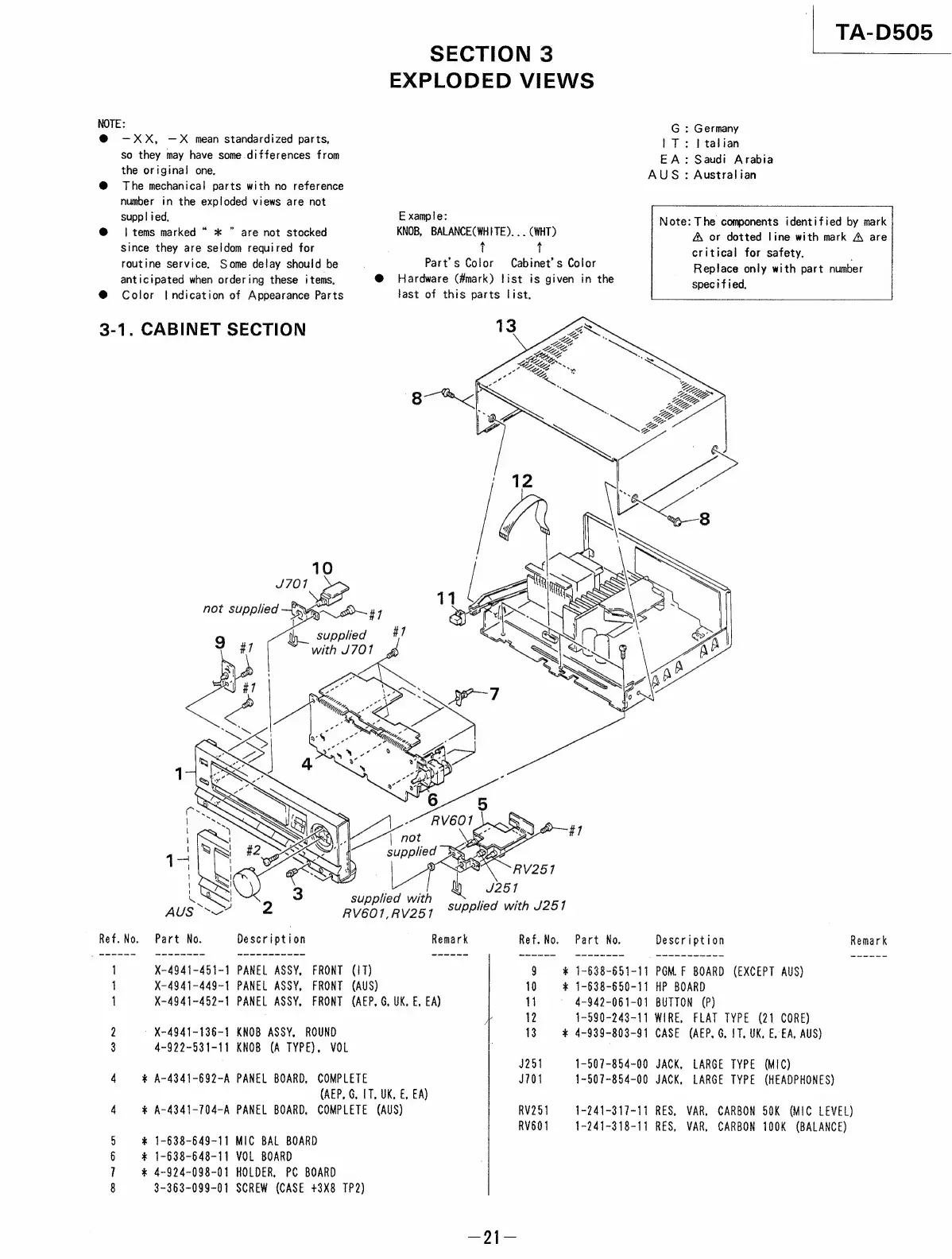

3-1. CABINET SECTION
10
J70
FP
not supplied ~~~ 4
bh supplied
with J707
supplied with
RV607,RV257
SECTION 3
EXPLODED VIEWS
TA-D505
G : Germany
17: | tafian
EA: Saudi Arabia
AUS: Australian
E xample:
KNOB, BALANCECWHITE). .. (WHT)
t t
Part’s Color Cabinet’s Color
@ Hardware (#mark) tist is given in the
last of this parts list.
1
supplied with J251
Ref. No. Part No. Description Remark Ref. No. Part No.
| X-4941-451-1 PANEL ASSY, FRONT (IT) g * 1-638-651-11
1 X-4841-449-1 PANEL ASSY, FRONT (AUS) 10 * 1-638-650-11
1 X-4941-452-1 PANEL ASSY, FRONT (AEP, G, UK, E, EA) 11 ' 4-942-061-01
12 1-590-243-11
2 - X-4941-136-1 KNOB ASSY, ROUND 13 * 4-939-803-91
3 4-922-531-11 KNOB (A TYPE), VOL ;
J251 {-507-854-00
4 * A-4341-692-A PANEL BOARD, COMPLETE J701 1-507-854-00
(AEP, G, [T, UK, £, EA)
4 * A-4341-704-A PANEL BOARD, COMPLETE (AUS) RV251 1-241-317-11
RV601 1-241-318-11
5 * 1-638-649-11 MIC BAL BOARD
6 * 1-638-648-11 VOL BOARD
1 * 4~-924-098-01 HOLDER, PC BOARD
8 3-363-099-01 SCREW (CASE +3X8 TP2)
Note: The components identified by mark
A or dotted line with mark A are
critical for safety.
Replace only with part number
specified,
Description
PGM. F BOARD (EXCEPT AUS)
HP BOARD
BUTTON (P)
WIRE, FLAT TYPE (21 CORE)
CASE (AEP, G, IT, UK, E, EA, AUS)
JACK, LARGE TYPE (MIC)
JACK, LARGE TYPE (HEADPHONES)
RES, VAR, CARBON 50K (MIC LEVEL)
RES, VAR, CARBON 100K (BALANCE)
