Getting Started
3-810-716-11(1)
Unpacking
Check that you received the following items:
• Audio connecting cords (2)

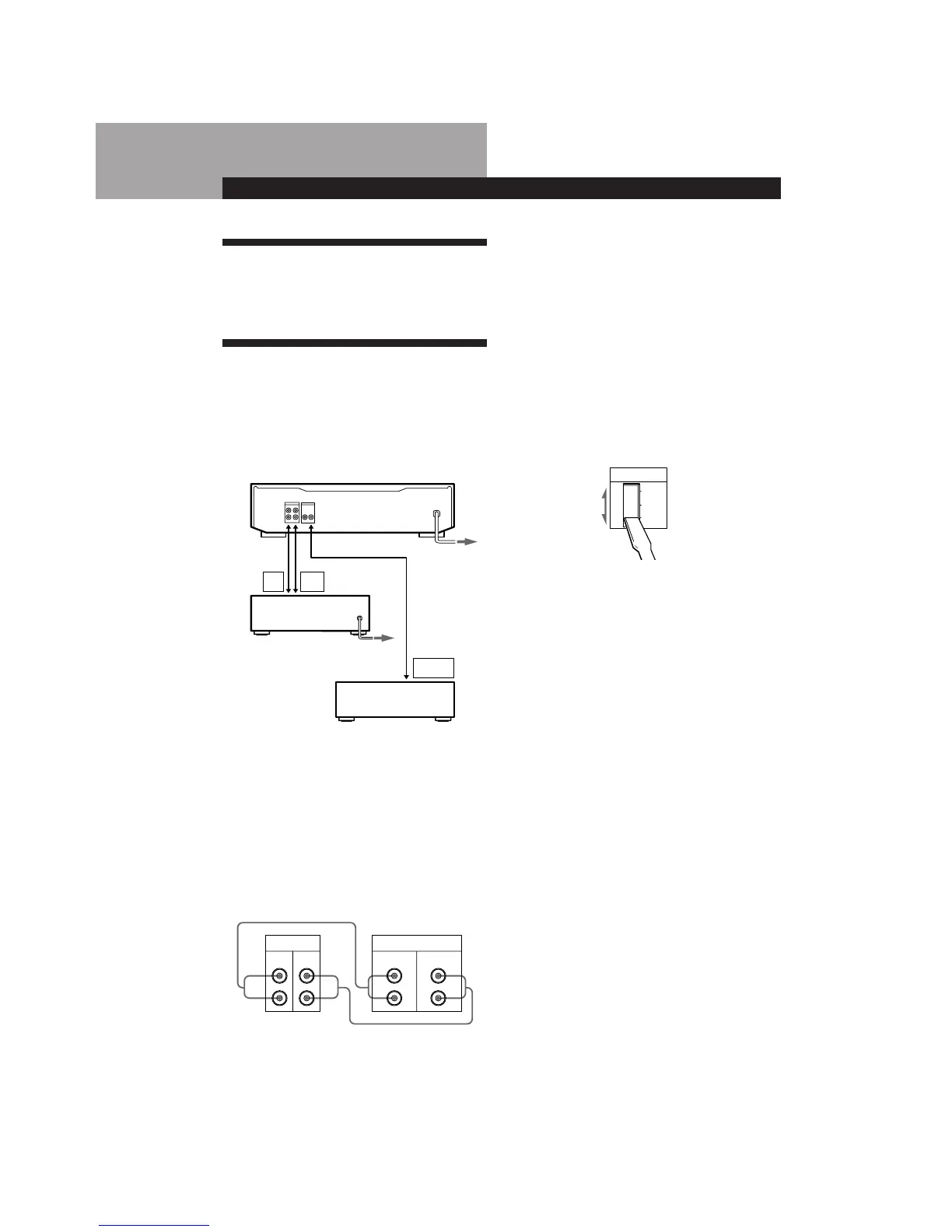

Hooking Up the System
This section describes how to hook up the tape deck to
an amplifier or a CD player equipped with CONTROL
A1 connectors (TC-WE805S/WE705S/WE605S only).
Be sure to turn off the power of each component before
making the connections.
• Connecting the tape deck to a CD player eqipped with
a CONTROL A1 connector (TC-WE805S/WE705S/WE605S
only)
For information on connections through the CONTROL
A1 connectors, refer to the pamphlet included with this
manual.
Setting the voltage selector (only on
models supplied with a voltage selector)
Check that the voltage selector on the rear panel of the
tape deck is set to the local power line voltage. If not,
set the selector to the correct position using a
screwdriver before connecting the AC power cord to
an AC outlet.
Tape deck
ç: Signal flow
Hookups
• Connecting the tape deck to an amplifier
Connect the amplifier to the LINE IN/OUT connectors
using the supplied audio connecting cords.
When connecting an audio connecting cord, be sure to
match the color-coded cord to the appropriate jacks on the
components: Red (right) to Red and White (left) to White.
Be sure to make connections firmly to avoid hum and
noise.
to a
wall outlet
Amplifier
CD player
to an AC
outlet
CONTROL
A1
REC
OUT
TAPE
IN
Ç
ç
Ç
ç
REC OUT IN
LINE
OUTIN
L
R
TAPE
L
R
L
R
Tape deck
Amplifier
ç: Signal flow
220V
240V
120V
VOLTAGE
Connecting the AC power cord
Connect the AC power cord to an AC outlet.
Where do I go next?
Now you’re ready to use your tape deck.
For basic operations, go to pages 5 to 7; for advanced
operations, go to the sections starting from page 8.
To Next Page
