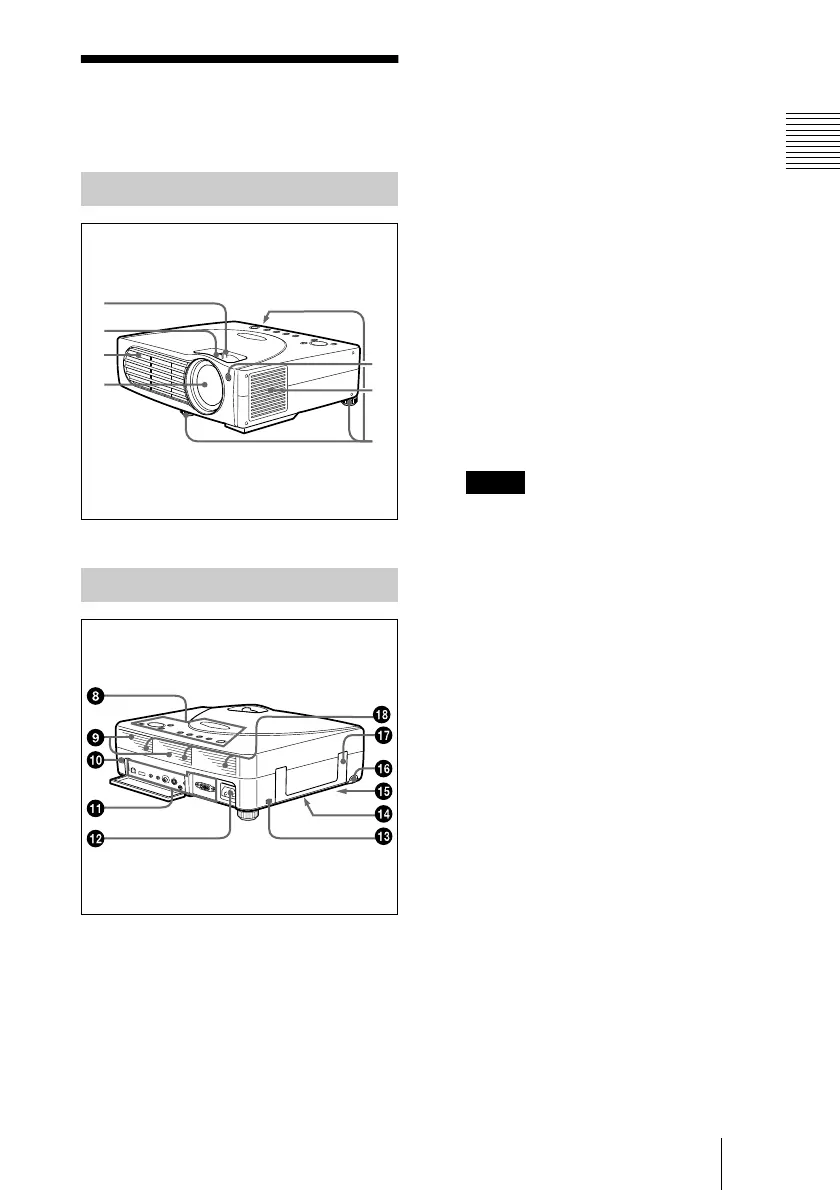

Location and Function of Controls
Overview
Location and
Function of Controls
1 Zoom ring
Adjusts the picture size.
2 Focus ring
Adjusts the picture focus.
3 Ventilation holes (exhaust)
4 Lens
5 Adjuster
When a picture is projected on the
exterior of the screen, adjust the picture
using this adjuster.
For details on how to use the adjusters,
see “How to use the adjuster” on page
10.
6 Ventilation holes (intake)/air
filter cover
• Do not place anything near the
ventilation holes as it may cause internal
heat build-up.
• Do not place your hand or objects near
the ventilation holes as it may cause the
air coming out heat build-up.
• To maintain optimal performance, clean
the air filter every 300 hours.
7 Front remote control detector
(SIRCS receiver)
8 Control panel
For details, see “Control Panel” on
page 11.
9 Speakers
q;
q;q;
q; Rear remote control detector
(SIRCS receiver)
qa
qaqa
qa Connector panel
For details, see “Connector Panel” on
page 12.
qs
qsqs
qs AC IN socket
Connects the supplied AC power cord.
Front/Left Side
Rear/Right Side/Bottom
1
7
6
5
2
3
4
Notes
