WM-DD. I
SECTION 5
jREVISEDI

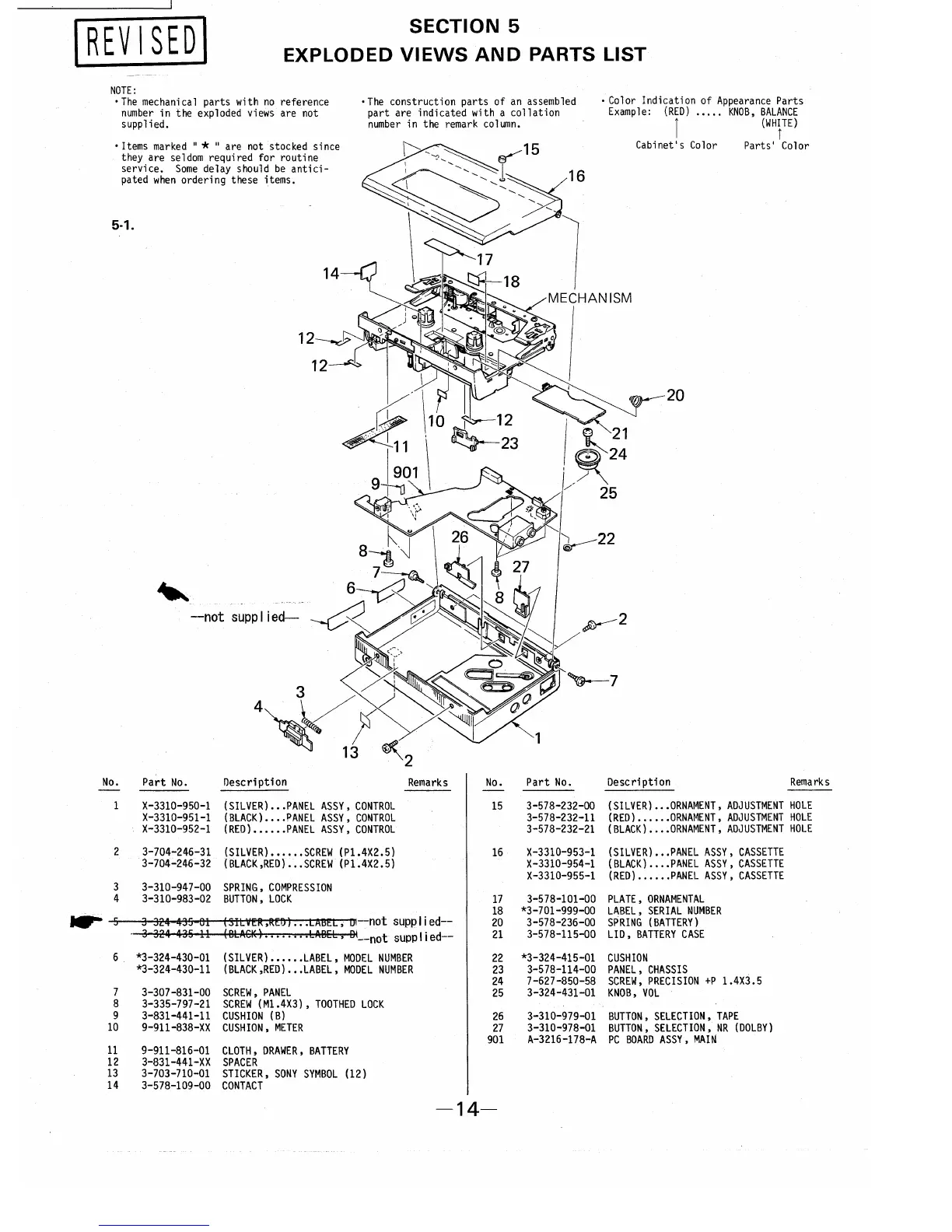

EXPLODED VIEWS AND PARTS LIST
--
NOTE:
·The mechani ca 1 parts with no reference
number in the exploded views are not
supplied.
·Items marked
11
*
11
are not stocked since
they are seldom required for routine
service.
Some delay should be antici-
pated when ordering these items.
5-1.
--not supplied--
•The construction parts of an assembled
part are indicated with a collation
number in the remark column.
16
·Color Indication of Appearance Parts
Example: (RED) ..... KNOB, BALANCE
l (WH~TE)
Cabinet's Color Parts' Color
20
~7
No.
Part No. rJescription
Remarks
No. Part No.
Description Remarks
X-3310-950-1 (SILVER) ••• PANEL ASSY, CONTROL
15
3-578-232-00
(SILVER) ••• ORNA14ENT, ADJUSTMENT HOLE
X-3310-951-1
(BLACK) ••.• PANEL ASSY, CONTROL 3-578-232-11
(RED) ••.••• ORNAMENT, ADJUSTMENT HOLE
X-3310-952-1 (RED) •••••• PANEL ASSY, CONTROL 3-578-232-21
(BLACK) •••• ORNAMENT, ADJUSTMENT HOLE
2
3-704-246-31
(SILVER) •••••• SCREW (P1.4X2.5)
16
X-3310-953-1 (SILVER) ••• PANEL ASSY, CASSETTE
3-704-246-32 (BLACK,RED) ••• SCREW (P1.4X2.5)
X-3310-954-1
(BLACK) •••• PANEL ASSY, CASSETTE
X-3310-955-1
(RED) •••••. PANEL ASSY, CASSETTE
3
3-310-947-00
SPRING, COMPRESSION
4
3-310-983-02 BUTTON, LOCK
17
3-578-101-00
PLATE, ORNAMENTAL
18
*3-701-999-00
LABEL, SERIAL NUMBER
5
a 3~4 495 et
!5ftrE~.~E~) ..• t~B~t~ ~
not supp I i ed--
20
3-578-236-00 SPRING (BATTERY)
3 324 436 11
( BLAGK) •••••••• LP.BEL , Bt __
00
t supp I i ed--
21
3-578-115-00
LID, BATTERY CASE
6
*3-324-430-01 (SILVER) •••••• LABEL, MODEL NUMBER
22
*3-324-415-01 CUSHION
*3-324-430-11 (BLACK,RED) ••• LABEL, MODEL NUMBER
23
3-578-114-0D PANEL, CHASSIS
24
7-627-850-58
SCREW, PRECISION +P 1.4X3.5
7
3-307-831-00 SCREW, PANEL
25
3-324-431-01 KNOB, VOL
8
3-335-797-21
SCREW (M1.4X3), TOOTHED LOCK
9
3-831-441-11
CUSHION (B)
26
3-310-979-01 BUTTON, SELECTION, TAPE
10
9-911-838-XX CUSHION, METER
27
3-310-978-01
BUTTON, SELECTION, NR (DOLBY)
901 A-3216-178-A
PC BOARD ASSY, MAIN
11 9-911-816-01
CLOTH, DRAWER, BATTERY
12
3-831-441-XX SPACER
13
3-703-710-01 STICKER, SONY SYMBOL (12)
14
3-578-109-00 CONTACT
-14-
Exhibit 1010, Page 010
