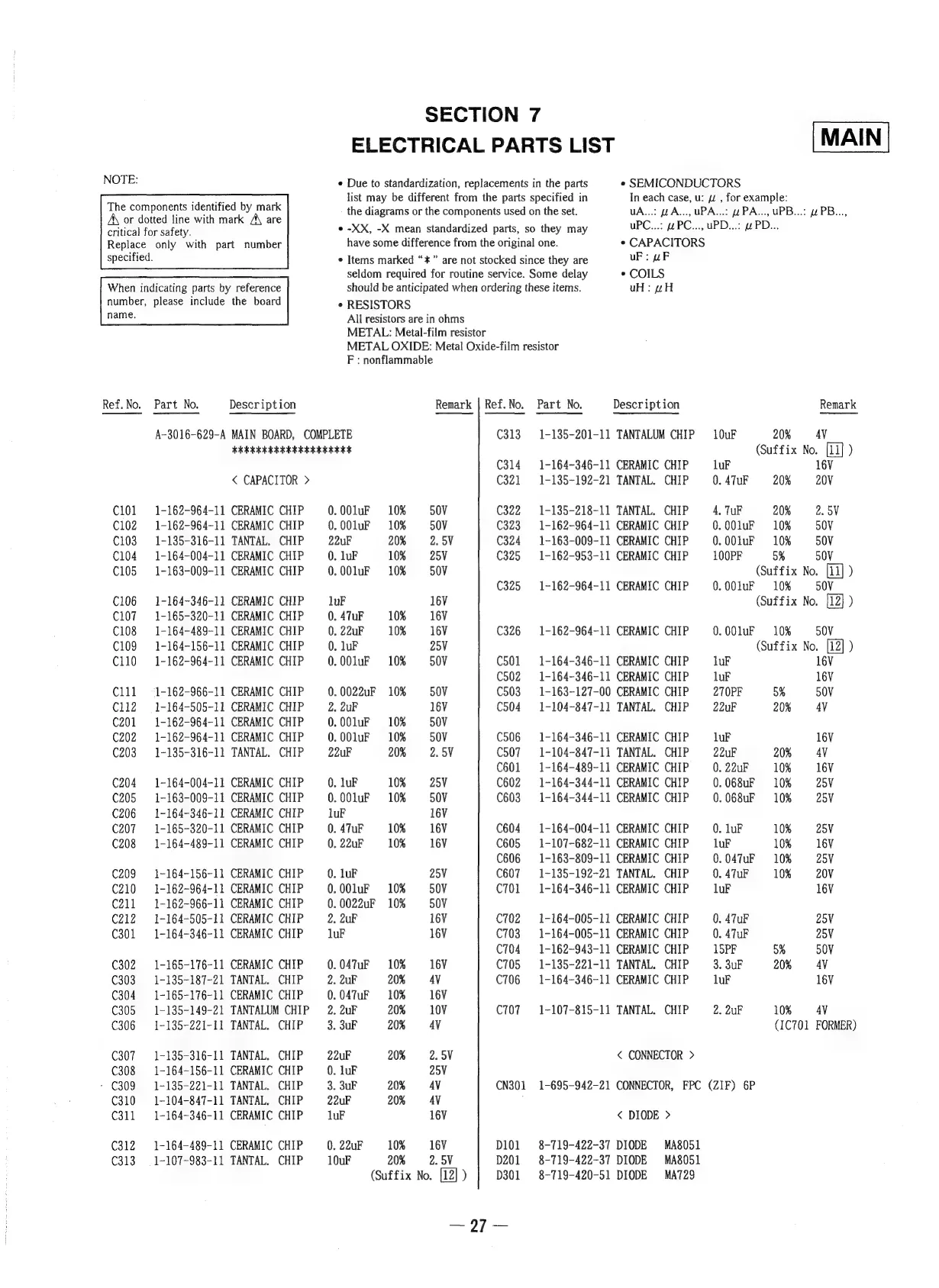

SECTION 7
ELECTRICAL PARTS LIST
NOTE: « Due to standardization, replacements in the parts e SEMICONDUCTORS
aA list may be different from the parts specified in In each case, u: wz , for example:
The components identified by mark the diagrams or the components used on the set. UA...: WA..., UPA...: WPA..., UPB...: @PB...,
A\ or dotted line with mark A\ are ; i
critical for safety. * -XX, -X mean standardized parts, so they may uPC...: 4 PC..., uPD...: “PD...
Replace only with part number have some difference from the original one. ¢ CAPACITORS
specified. ¢ Items marked “*” are not stocked since they are uF: WF
seldom required for routine service. Some delay ° COILS
When indicating parts by reference should be anticipated when ordering these items. uH: “ZH
number, please include the board e RESISTORS
HEM: All resistors are in ohms
METAL: Metal-film resistor
METAL OXIDE: Metal Oxide-film resistor
F : nonflammable
Ref. No. Part No. Description Remark | Ref.No. Part No. Description Remark
A~-3016-629-A MAIN BOARD, COMPLETE C313. 1-135-201-11 TANTALUM CHIP 10uF 20% AY
etott ect res sett oes (Suffix No. )
C314. =1-164-346-11 CERAMIC CHIP luF 16V
< CAPACITOR > C321 1-135-192-21 TANTAL. CHIP 0. 47uF 20% 20V
C101 1-162-964-11 CERAMIC CHIP 0.00luF 10% 50V C322 1-135-218-11 TANTAL. CHIP 4, TuF 20% 2. 5¥
C102 = 1-162-964-11 CERAMIC CHIP 0.001luF 10% 50V C323 =1-162-964-11 CERAMIC CHIP 0.00luF 10% 50V
C103 =1-135-316-11 TANTAL. CHIP 22uF 20% 2. 5V C324 1~163-009-11 CERAMIC CHIP 0.00luF 10% 50V
C104 1-164-004-11 CERAMIC CHIP 0. luF 10% 25V C325 1-162-953-11 CERAMIC CHIP 100PF 5% 50V
C105 1-163-009-11 CERAMIC CHIP 0.001luF 10% 50V (Suffix No. )
C325 1-162-964-11 CERAMIC CHIP 0.00luF 10% 50V
C106 =1-164-346-11 CERAMIC CHIP luF 16V (Suffix No. )
C107 =1-165-320-11 CERAMIC CHIP 0. 47uF 10% 16V
C108 1-164-489-11 CERAMIC CHIP 0. 22uF 10% 16V C326 =1-162-964-11 CERAMIC CHIP 0.00luF 10% 50V
C109 1-164-156-11 CERAMIC CHIP 0. luF 25V (Suffix No. )
C110 =1-162-964-11 CERAMIC CHIP 0.00luF 10% 50V C501 1-164-346-11 CERAMIC CHIP luF 16V
C502 1-164-346-11 CERAMIC CHIP luF 16V
Cll1 =. 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C503 =1-163-127-00 CERAMIC CHIP 2T0PF 5% 50V
C112 = 1-164-505-11 CERAMIC CHIP 2. 2uF 16V C504 1-104-847-11 TANTAL. CHIP 22uF 20% 4V
C201 1-162-964-11 CERAMIC CHIP 0.00luF 10% 50V
C202 1-162-964-11 CERAMIC CHIP 0.00luF 10% 50V C506 1-164-346-11 CERAMIC CHIP luF 16V
C203 =1-135-316-11 TANTAL. CHIP 22uF 20% 2. 5V C507 ~=1-104-847-11 TANTAL. CHIP 22uF 20% AY
C601 1-164-489~-11 CERAMIC CHIP 0. 22uF 10% 16V
C204 1-164-004-11 CERAMIC CHIP 0. luF 10% 25V C602 1-164-344-11 CERAMIC CHIP 0.068uF 10% 25V
C205 1-163-009-11 CERAMIC CHIP 0.001luF 10% 50V C603 1-164-344-11 CERAMIC CHIP 0.068uF 10% 25V
C206 1~-164-346-11 CERAMIC CHIP luF 16V
C207 1-165-320-11 CERAMIC CHIP 0. 47uF 10% 16V C604 1-164-004-11 CERAMIC CHIP 0. luF 10% 25V
C208 1-164-489-11 CERAMIC CHIP 0. 22uF 10% 16V C605 1-107-682-11 CERAMIC CHIP luF 10% 16V
C606 1-163-809-11 CERAMIC CHIP 0.047uF 10% Z5V
C209 =1-164-156-11 CERAMIC CHIP 0. luF Z5V C607 1-135-192-21 TANTAL. CHIP 0. 47uF 10% Z0V
C210 1-162-964-11 CERAMIC CHIP 0.00luF 10% 50V C701 1-164-346-11 CERAMIC CHIP luF 16V
C211 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C212 ~=1-164-505-11 CERAMIC CHIP 2. 2uF 16V C702 1-164-005-11 CERAMIC CHIP 0. 47uF Z5V
C301 1-164-346-11 CERAMIC CHIP luF 16V C703 1-164-005-11 CERAMIC CHIP 0. 47uF 25V
C704. 1-162-943-11 CERAMIC CHIP 15PF 5% 50V
C302 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C705 1-135-221-11 TANTAL. CHIP 3. 3uF 20% AV
C303 = 1-135-187-21 TANTAL. CHIP 2. 2uF 20% 4y C706 1-164-346-11 CERAMIC CHIP luF 16V
C304 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
C305 1-135-149-21 TANTALUM CHIP 2. 2uF 20% 10V C707 1-107-815-11 TANTAL. CHIP 2. 2UF 10% AV
C306 1-135-221-11 TANTAL. CHIP 3. 3uF 20% 4V (IC701 FORMER)
C307 ~=.1-135-316-11 TANTAL. CHIP 22uF 20% 2. 5V < CONNECTOR >
C308 1-164-156-11 CERAMIC CHIP 0. luF 25V
- C309 1-135-221-11 TANTAL. CHIP 3. 3uF 20% 4V CN301 1-695-942-21 CONNECTOR, FPC (ZIF) 6P
C310 1-104-847-11 TANTAL. CHIP 22uF 20% 4V
C311 = 1-164~346-11 CERAMIC CHIP luF 16V < DIODE >
C312 1-164-489-11 CERAMIC CHIP 0. 22uF 10% 16V D101 = =8-719-422-37 DIODE MA8051
C313 = 1-107-983-11 TANTAL. CHIP 10uF 20% 2. 5V D201 8-719-422-37 DIODE MA8051
(Suffix No. [12] ) D301 8-719-420-51 DIODE MA729
