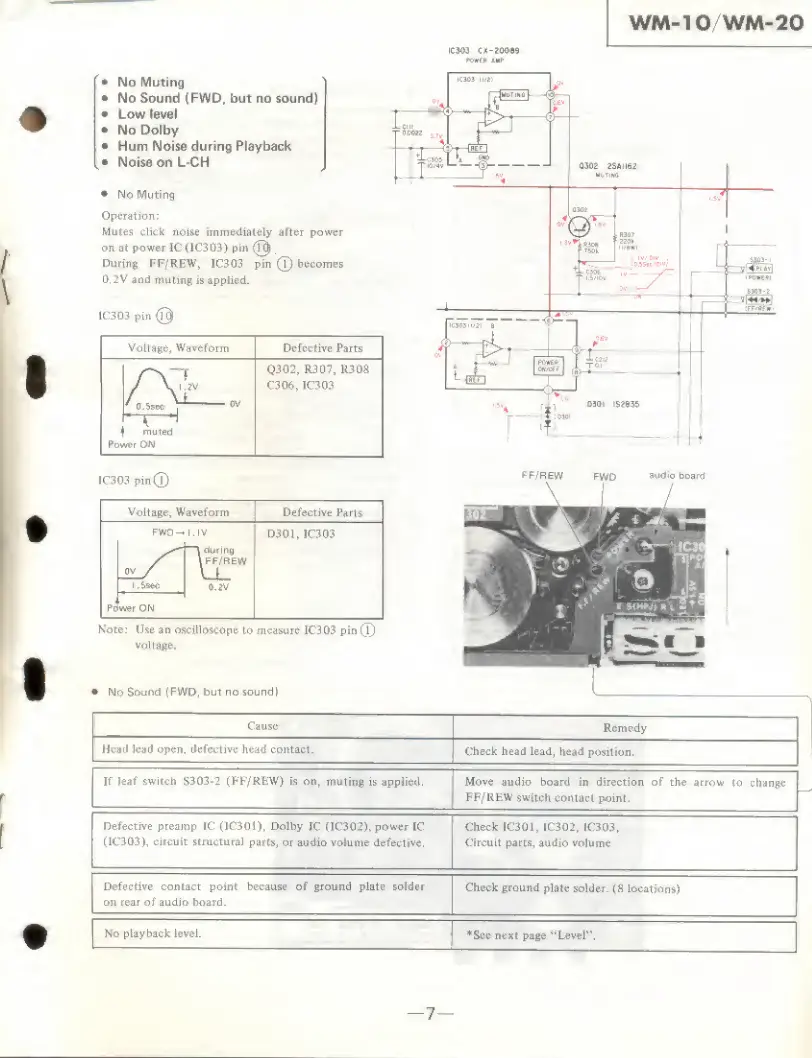

WM-10WM-20
* No Muting
• No Sound (FWD, but no sound)
• Low level
* No Dolby
• Hum Noise during Playback
Noise on L-CH
* No Muting
Operation:
Mutes dick noise immediately after power
on at power IC (1C3Q3) pin (Rj
During FF/REWj 1C303 pin (T) becomes
0.2V and muting is applied.
IC3Q3 pin @
Voltage, Waveform
Defective Parts
1
FV,
H
i muted
vtr ON
Q3G2, R3G7, R3G8
C3G6,ICS03
* No Sound (FWD, but no sound!
Cause
Remedy
Head lead open, defective head contact.
Check head lead, head position.
Jf leaf switch $303-2 {FF/REW) is on, muting is applied.
Move audio board in direction of the arrow to change
FF/REW switch contact point.
Defective preamp LC (IC301), Dolby iC (1C302). power IC
(1C303), circuit structural parts, or audio volume defective.
Check IC301, IC302,1C303,
Circuit parts, audio volume
Defective contact point because of ground piate solder
on rear of audio board.
Check ground plate solder. (8 locations)
No playback Level.
*Sce next page '‘Level".
— 7 —
