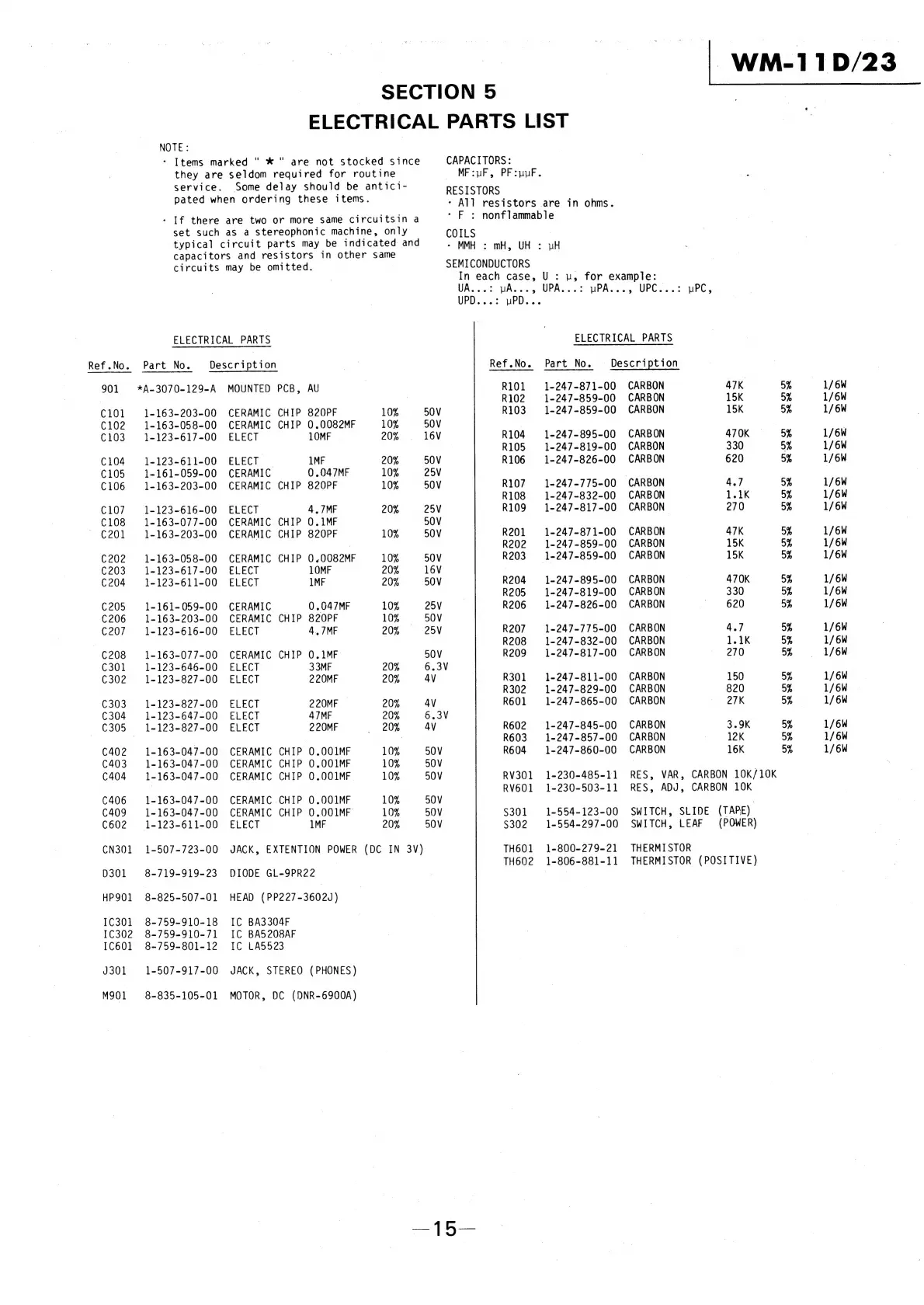

-WM-11D/23
==
SECTION 5
ELECTRICAL PARTS LIST
NOTE:
- Items marked " * " are not stocked since CAPACITORS:
they are seldom required for routine MP:uF, PF:uuF.
service. Some delay should be antici- RESISTORS
pated when ordering these items. - All resistors are in ohms.
- If there are two or more same circuitsin a * F : nonflammable
set such aS a Stereophonic machine, only COILS
typical circuit parts may be indicated and - MMH : mH, UH : uH
capacitors and resistors in other same
circuits may be omitted. SEMICONDUCTORS |
In each case, U: u, for example:
UA cctt iA oe oe UPA Secs UP Aeeey- URCw aa UP Gs
UPD see = DRO ee.
ELECTRICAL PARTS ELECTRICAL PARTS
Ref.No. Part No. Description Ref.No. Part No. Description
901
*A-3070-129-A
MOUNTED
PCB,
AU
R101
1-247-871-00
CARBON
47K
5%
1/6W
R102 =: 1-247-859-00 CARBON 15K 5% 1/6W
C101
1-163-203-00
CERAMIC
CHIP
820PF
10%
50V
R103.
1-247-859-00
CARBON
15K
5%
1/6W
C102 1-163-058-00 CERAMIC CHIP 0.0082MF 10% 50V
C103)
=
1-123-617-00
ELECT
1OMF
20%
16V
R104
=
1-247-895-00
CARBON
470K
5%
1/6W
R105 = 1-247-819-00 CARBON 330 5% 1/6W
C104
=1-123-611-00
ELECT
~
1MF
20%
50V
R106
=1-247-826-00
CARBON
620
5%
1/6W
C105 = 1-161-059-00 CERAMIC 0.047MF 10% 25V .
C106
1-163-203-00
CERAMIC
CHIP
820PF
10%
50V
R107.
—s-_-
1-247-775-00
CARBON
4.7
5%
1/6W
R108 1-247-832-00 CARBON 1.1K 5% 1/6W
C107.
=:
1-123-616-00
ELECT
4.7MF
20%
25V
R109
=
1-247-817-00
CARBON
270
5%
1/6W
C108 1-163-077-00 CERAMIC CHIP 0O.1MF 50V
C201
1-163-203-00
CERAMIC
CHIP
820PF
10%
50V
R201
1-247-871-00
CARBON
47K
5%
1/6W
R202 1-247-859-00 CARBON 15K 5% 1/6W
C202 1-163-058-00 CERAMIC CHIP 0.0082MF 10% 50V R203. -1-247-859-00 CARBON 15K 5% 1/6W
C203 1-123-617-0900 ELECT 1OMF 20% 16V
C204 1-123-611-00 ELECT 1MF 20% 50V R204 = 1-247-895-00 CARBON 470K 5% 1/6W
R205 1-247-819-00 CARBON 330 5% 1/6W
C205
1-161-059-00
CERAMIC
0.047MF
10%
25V
R206
1-247-826-00
CARBON
620
5%
1/
6W
C206 1-163-203-00 CERAMIC CHIP 820PF 10% 50V
C207
=
1-123-616-00
ELECT
4.
7MF
20%
25V
R207.
=:
1-247-775-00
CARBON
4.7
5%
1/6W
R208 1-247-832-00 CARBON 1.1K 5% 1/6W
C208
1-163-077-00
CERAMIC
CHIP
O.1MF
50V
R209
=1-247-817-00
CARBON
270
5%
1/6W
C301 1-123-646-00 ELECT 33MF 20% 6.3V
C302
8
1-123-827-00
ELECT
220MF
20%
4V
R301
1-247-811-00
CARBON
150
5%
1/6W
R302 1-247-829-00 CARBON 820 5% 1/6W
C303 1-123-827-00 ELECT 2 20MF 20% 4y R601 1-247-865-00 CARBON 27K 5% 1/6W
C304 =1-123-647-00 ELECT 47MF 20% 6.3V
C305
1-123-827-00
ELECT
220MF
20%
Av
R602
=:
1-247-845-00
CARBON
3.9K
5%
1/6W
|
R603.
=
=1-247-857-00
CARBON
12K
5%
1/6W
C402
=1-163-047-00
CERAMIC
CHIP
0.001MF
10%
50V
R604
=1-247-860-00
CARBON
16K
5%
1/6W
C403 1-163-047-00 CERAMIC CHIP 0.001MF 10% 50V
C404 1-163-047-00 CERAMIC CHIP 0.001MF 10% 50V RV301 1-230-485-11 RES, VAR, CARBON 10K/10K
.
RV601
1-230-503-11
RES,
ADJ,
CARBON
10K
C406 =1-163-047-00 CERAMIC CHIP 0.001MF 10% 50V
C409 1-163-047-00 CERAMIC CHIP 0.001MF 10% 50V S301 1-554-123-00 SWITCH, SLIDE (TAPE)
C602 1-123-611-00 ELECT 1MF 20% 50V $302 1-554-297-00 SWITCH, LEAF (POWER)
CN301 1-507-723-00 JACK, EXTENTION POWER (DC IN 3V) TH601 1-800-279-21 THERMISTOR
TH602 1-806-881-11 THERMISTOR (POSITIVE)
D301 8-719-919-23 DIODE GL-9PR22
HP901 8-825-507-01 HEAD (PP227-3602J)
IC301 8-759-910-18 IC BA3304F
IC302 8-759-910-71 IC BA5208AF
[C601 8-759-801-12 IC LA5523
J301 1-507-917-00 JACK, STEREO (PHONES)
M901 8-835-105-01 MOTOR, DC (DNR-6900A)
