WM-DDD I

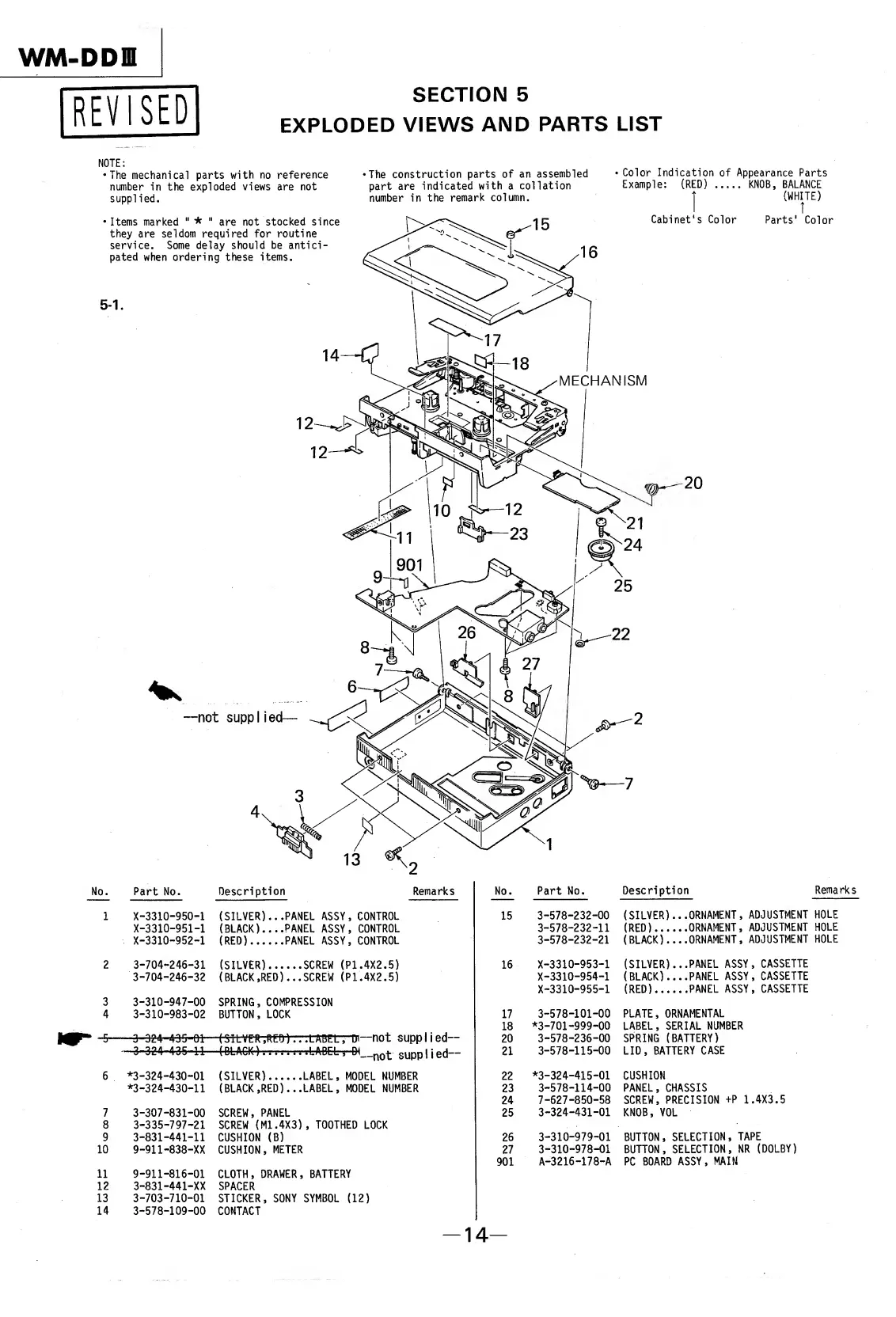

SECTION 5
EXPLODED VIEWS AND PARTS LIST
REVISED
NOTE:
•The mechanical parts with no reference
number in the exploded views are not
supplied.
•The construction parts of an assembled
part are indicated with a collation
number in the remark column.
* Color Indication of Appearance Parts
Example: (RED) . KNOB, BALANCE
t (WHITE)
t
Parts' Color
No. Part No.
Description Remarks
No. Part No.
Description Remarks
1
X-3310-950-1 (SILVER)...PANEL ASSY, CONTROL
15
3-578-232-00
(SILVER)...ORNAMENT, ADJUSTMENT HOLE
X-3310-951-1 (BLACK)....PANEL ASSY, CONTROL
3-578-232-11
(RED).ORNAMENT, ADJUSTMENT HOLE
X-3310-952-1 (RED).PANEL ASSY, CONTROL
3-578-232-21
(BLACK)....ORNAMENT, ADJUSTMENT HOLE
2 3-704-246-31
(SILVER).SCREW (PI.4X2.5)
16
X—3310—953—1
(SILVER)...PANEL ASSY, CASSETTE
3-704-246-32
(BLACK,RED)...SCREW (PI.4X2.5)
X-3310-954-1
(BLACK)....PANEL ASSY, CASSETTE
X-3310-955-1
(RED).PANEL ASSY, CASSETTE
3
3-310-947-00 SPRING, COMPRESSION
4
3-310-983-02
BUTTON, LOCK 17
3-578-101-00
PLATE, ORNAMENTAL
18
*3-701-999-00
LABEL, SERIAL NUMBER
HP* -5"
3 324 435 01
(SILVER,RED) ...LABEL, TH—not supplied—
20
3-578-236-00
SPRING (BATTERY)
.3-324-435-11
(BLACK).LABEL, D(_, not supplied-
21
3-578-115-00 LID, BATTERY CASE
6
*3-324-430-01 (SILVER).LABEL, MODEL NUMBER
22
*3-324-415-01 CUSHION
*3-324-430-11
(BLACK,RED)...LABEL, MODEL NUMBER
23
3-578-114-00 PANEL, CHASSIS
24
7-627-850-58
SCREW, PRECISION +P 1.4X3.5
7
3-307-831-00 SCREW, PANEL
25
3-324-431-01
KNOB, VOL
8
3-335-797-21 SCREW (Ml.4X3), TOOTHED LOCK
9
3-831-441-11 CUSHION (B) 26
3-310-979-01
BUTTON, SELECTION, TAPE
10
9-911-838-XX
CUSHION, METER
27
3-310-978-01
BUTTON, SELECTION, NR (DOLBY)
901
A-3216-178-A PC BOARD ASSY, MAIN
11 9-911-816-01
CLOTH, DRAWER, BATTERY
12
3-831-441-XX
SPACER
13 3-703-710-01
STICKER, SONY SYMBOL (12)
14 3-578-109-00
CONTACT
- 1 4 -
