Sony Xperia S LT26i Troubleshooting Guide

Trouble Shooting Guide Repair Instruction Mechanical/
1257-2931 Rev 6
 Sony Mobile Communications AB – Company Internal
24(57)
Problem Areas: Vibrator

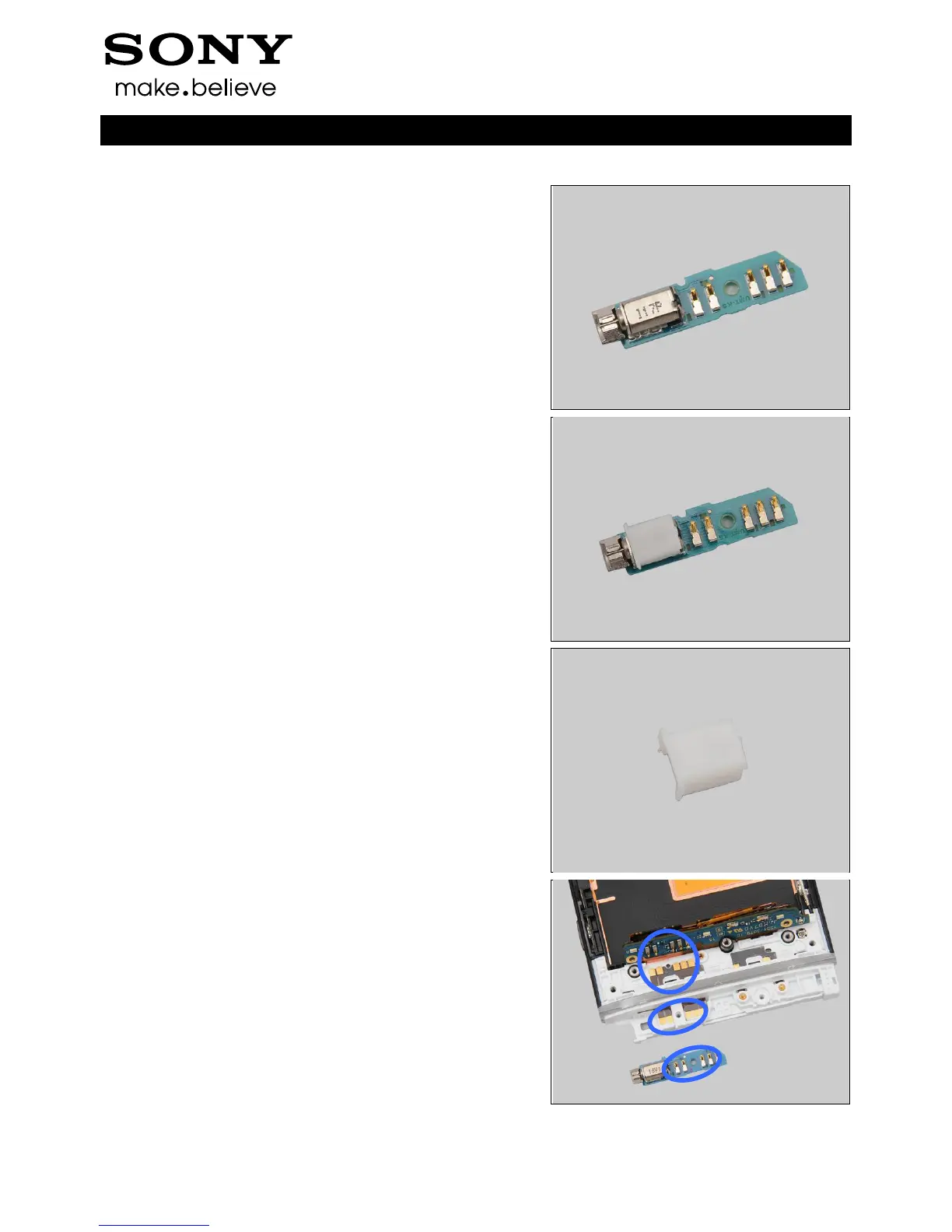

1.9 Vibrator
1.9.1 Vibrator not generating alerts
Check:
Inspect the vibrator and five pins on the PBA Bottom.
Action:
If the vibrator and five pins are damaged – replace the PBA
Bottom.
Check:
Inspect the Carrier Vibrator.
Action:
1. If the Carrier Vibrator is not properly mounted –
remounted it.
2. If the Carrier Vibrator is damaged – replace it.
Check:
Inspect the FPC Main Assy five pins and the ten pads on the
Cover Transparent Assy.
Action:
If dirty – clean them.
